    1FE 1FE 1VOIP FTTH Active Fiber Optic EPON GPON ONU Without Wifi KCO-2210K

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-2411K
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10000pcs/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    1FE 1FE 1VOIP FTTH Active Fiber Optic EPON GPON ONU Without Wifi KCO-2210K

    KCO-2210K 1FE 1FE 1VOIP FTTH Active Fiber Optic EPON GPON ONU Without Wifi


    Introduction:
    GPON ONT/HGU ONU is designed for FTTH and networking service providers. KCO-2210K is based on the Gigabit GPON technology, has a high cost performance, it supports 2 layer, 3 layer or more layer VoIP. It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.


    Characteristics:
    - Main service: 1GE+1FE+1VOIP
    - Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
    - Integrate OMCI and TR-069 remote configuration and maintenance
    - Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
    - Support diagnostic monitoring and remote disabling of fiber optical
    - Compatible with Huawei,ZTE and Fiberhome OLT
    - Support NAT and firewall function
    - POTS integrated circuit test complies GR-909
    - WAN support networking bridge, router and bridge/router mixed mode


    Data Service Functions:
    - Full speed 1G non-blocking switching
    - 2048 MAC address table
    - 16 VLAN
    - Support VLAN QinQ, transparent, tag, translation, trunk, etc.
    - Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
    - Support auto polarity detection of Ethernet ports (AUTO MDIX)
    - Integrated IEEE802.1p QoS with four level priority queues
    - Support IPv4 IGMP snooping and IPv6 MLD snooping
    - Support bridging, router and bridging/router mixed mode


    POTS service function:
    - Support SIP voice protocol
    - Support H.248 voice protocol
    - SIP protocol: ISP provide the port number of the main SIP proxy server and terminal VOIP
    - Value range is 1-65535, system default value is 5060
    - H.248 protocol: ISP provide port number of the spare MGC server and VOIP terminal
    - Value range is 1~65535, system default value is 2944
    - Port ringing current voltage: 50±10VAC,30±10H
    - Port type POTS(VOIP)
    - Support G.711 A-Law/u-Law,G729A/B,G.723.1-5.3/6.3,G.726.etc.voice coding/compressed technology
    - Support auto switch in main interface and standby interface by the software


    Specification


    Technical itemsKCO-2210K
    Fiber port

    1 GPON interface

    SC single-mode/single-fiber

    Downstream rate 2.5Gbps

    Upstream rate 1.25Gbps

    Wavelength

    Tx 1310nm

    Rx 1490nm

    Fiber interfaceSC/PC
    RX sensitivity<-28dBm (1490nm)
    LAN1*10/100/1000Mbps, 1*10/100Mbps adaptive ethernet ports, full/half duplex, RJ45 interface
    POTS1*FXS, RJ11 connector
    DC power12V 1A, external AC-DC power adapter
    Button

    Reset

    Power

    WIFI

    Power≤10W
    Operation

    Working temperature: -5〜+55℃

    Working humidity:10〜90% (non-condensation)

    Storage

    Storage temperature: -30℃〜+60℃

    Storage humidity: 10〜90% (non-condensation)

    Dimension130*107*31mm (length*width*highth)
    Net weight≤0.2Kg

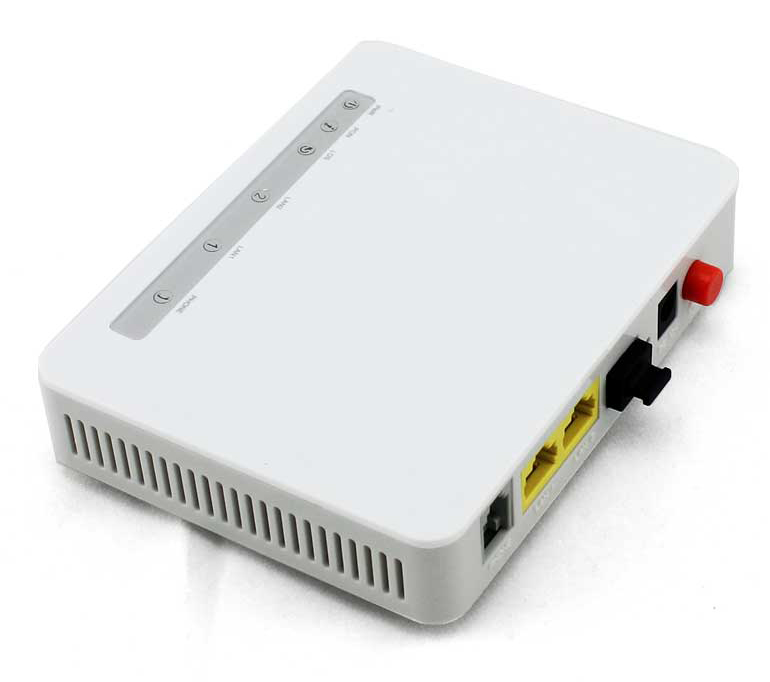

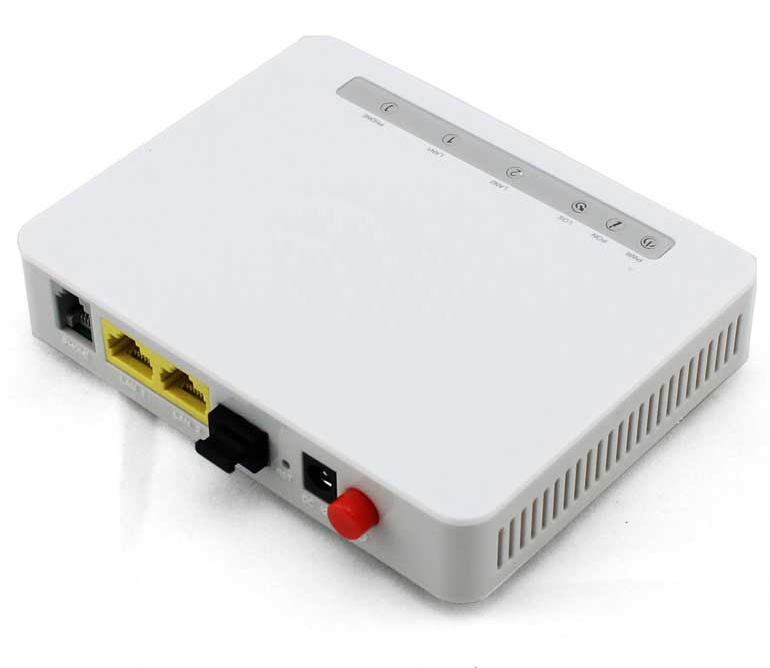

    Product photo:

    GPON Solution:


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
