    1GE Port GPON ONU EPON ONT SFU Active Equipment KCO-G8010U-ZTM

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-G8010U-ZTM
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10000pcs/month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    1GE Port GPON ONU EPON ONT SFU Active Equipment KCO-G8010U-ZTM

    1GE port GPON ONU EPON ONT SFU Active Equipment KCO-G8010U-ZTM


    KCO-G8010U-ZTM is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.


    Features:

    • Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.

    • Integrated OMCI remote configuration and maintenance function.

    • Functions like transceiver diagnostic monitoring, transmitter disable, etc.

    • Fully compatibility with OLT based on Broadlight/Broadcom chipset.

    • Support port monitoring, port mirroring, port rate limiting, port SLA, etc.

    • Support auto polarity detection of Ethernet ports (AUTO MDIX).

    • Support router

    Port features:

    • 1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)

    • 1 10/100/1000M port

    Physical features:

    • Power supply: 12VDC

    • Power consumption: 4W

    • Temperature:
      Working temperature:0~55℃
      Storage temperature: -30~60℃

    • Relative humidity: 10~90% (non-condensing)

    Parameter:

    Technical items

    KCO-G8010U-ZTM

      Optical interface

        1 PON interface, SC single mode/single fiber

          Optical Wavelength

            Tx 1310nm, Rx 1490nm

              Interface connector

                SC/UPC

                  RX sensitivity

                    <-27dBm (1490nm)

                      LAN interface

                        1*10/100Mbps

                        Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

                          Throughput capacity

                            Up to 900Mbps and more

                              DC power supply

                                12V 1.5A, external AC-DC power adapter

                                  Button

                                    Reset, Power

                                      Power consumption

                                        4W

                                          Operating condition

                                            Operating temp: 0 ~ +55℃

                                            Operating humidity: 10~90% (non-condensed)

                                              Storing condition

                                                Storing temp: -30 ~ +60℃

                                                Storing humidity:10~90%(non-condensed)

                                                  Net weight

                                                    ≤0.2Kg

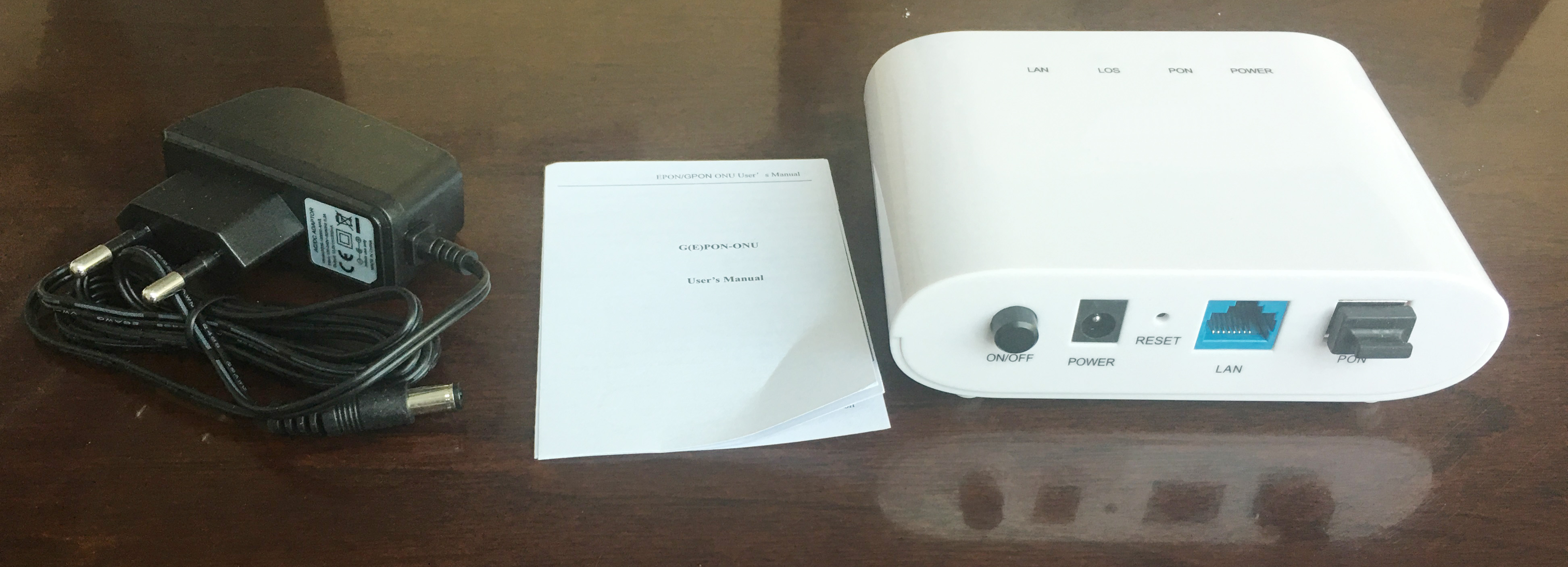

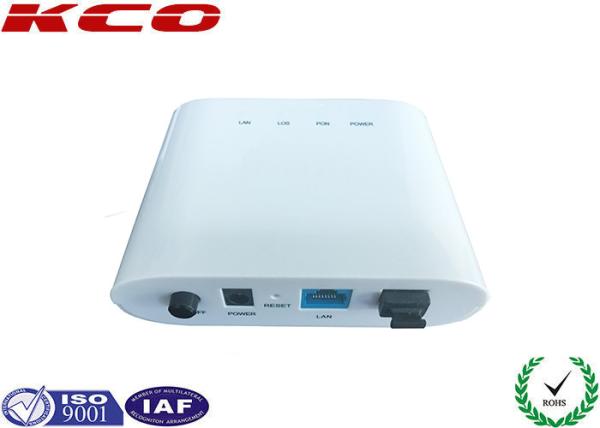

                                                      Product photo:


                                                      Packing:


                                                      GPON ONU Solution:


                                                      Ordering information:

                                                      ModelDescription
                                                      KCO-G8010U-ZTM1 GE interface

                                                      OEM/ODM Service:
                                                      If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

                                                      Packing:
                                                      According to Stardard Export Packing.
                                                      Carton box, wooden box, wooden pallet.

                                                      Shipping:
                                                      - International express such as UPS, TNT, DHL, etc
                                                      - Internatioal air: CA, AA, EA, etc
                                                      - By sea
