    Outdoor Water Proof 96 Cores 2 In 2 Out Fiber Optic Splice Closure Madidi-ZT-Z13

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : Madidi-ZT-Z13
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    Outdoor Water Proof 96 Cores 2 In 2 Out Fiber Optic Splice Closure Madidi-ZT-Z13

    96 Cores 2 In 2 Out Madidi-ZT-Z13Fiber Optic Splice Closure Joint Box Outdoor Water Proof


    Quick detail about horizontal fiber optic splice closure:

    - Name: Inline/ Horizontal fiber optic joint splice enclosure box

    - Part number: Madidi-ZT-Z13

    - Size: 480*160*105mm

    - Weight: about 2.2kg

    - Cable entry port: 4 ports

    - Capacity of fibers: 96 cores

    - Splice tray number: max. 4 trays

    - Material: ABS/ PC/PPR/PP Plastic

    - Sealing structure: Silica gel

    - Cable Diameter: 7.0-22.0mm

    - Working temperature: -40℃ to 65℃


    Applications:
    - Widely used in FTTH access network
    - Telecommunication networks
    - CATV networks
    - Data communications networks
    - Local area networks

    - Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.


    Features:

    - Great corrosion resistance
    - Suitable for any harsh environment
    - Anti-lighting

    - Great water-proof function.

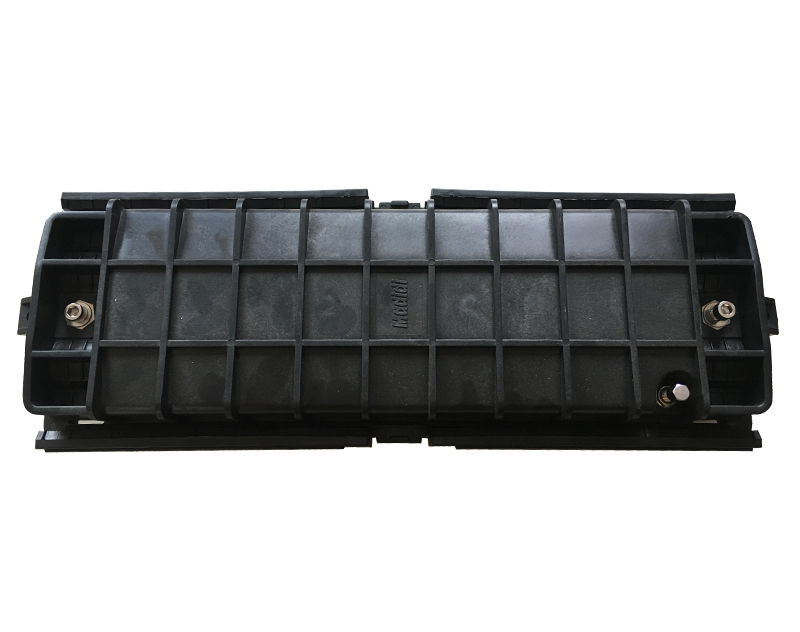

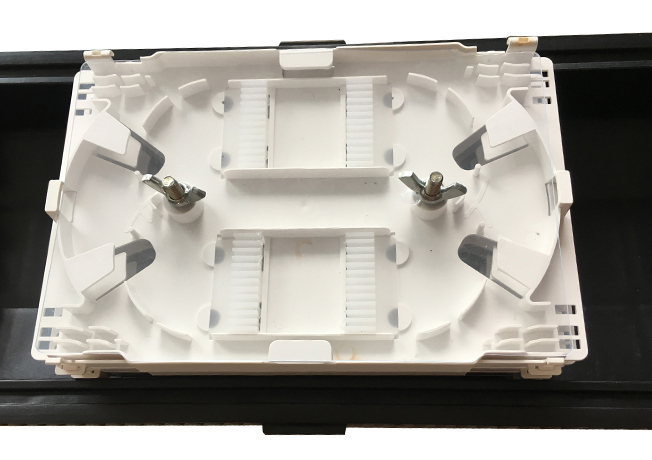

    Product pictures:

    Madidi Series Fiber Optic Splicing Closure Joint Box

    P/NColorCable portSizeWeightSplice Tray NumberCapacity
    Madidi-ZT-Z13Red2 in 2 out480*160*105mm2.2kgMax 4 trays96 cores
    Madidi-ZT-Z14Black2 in 2 out480*160*105mm2.2kgMax 4 trays96 cores
    Madidi-ZT-Z15Black2 in 2 out670*240*200mm5.9kgMax 6 trays144 cores

    Main parts:

    No.NameQuantityUsageRemark
    1Crust1 setProtecting fiber cable splices in whole
    2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
    3Foundation1 setFix cable,reinforced core and tray
    4Seal fitting1 setAir-proof between cover and bottom
    5Port plug4 piecesSealing empty ports
    6Valve1 setPressure measurement,inspection sealingConfigure by user

    Accessories list:

    No.Name of accessoriesQuantityUsageRemarks
    1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
    2Nylon tieFixing fiber with protective coatConfiguration as per capacity
    3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
    4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
    5Hanging hook1 setFor aerial use
    6Label tape1 pieceSign fiber
    7Spanner1 pieceInstall bolts of shell
    8Desiccant1 bagDesiccating air.

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
