    2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-250-UPC-1.0
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 50,000 pcs/ month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank

    2.5Mm UPC PC Optical Fiber Ferrule , Zirconia Ceramic Ferrule Optical Fiber Without Flank


    Quick Detail:

    - Name: Fiber Optic Ferrule

    - Mode: Singlemode, Multimode

    - Material: Ceramic/Zirconia, Metal

    - Ferrule End-face: UPC

    - Type: Standard

    - Outer Diameter: φ2.5mm (FC/SC/ST)

    - With plug: None


    Description:

    - Fiber optic ceramic ferrules are important component of optical connectors and fiber optic patch cord.

    - Low insertion loss

    - Strong interchanging capability

    - UL94V-O and ROHS standard

    - High resistance of corrosive


    Features:

    - Good concentricity and size precision

    - High strength and endurability, good anti-aging performance

    - Low insertion loss and high return loss and pull out performance

    - Wear-resistance

    - Flange: SUS303, Brass, Gild (optional)

    - Approved by RoHS, ISO9001

    - Customized specifications welcomed


    Applications:

    - Applied for fiber connector/pigtail/patch cord

    - Data network communication

    - CATV LAN & WAN

    - Telecommunication

    - Military data network communication

    - Optical fiber access networks

    - Optical fiber CATV

    - Optical fiber test equipements

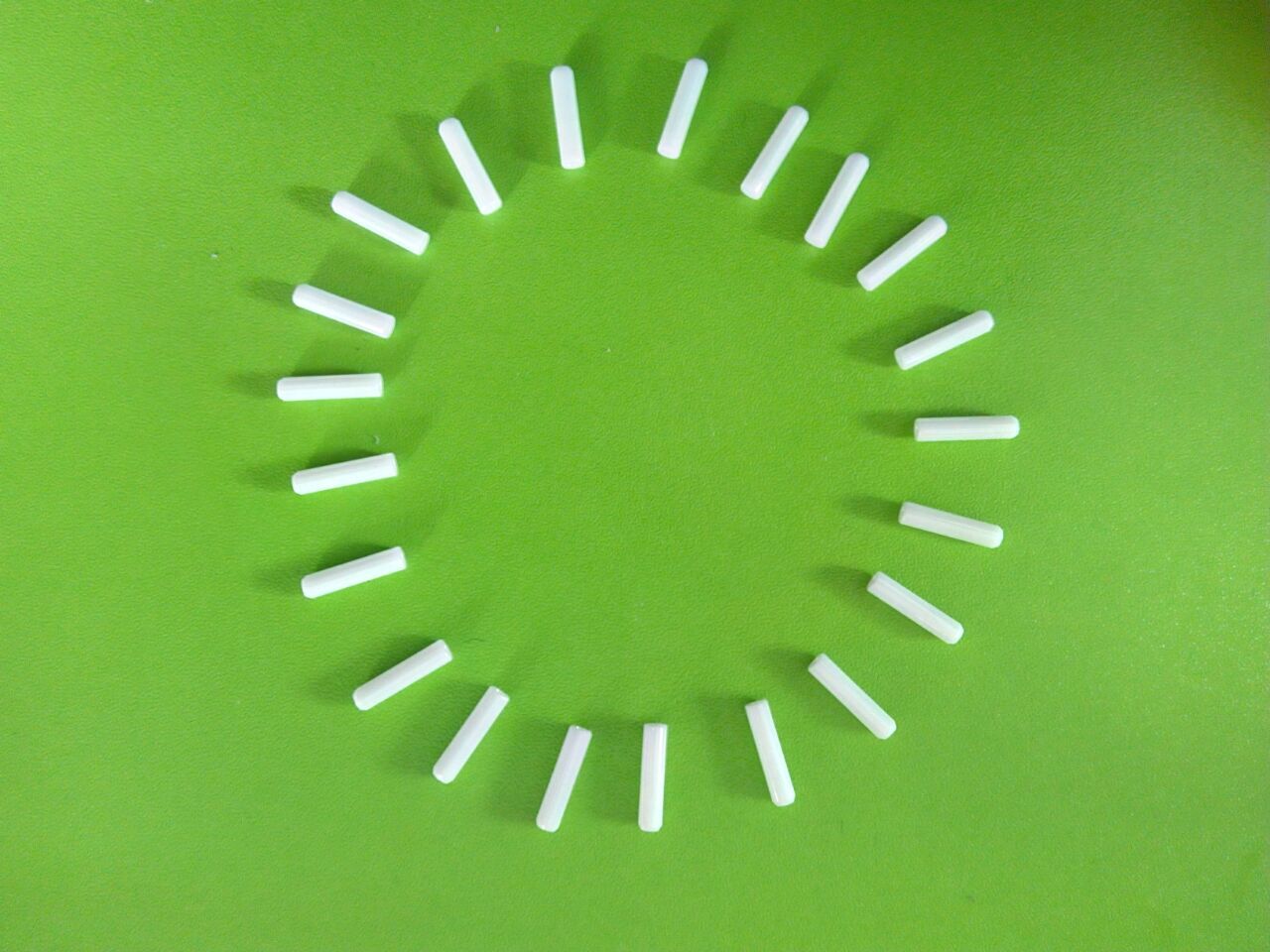

    Product pictures:

    Specifications:

    TypeSC TypeLC TypeMU TypeAPC TypeCustomized
    Outside Diameter(mm)Single Mode2.499±0.00051.249±0.00051.249±0.00052.4990±0.0005φd±0.0005
    Multi Mode2.499±0.0021.249±0.001
    Inside Diameter(mm)Single Moded0+0.001d0+0.001d0+0.001d0+0.001d0+0.001
    Multi Moded0+0.0020.1260+0.004
    Concentricity(μm)Single Mode≤1.0≤1.0≤1.0≤1.0user-defined
    Multi Mode≤4.0≤4.0
    Length(mm)Single Mode10.5±0.056.40+0.16.5±0.0510.5±0.05L±0.05

    ParameterUnitFC,LC,SCST,MUMTRJ,MPO
    SMMMSMMMSMMM
    PCUPCAPCPCPCUPCPCPCUPCPC
    Insertion loss(typical)dB≤0.3≤0.2≤0.3≤0.2≤0.3≤0.2≤0.2≤0.3≤0.2≤0.2
    Return lossdB≥45≥50≥60≥30≥45≥50≥30≥45≥50≥35
    Operating wavelengthnm1310,15101310,15101310,1510
    ExchangeabilitydB≤0.2≤0.2≤0.2
    VibrationdB≤0.2≤0.2≤0.2
    Operating temperature°C-40~+75-40~+75-40~+75
    Storage temperature°C-45~+85-45~+85-45~+85
    Cable diametermmΦ3.0,Φ2.0,Φ0.9Φ3.0,Φ2.0,Φ0.9Φ3.0,Φ2.0,Φ0.9

    Order information:

    ModeTypeIDFlange
    S: Single modeC: (SC, FC, ST, E2000)/PC5: 125umF: With flange
    M: Multi-modeL: LC/PC6: 126umN:No flange
    D: DIN/PC7: 127um
    U: MU/PC
    CA:(SC, FC, E2000)/APC
    DA: DIN/APC
    CAS: (SC, FC)/APC Step type

    OEM/ODM Service:


    We can according to your request to produce all type of standard fiber optic ferrule and non standard fiber optic ferrule. We use high quality of raw material to warranty that each ferrule can meet your most stringent requirements. Please call us or send e-mail to us with your specification to discuss with us.
