    FTTA 3G 4G Telecom Base Station Fiber Optic Patch Cord 7.0mm LSZH

    Ask Lasest Price
    Brand Name : KCO
    Model Number : ODVA
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

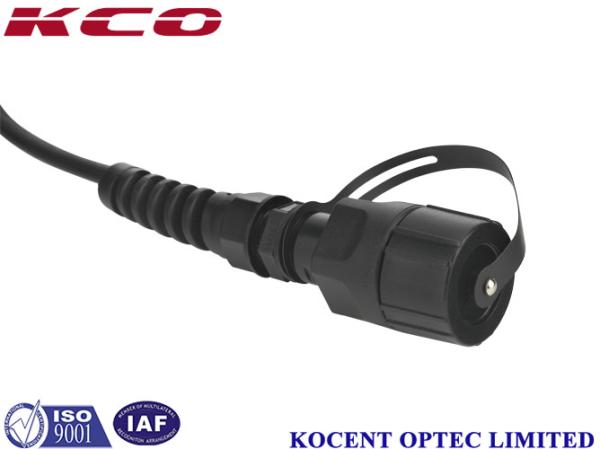

    FTTA 3G 4G Telecom Base Station Fiber Optic Patch Cord 7.0mm LSZH

    FTTA 3G 4G Telecom Base Station

    ODVA Outdoor Field Operations Fiber Optic Patch Cord 7.0mm LSZH

    Description:

    - ODVA Connectors are designed to exceed the requirements of ODVA.

    - The connectors meet IP68 environmental sealing ratings and are the ideal choice for a low cost.

    - It is easy to use solution in Industrial, Fiber to the Antenna (FTTa), or any other harsh environmental applications.

    - This outdoor waterproof connector attaches to adapter on panel of RRH.

    - The common LC, SC, MPO connector inside allows easier testing and cleaning.

    - There are two types of connector plugs available: threaded and easy-connect bayonet.

    - We are offering includes SC/Simplex (1-fiber), LC/Duplex (2-fiber) and MPO & MPO/APC male or female (1 to 12-fibers).

    KOCENT OPTEC LIMITED supply OEM and ODM service for all types of fiber optic patch cord.

    Special in outdoor field operations fiber optic patch cord such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4 patch cord.

    We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, LTE, BBU, RRU, RRH base station.

    With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.


    Applications:

    The ODVA connectors are specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which require rugged connector and cable assemblies suitable for outdoor use.


    Specifications:

    ParametersStandard Fiber Cable Assemblies
    ConnectorSide A: ODVA connector
    Side B: ODVA connector, DLC(duplex LC), SC, ST, FC, MPO/MTP,...
    Fiber count2 cores, 4 cores and more
    Fiber TypeSM (G.652D/G.657A)
    MM (OM1/OM2/OM3)
    Jacket MaterialsLSZH/ OFNR/ PVC/ PE
    Cable diameter4.8mm, 7.0mm
    Testing WavelengthsSM: 1310±30/1550±30nm
    MM: 850±30/1300±30nm
    Insertion Loss(dB)
    TIA/EIA-455-107
    ≤ 0.3dB(PC/UPC/APC)
    ≤ 0.3dB(UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥45dB (PC/UPC)
    ≥55dB (APC)
    ≥35dB (UPC)
    Exchange ability≤ 0.2dB
    Cable AssembliesPigtail/ Simplex/ Duplex/ Fan-out Patch cord
    Operating Temperature-14℃~+ 85℃
    Storage Temperature-40℃~+85℃


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
