    MPO MTP Fiber Optic Polishing Equipment

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-6600
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10,000 set/ month
    Delivery Time : 5~8 days after get payment
    • Product Details
    • Company Profile

    MPO MTP Fiber Optic Polishing Equipment

    KCO-6600 Center Pressure Intelligent MPO MTP Fiber Optic Polishing Machine

    Same As Domaille Senko


    KCO-6600 Center Pressure Intelligent MPO MTP Fiber Optic Polishing Machine is newest auto and intelligent machine, installed auto-adjust system,polishing procedure is controlled by PLC, and installable 10 kinds of polishing artwork, so can choose different artwork according different polishing products

    The machine use together with our MPO/MTP Jig, 3D pass rate can be reached at 100%.


    Characteristics:

    - Automatic Pressure Adjustment to account for a varying number of connectors inserted in the polishingfixture

    - Operator Step-by-Step Prompts for film, pad type, and lubricant

    - Force, Speed, and Time Displays on the touch screen panel for feedback of process step specific settings

    - Programmable pressure and speed ramp for slow starting polishing cycle

    - Programmable film change counter

    - Pneumatically-Controlled Polishing Pressure provides consistent polishing force regardless of ferrule length

    - Pivoting Overarm provides easy cleaning of fixtures between steps and quick change of fixtures

    - Cable Management System routes cables away from the polishing activity

    - Standard 5" Platen with 8" Option provides flexibility in fixture capacity and polishing film size

    - Drip Tray & Spash Guard swivels in for quick and easy cleaning of fixtures between steps

    - Robust Design uses the highest-quality materials machined to nano tolerances

    - Quick-Change Fixtures support all industry standard connector types, both single and multiple fiber


    KOCENT OPTEC LIMITED can help you establish a new of common patch cord fiber optic production line (such as: fiber cable automatic cutting machine, polishing machine, curing oven, ennface microscope, IL&RL tester, Laser pen, ....) also can help you establish MPO/MTP patch cord production line, and also PLC splitter production line.

    Please contact with our sales to get most professional about it.


    Machine photos:


    Polishing jig:


    MPO end-face microscope:


    List of machine:

    ItemMachine/Part name
    1Central pressure programmable polishing machine
    MPO/PC -24 polishing jig
    MPO/APC-24 polishing jig
    2Corner pressure programmable polishing machine
    MPO/PC-24 polishing jig
    MPO/APC-24 polishing jig
    3Curing oven ( for MPO)
    4Microscope (for MPO)
    512 ways Automatic MPO/MTP continuity tester
    6MPO/MTP 3D interferometer
    7MPO 12 ways IL&RL tester
    8MPO polishing jig clean machine
    9MPO Pneumatic pressure crimping machine
    19Polishing pad
    11MPO ribbon jig
    12Polishing paper ( 30U, 9U)
    12.1Polishing paper ( 1U)

    Otherwise of the machine, we also can supply all of consumble items that need to use when producing the patch cord, such as fiber optic ferrule, fiber optic cable, fiber optic connector part, polishing paper, ADS paper, Curing glue, ...

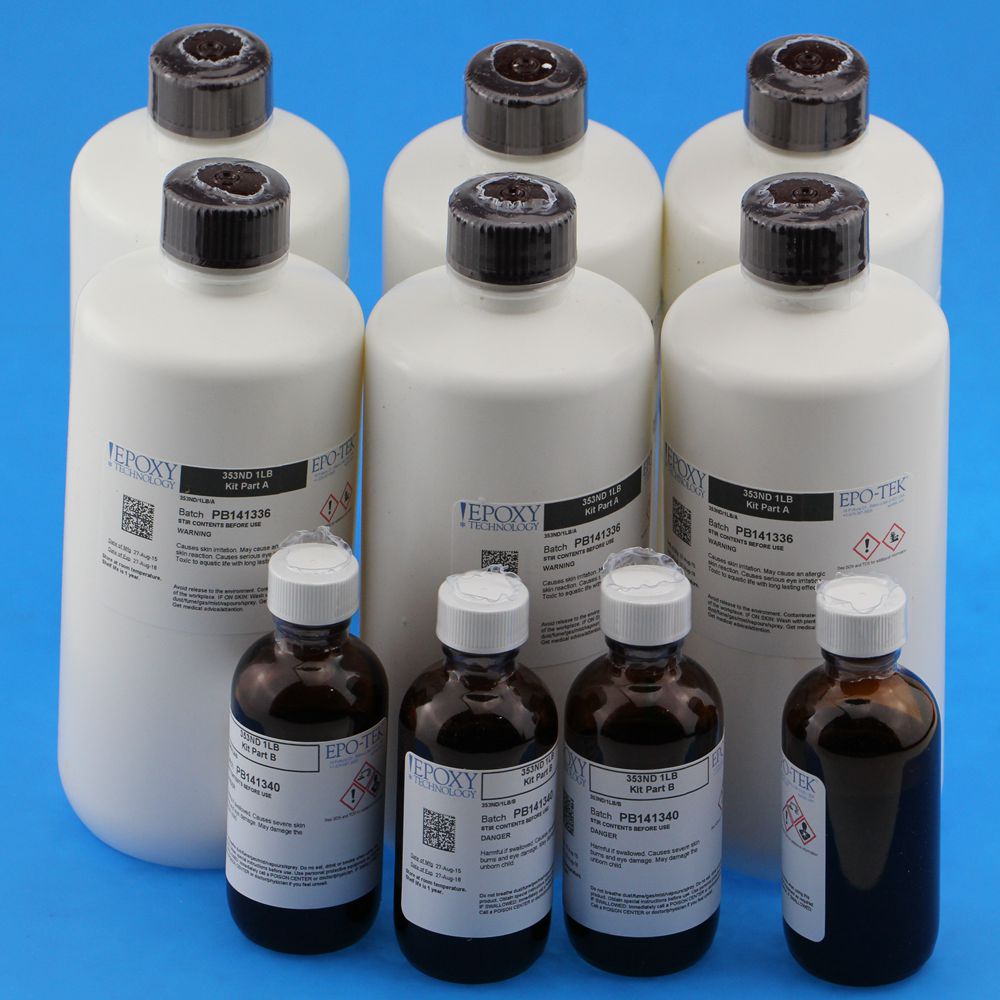

    America 353ND fiber optic curing glue:


    Taiwan 353ND fiber optic curing glue: ​


    Polishing pad:

    Polishing film ( polishing paper )


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
