Duplex PVC LSZH 1.0m Fiber Optic Patch Cord MM LC/UPC-FC/UPC 2.0mm
OM3
Kocent Optec Limited provides OEM service for all kinds of fiber
optic patch cables, including common type of FC, LC, SC, ST, and
MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, SC Uniboot.
Specially in LC uniboot patch cable.
We also provides a high optical performance Duplex LC/UPC-FC/UPC
optical fiber patch cords which save half of the operation spaces
required.
Duplex LC/UPC-FC/UPC patch cords are now used as the preferred option of fiber patch
cords for data center high density connectivity.
A patch cord is a fiber optic cable used to attach one device to
another for signal routing.Normally, there are 4 types connector:
FC/SC/LC/ST.. 3types ferrule: PC, UPC, APC…
LC patch cord is a fiber optic cable used to attach one device to
another for signal routing. LC stands for Lucent Connector. It is a
small form-factor fiber optic connector, half the size of the SC.

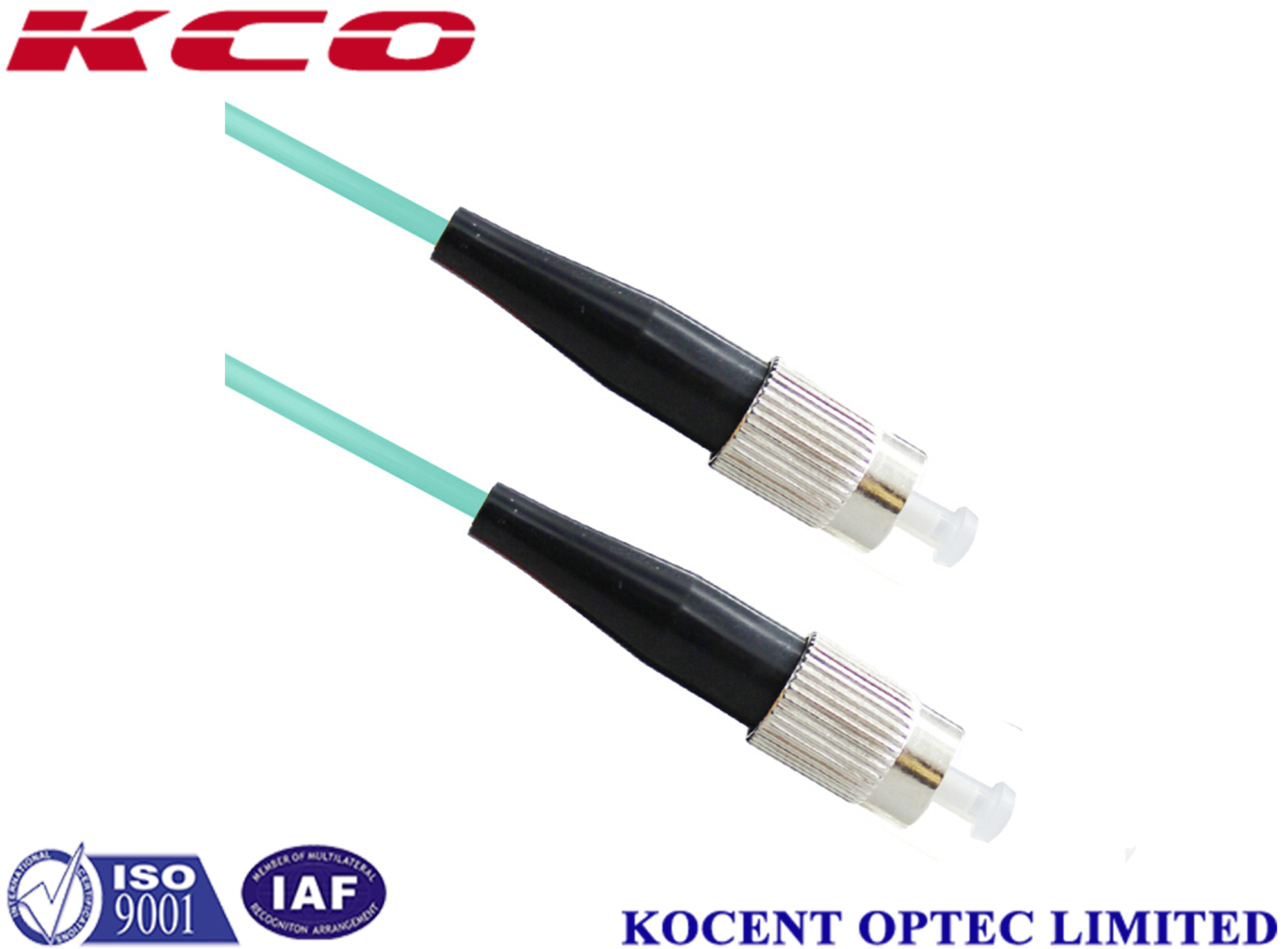

FC stands for Fixed Connection. It is fixed by way of threaded
barrel housing. FC connectors are generally constructed with a
metal housing and are nickel-plated.
Fiber Optical Patch Cord Summary:
A fiber optic patch cord is a fiber optic cable capped at either
end with connectors that allow it to be rapidly and conveniently
connected to CATV, an optical switch or other telecommunication
equipment. Its thick layer of protection is used to connect the
optical transmitter, receiver and the terminal box.
Patch cords are important and effective in networking. They provide
interconnection between the optical transmission equipment and the
patch panel in the wiring closet.
About Fiber optic connector , the ITU call it as a kind of passive
light component which can connect two or more fiber lines stably
but not always. It can make a close connection for fiber cable and
make a wonderful transmission for the light energy .
Key Features:
1 High return loss, low insertion loss
2 Good exchangeability & durability
3 High reliability and stability
4 Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard
5 Multimode(MM) based on 50/62.5-125um fibre
6 Ceramic Ferrule
Application :
1 Fiber optic communication network
2 Fiber broadband access network
3 CATV
4 Fiber instruments
5 Metro and Local Area Networks
6 Spectral measurement
7 Data processing networks
Ordering options:
1 Connector type: FC, SC, LC, ST
2 Ferrule End-face: PC, UPC, APC
3 Core Type: Multi Mode 50/125
4 Fiber Core: Duplex
5 Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
6 Cable Length: 1, 2, 3 meter or customized
7 Cable type: PVC, LSZH
Specification:
| Mode | SM | MM |
| Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.1dB |
| Durability | ≤0.2dB (1000 times mating) |
| Tensile Strengh | > 10kg |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
