PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm

KOCENT OPTEC LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm from wholesalers

    Buy cheap PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm from wholesalers
    • Buy cheap PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm from wholesalers
    • Buy cheap PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm from wholesalers
    • Buy cheap PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm from wholesalers

    PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm

    Ask Lasest Price
    Brand Name : KCO
    Model Number : SC-SC-UPC-SM-2.0mm-2.0m
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 900,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    PVC/LSZH Fiber Optic Cable Patch Cord SM 9/125 SC/UPC-SC/UPC 2.0mm

    Fiber Optic Patch Cord SM SC/UPC-SC/UPC 2.0mm PVC/LSZH 2.0m


    Quick informations:
    - Connector: SC/UPC - SC/UPC

    - Mode: SM 9/125
    - Diameter: 2.0mm
    - Length: 2.0m
    - IL: 0.2dB
    - RL: 55dB

    - Cover: PVC/LSZH

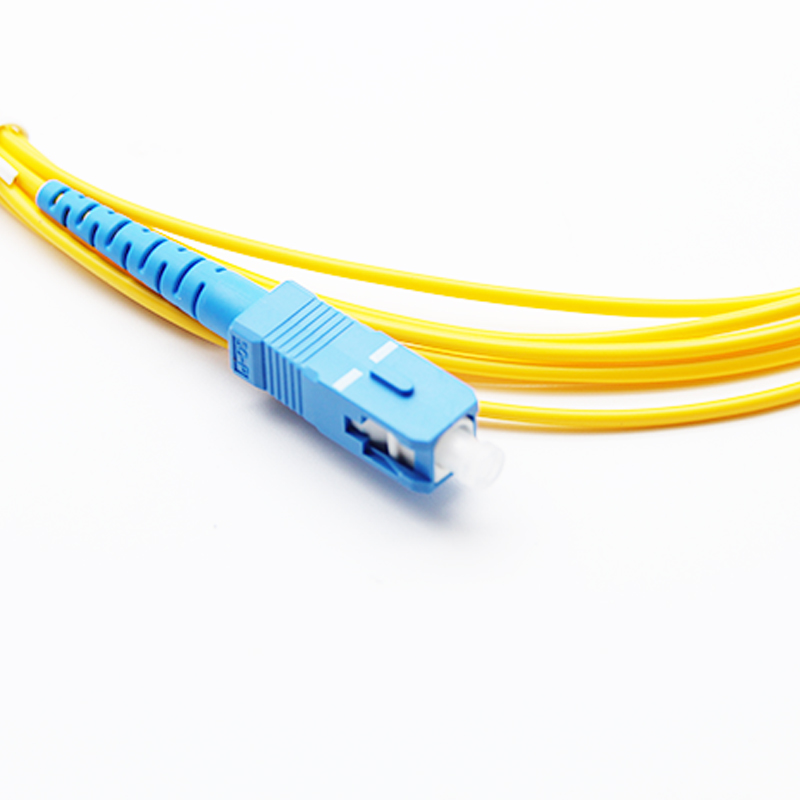

    Product pictures:



    Applications:
    - Telecommunication networks
    - Computer fiber networks and fiber test equipment
    - Communication rooms
    - FTTH (Fiber to The Home)
    - LAN (Local Area Network)
    - FOS (fiber optic sensor)
    - Fiber Optic Communication System
    - Optical fiber connected and transmitted equipment

    Characteristics​:
    - Low insertion loss;
    - High return loss;
    - Good repeatability;
    - Good interchange;
    - Excellent environmental adaptability.

    Specifications:

    TypeStandard,Master
    Connector StyleLC, SC
    Fiber Type9/125 SMF-28 or equivalent (Single mode)
    Cable TypeSimplex, Duplex (Zip cord)
Φ3.0mm,
    Φ2.0mm

    Φ0.9mm
    buffered fiber
    Cable Cover materialPVC
    LSZH
    Armored
    Water-proof
    FTTH
    Outdoor
    Return Loss
(For Single mode)≤ 0.15dB (For Single mode Master)
    ≤ 0.30dB (For Single mode Standard)

    ≤ 0.30dB (For Multi mode)

    Tested by JDS RM 3750
    UPC ≥ 50dB

    SPC ≥ 55dB

    APC ≥ 60dB (typ.65dB)

    Tested by JDS RM3750
    Repeatability±0.1dB
    Operating Temperature-40°C to 85°C

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express: UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
