    DIN Duplex Fiber Optic Adapter Single Mode SM DX Metallic Hybrid Adaptor

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : DIN-SM-DX
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    DIN Duplex Fiber Optic Adapter Single Mode SM DX Metallic Hybrid Adaptor

    DIN Duplex Fiber Optic Adapter Single Mode SM DX Metallic Hybrid Adaptor

    Quick Information:
    - Name: DIN/UPC Single Mode Duplex Fiber Optic Adapter
    - Fiber type: Single mode (SM) 9/125
    - Signal way: duplex (2 ways)
    - Material: metal

    Advantage of the fiber optic adapters:
    - Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.
    - We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
    - These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
    - Low Insertion Loss means there is little reduction in light intensity along the transmission router.
    - High Reliability
    - Also compliant with the IEC and ROSH standards

    Descriptions:
    - Fiber Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
    - DIN fiber optic adapters which come with zirconia sleeves and threaded size.
    - They are available in both single mode type and multimode types.
    - DIN 47256 (LSA) feature a single unit body with spring-loaded free floating zirconia ferrule.
    - This unique connector offers superior performance in a compact DIN47256 compatible design suitable for various applications.
    - The DIN adapters are consistent performance and durability.

    Size:


    Applications:
    - Testing instruments
    - Connection between devices
    - Connection between fiber optic patch cords
    - CATV, MANS, WANS
    - FTTX, FTTH

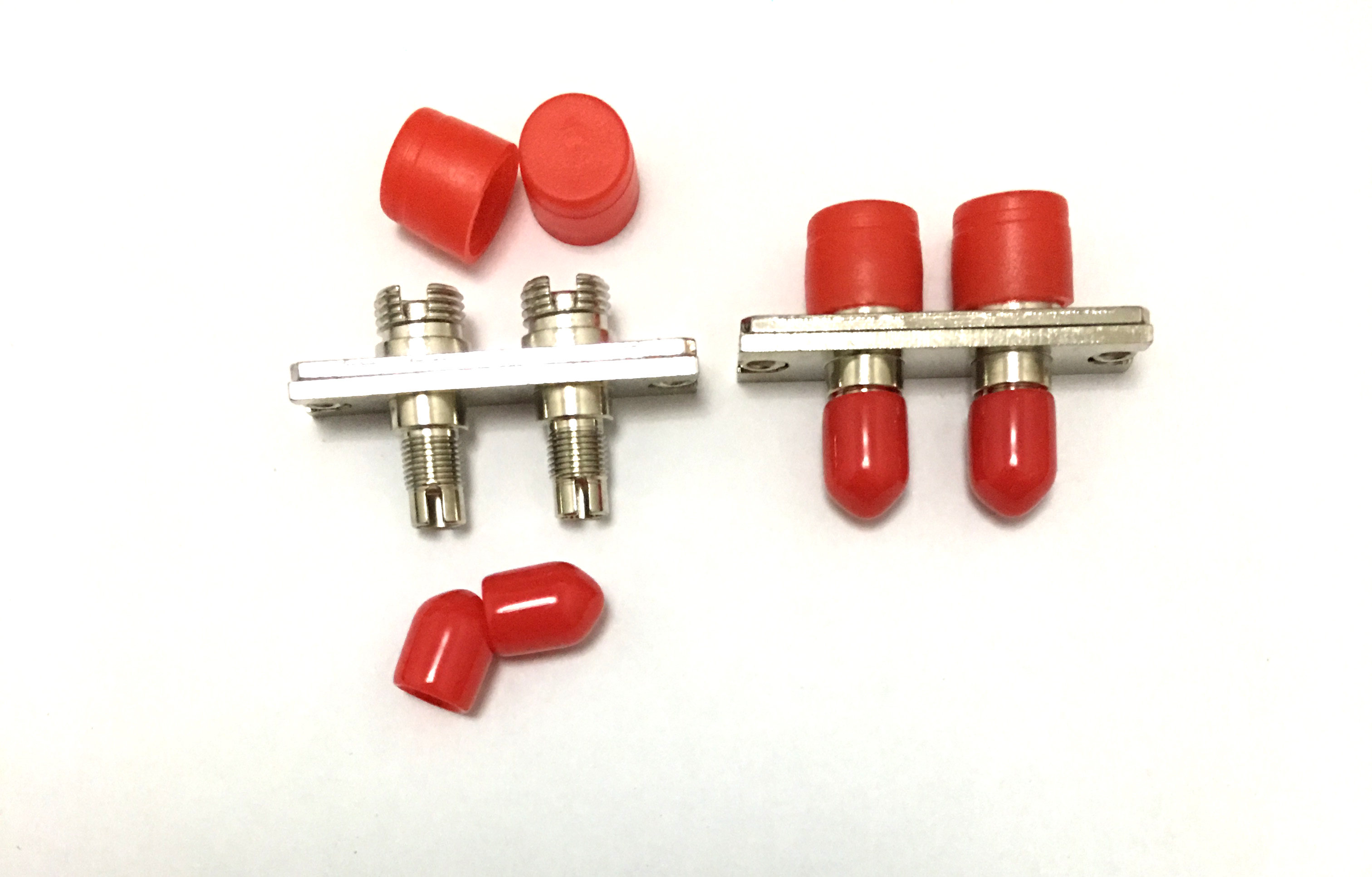

    Product pictures:



    Specification:

    CharacteristicsUnitSingle ModeMultimode
    Insertion Loss (IL)dB<0.3
    ExchangeabilitydB∆IL<0.2
    Repeatability (500 times)dB∆IL<0.2
    Sleeve material-ZirconiaPhosphor bronze
    Housing material-Nickel plated Copper
    Operating Temperature°C-40 ~ +70
    Storage Temperature°C-40 ~ +70


    Reliability testing:

    ItemTest NameAdditional Insertion LossAdditional Return Loss
    1Mechanical durability<0.2dB<5dB
    2Repeatability<0.2dB<5dB
    3Lock strength<0.2dB<5dB
    4Low strength<0.2dB<5dB
    5High temperature<0.2dB<5dB
    6Steaming<0.2dB<5dB
    7Temperature cycle<0.2dB<5dB
    8Vibration<0.2dB<5dB
    9Drop<0.2dB<5dB


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
