    Outdoor Fiber Optic Terminal Box UV Protection And Anti - Aging Material

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-ODP-16B
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    Outdoor Fiber Optic Terminal Box UV Protection And Anti - Aging Material

    KCO-ODP-16B 16port Fiber Optic Splitter Distribution Box Outdoor Wallmount Pole Mount IP67


    KCO-ODP-16B 16ports outdoor fiber optic splitter terminal box waterproof plastic optic distribution box is mounted to in and out side wall of building or pole to distribute and connect optical cable for distribution of subscriber, the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network.


    Features:

    • Water-proof design with IP-67 Protection level
    • Integrated with splice cassette and cable management tools
    • Manage large quantities of fiber with a high packing density
    • Easy to maintain and extend the capacity
    • Fiber bend radius control more than 40mm
    • Suitable for the fusion splice or mechanical splice or fast connector
    • Capacity of fiber up to 16 ports
    • Varies of adaptors are available
    • 1*8 or 1*16 PLC Spliter can be installed as an option
    • Efficient cable management
    • UV protection and anti-aging material
    • Burglar-proof padlock

    Dimensions:


    Item
    KCO-ODP-16B
    Cladding diameter(μm)
    125.0±1
    Product Type
    16 core distribution box
    Adaptor type
    SC/LC/FC/ST/E2000
    Protection Class
    IP67
    Wavelength
    1260-1650nm
    Shock-resistance
    750N
    Card Splitter Type
    1x16 / 2x16
    Type
    Waterproof outdoor
    Application
    FTTH FTTB FTTX
    Box Material
    PC/SMC/ABS
    Operating temperature
    -40 ℃ ~ +60 ℃

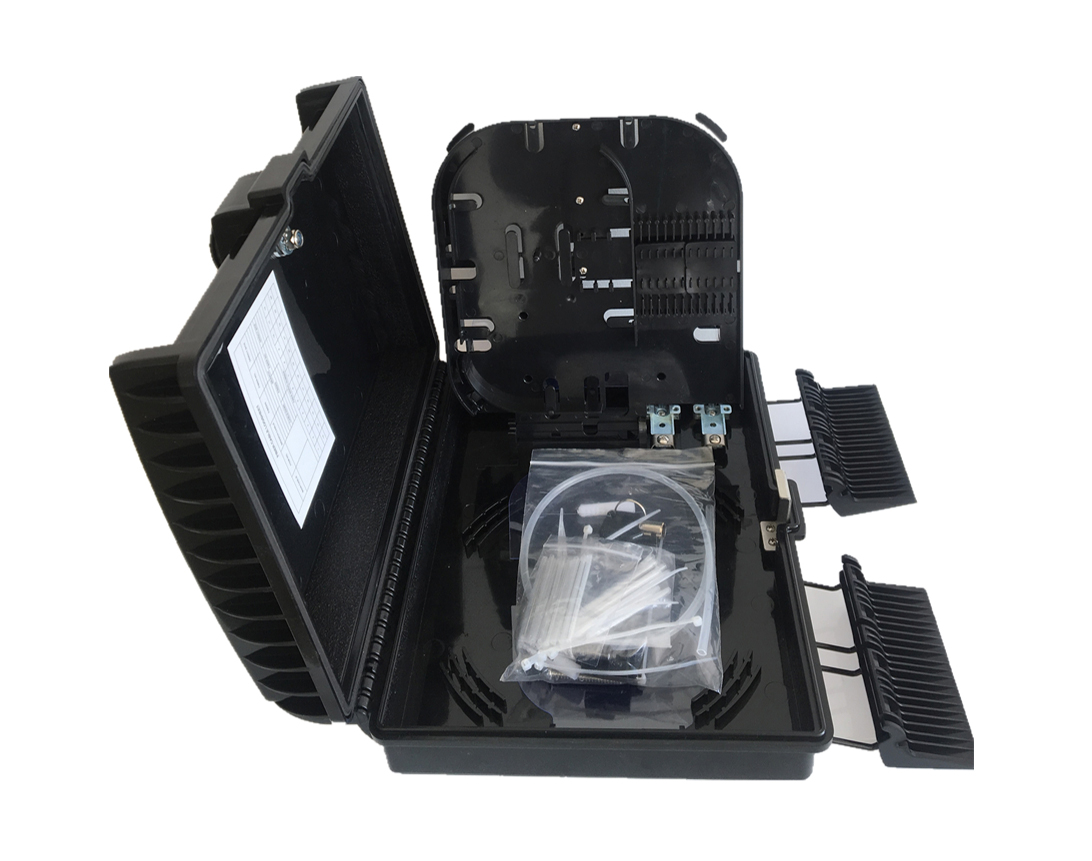

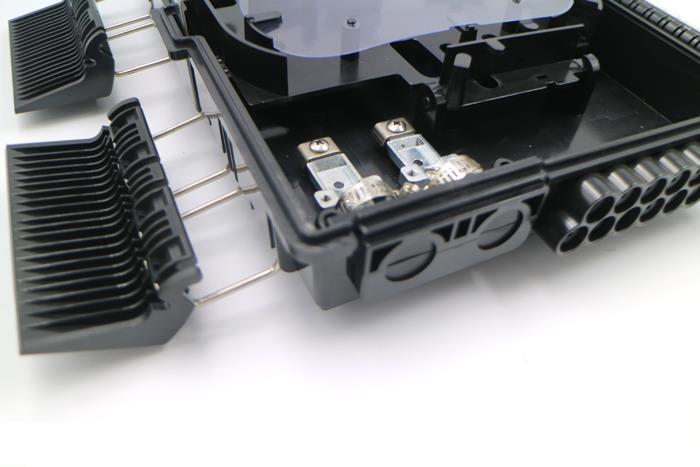

    Product photos:

    Specifications

    • Vibration, pressure and pulling protection, endurable bad situation like quake, knocking, pulling and distortion etc.
    • Waterproof, creative complete seal plastic band with re-opening style guarantying good air sealing and waterproof function.
    • Anti-UV,Ultra violet resistant and rainfall resistant.
    • Fire protection, -40°C~+80°C
    • Aging protection, good stability for heat, heating energy radiation, air and ozone
    • Can accommodate 1x4 &1x8 &1x16 &1x32 PLC splitter.
    • Up to 24 FTTH drops.
    • Wall and pole mountable.
    • 1~3 inlet ports,8~24outlet ports.
    • Widely used in FTTH access network.
    • Telecommunication networks.
    • CATV Networks.
    • Data communications networks.
    • Local Area Networks.

    Applications:

    • FTTX Systems
    • Telecommunication Networks
    • PON Networks
    • Data communications Networks
    • Fiber Optic Termination
    • Local Area Networks
    • CATV

    Specification:

    • Wall Mounted termination box for indoor/outdoor use
    • Up to 1 Fiber capacity SC Simplex
    • Available for SC Simplex Adaptors
    • Available install 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 Mini type PLC Splitters as required

    Operation conditions:

    • Temperatures:-40℃ -- 60℃
    • Humidity:93% at 40℃
    • Air Pressure:62kPa – 101kPa

    Packing Information


    ModelN.W (kg/pcs)Dimension of outer carton (mm)G.W of outer Carton (kg/carton)No of Products (pcs/carton)
    KCO-ODP-16B2550*360*6201810

    Package includes:

    - Terminal box, 1 unit

    - Keys for lock, 2 keys

    - Wall mount installation accessories, 1 set
