16 Port Outdoor Wall Mount Fiber Optic Splitter Box IP68 PC+ABS Plastic KCO-ODP-16B

KCO-ODP-16B 16ports outdoor fiber optic splitter terminal box waterproof plastic optic distribution box is mounted to in and out side wall of building or pole to distribute and connect optical cable for distribution of subscriber, the box achieve mechanical splicing, splicing and distribution of fiber, use for FTTH network.

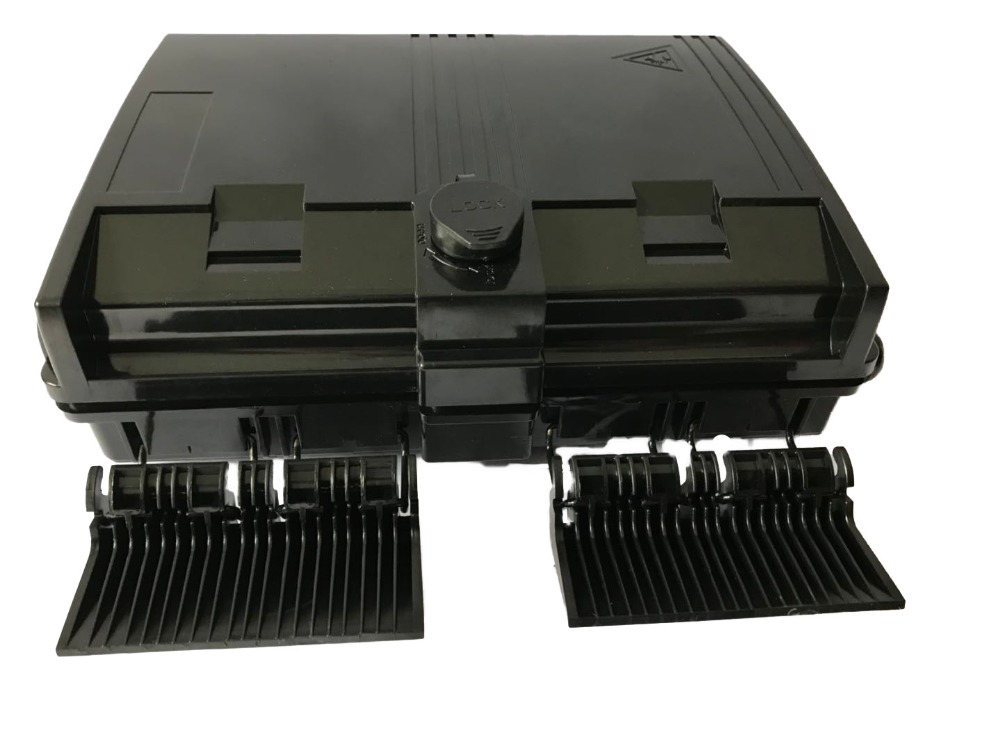

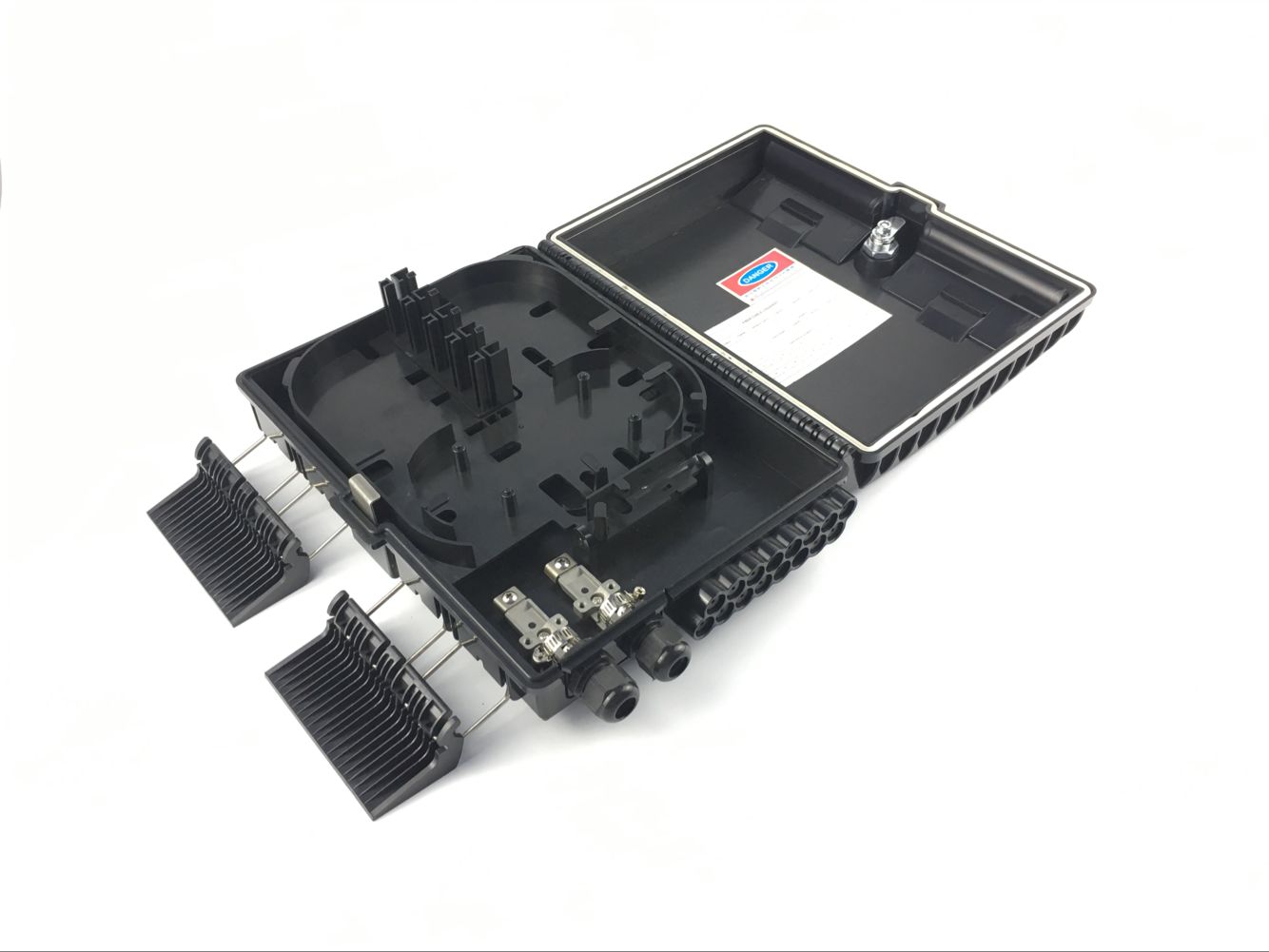

Product photos:

Features:

• Rainfall resistant, IP66 outdoor using
• Nonmetallic material
• Industry Standard User Interface
• Be made of high impact plastic
• Compacted wall mount type and pole mounting application
• Simple and clearly arranged incoming and outgoing cable management
• Higher fiber count capacity box is available upon request
• Easy maintenance, easy access with front door
• Support both mechanical and fusion splicing
• Low cost solution with high protection for the terminated fibers
• Up to 16 FTTH drops,
• Can accommodate 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 PLC splitter
• inlet ports, 16 outlet ports with 16pcs SC, LC, ST, FC adapters
• Customized design product is available upon request

Applications:

• FTTX Systems
• Telecommunication Networks
• PON Networks
• Data communications Networks
• Fiber Optic Termination
• Local Area Networks
• CATV

Specification:

• Wall Mounted termination box for indoor/outdoor use
• Up to 1 Fiber capacity SC Simplex
• Available for SC Simplex Adaptors
• Available install 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 Mini type PLC Splitters as required

• Temperatures:-40℃ -- 60℃
• Humidity:93% at 40℃
• Air Pressure:62kPa – 101kPa

Packing Information

- Terminal box, 1 unit

- Keys for lock, 2 keys

- Wall mount installation accessories, 1 set
