    KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-ODP-16B
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

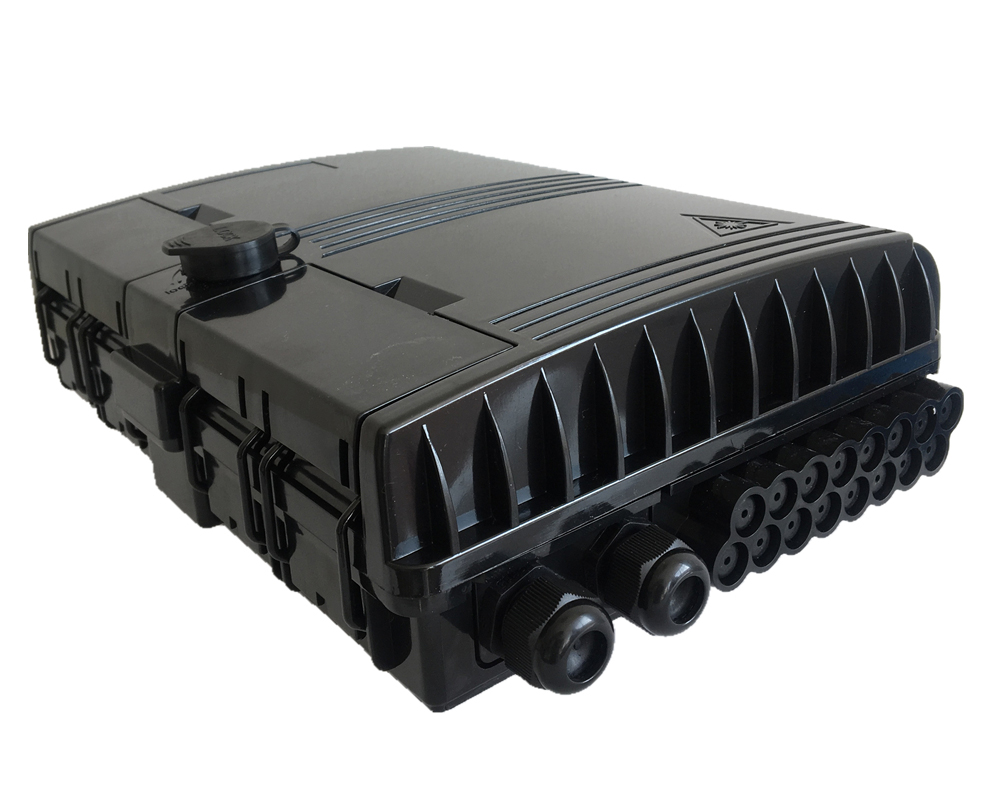

    KCO-ODP-16B Fiber Optic Terminal Box Distribution Junction Box Drop Resistance


    KCO-ODP-16B Fibre Optical Splitter Terminal Distriution Junction Box 1*16

    Water-proof Black White ABS+PC


    KCO-ODP-16B splitter optical distribution terminal box provides a high density wall-mounted solution for next generation networks, which aims to provide and manage maximum numbers of fibers in a limited space. It is normally installed in the way of wall-mounted or pole-mounted.


    Features


    • ABS+PC material used ensures the body strong and light.
    • Waterproof design for outdoor use.
    • Made of Grade A PC alloy material, working life more than 20 years.
    • Drop resistance, ability to work under vertical pressure of 500N.
    • Easy installations: Ready for wall mount installation kits provided.
    • Adapter slots used, no screws and tools needed for installing adapters.
    • Ready for splitters: designed space for adding splitters.
    • Double-layer design for easier installation and maintenances:
    • Lower layer for splitters and over length fiber storage.
    • Upper layer for splicing, cross-connecting and fiber distribution.
    • Cable fixing units provided for fixing the outdoor optical cable.
    • Accommodates both cable glands as well as tie-wraps
    • It is good for storage of fixing cable achieves.
    • It is applicable for (indoor and outdoor) (pole-mounted, wall-mounted).
    • The splicing part is convenient for protection and maintenance engineering.
    • Adapter baseboard and optical installation box baseboard uses a rotary design.
    • Cable, pigtails, patch cord are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
    • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

    Specification:

    Item
    KCO-ODP-16B
    Cladding diameter(μm)
    125.0±1
    Product Type
    16 core distribution box
    Adaptor type
    SC/LC/FC/ST/E2000
    Protection Class
    IP67
    Wavelength
    1260-1650nm
    Shock-resistance
    750N
    Card Splitter Type
    1x16 / 2x16
    Type
    Waterproof outdoor
    Application
    FTTH FTTB FTTX
    Box Material
    PC/SMC/ABS
    Operating temperature
    -40℃ ~ +60℃
    Size218*292*83mmWeight:1.5kg

    Dimensions:


    Product photos:


    Applications:

    • FTTX Systems
    • Telecommunication Networks
    • PON Networks
    • Data communications Networks
    • Fiber Optic Termination
    • Local Area Networks
    • CATV

    Specification:

    • Wall Mounted termination box for indoor/outdoor use
    • Up to 1 Fiber capacity SC Simplex
    • Available for SC Simplex Adaptors
    • Available install 1x4, 1x8, 1X16, 2x4, 2x8, 2x16 Mini type PLC Splitters as required

    Operation conditions:

    • Temperatures:-40℃ -- 60℃
    • Humidity:93% at 40℃
    • Air Pressure:62kPa – 101kPa

    Packing Information


    ModelN.W (kg/pcs)Dimension of outer carton (mm)G.W of outer Carton (kg/carton)No of Products (pcs/carton)
    KCO-ODP-16B2550*360*6201810

    Package includes:

    - Terminal box, 1 unit

    - Keys for lock, 2 keys

    - Wall mount installation accessories, 1 set
