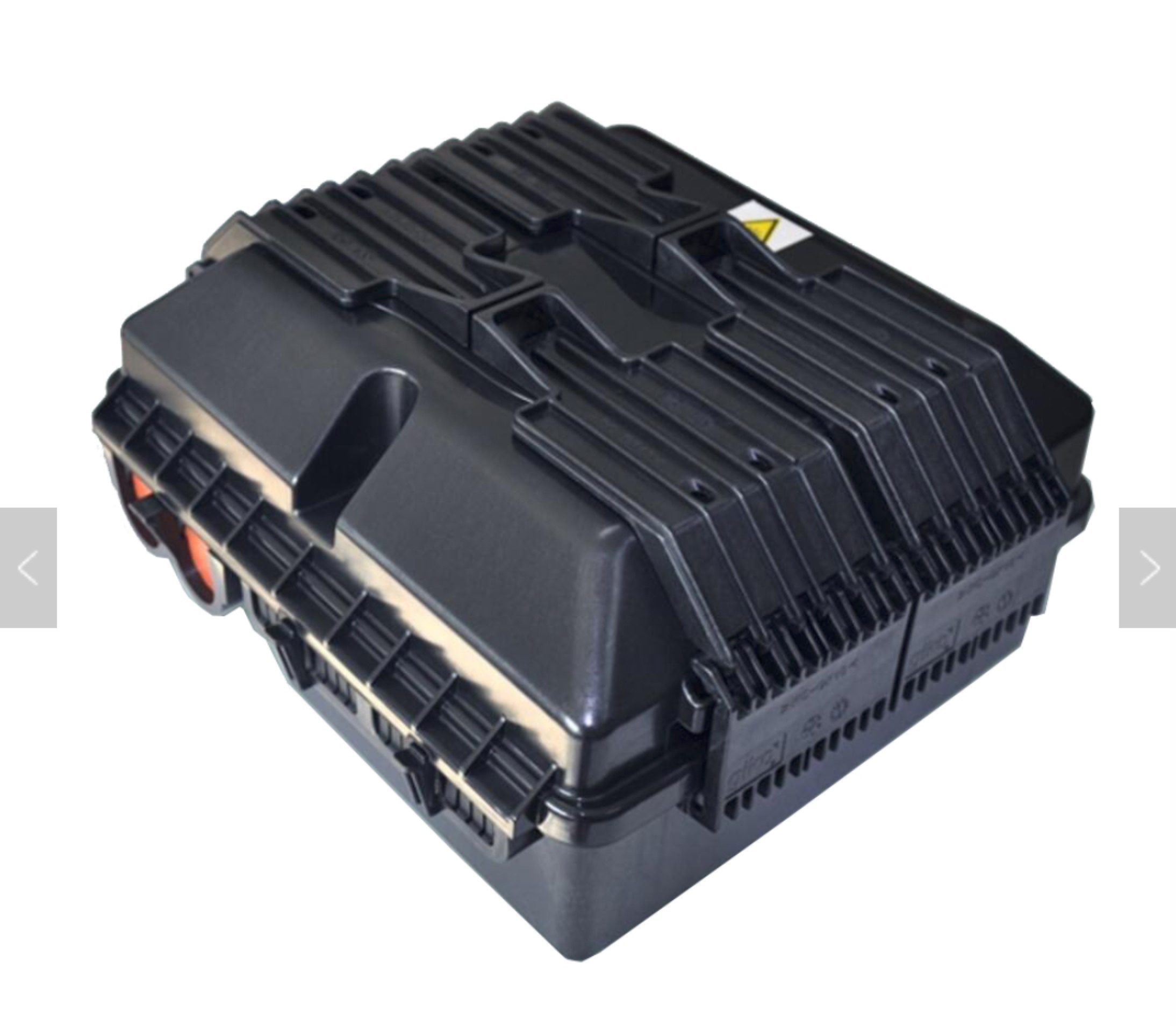

KCO-P100A Outdoor IP67 FTTH Fiber Optical Outdoor CTO Box

24Core ONU Fiber Terminal Box

Overview

- KCO-P100A ONU Fiber Optic Terminal Distribution Box is available for the distribution and terminal connection for various kinds of optical fiber system, especial suitable for mini-network terminal distribution, in which the optical cables,patch cords or pigtails are connected, PC plastic terminal box, 1input cable ports 2output cable ports, PLC splitter can be loaded inside, suitable for indoor and outdoor wall-mounted and pole mounted using

- KCO-P100A ONU Fiber Optic Terminal Distribution Box is Optical Network client FTTH wiring equipment, mainly for light transmission terminal into the heat sealing, spectral, wiring the output, and other functions, can be effective for terminating cable, protection and management, for the necessary equipment in the process of optical network transmission.

- KCO-P100A ONU Fiber Optic Terminal Distribution Box has 4 ports for up to 24 cores, capacity 24 sc adaptors or pigtails and it is applicable PLC splitters to a terminal access links FTTH solutions.

Application:
- Widely used in FTTH access network.
- Telecommunication Networks
- CATV Networks Data communications Networks
- Local Area Networks

Features:

- The product is made of PC and glass fiber hybrid after granulation after high temperature injection molding, plastic industry "alloy steel" title, product appearance smooth lines, is to prevent water, prevent fire, to prevent the impact of three protective function, reach the grade IP55 protection ability.
- Matching line equipment products for a variety of purposes, both can be used for optical fiber distribution box use can also be used as optical fiber branching box use, convenient and flexible to operate.
- The clasp design, adopt unique lock box opening and closing flexible, protective performance is good.
- The frame structure, to the port configuration and distribution of high density optical fiber devices.
- Use a variety of installation accessories connection, can be fixed on the carrier of plane and surface.
- Into the outlet using silica gel protective sleeve, completely avoid water and dust into the interior.

- A variety of use, the user can configure their circuit part, realize other functions.

- Sets of fiber optic cable splicing, disk storage, wiring three functions into one.
- Welding lifted the lid can be opened, the installed directly above, also reveal a box outside operation, simple to use.
- The loading and unloading type adapter plate with dip Angle, can avoid activities generated when the connector plug plug the light damage to the human eye, and make the fiber has a large bending radius.
- Suitable for ordinary optical cable, can also be applied to the welding ribbon cable.
- With the advanced device, fiber optic cabling management ensures that the wiring of the fiber and the fiber core installation, construction and maintenance is convenient.

Product Detail:

Structure: KCO-P100A ONU Fiber Optic Terminal Distribution Box is Four-tier structure design, capacity 4 to 16 sc adaptors and splitters.

Usage: suitable for installation on wall, post or air.

Packing:

8pcs/Carton/59x56x32(cm);

630carton= 1*40”GP container

310cartons=1*20”GP container.

Technical Parameters:

Item	KCO-P100A
Working temperature	-40°C~ +80°C;
relative humidity	93% or less (at + 40 ° C)
atmospheric pressure	62 kpa to 101 kpa (approximate 0 ~ 5000 meters above sea level)
insertion loss	0.35 dB or less
Return loss	50 dB or higher
Plug the durable performance	> 1000 times
Insulation resistance	1000 m or more Ω / 500 v (DC)
Pressure	> 3000 v (DC) / 1 min not breakdown, no arcing
Dimension	270*272*145mm
Weight	2.25 KG

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
