MPO APC to 12 LC UPC Patch Cord Single Mode OS2 9/125 G652D 2.0mm
PVC 1m 3m 5m 10m
Descriptions:
- Complies with IEC, Telcordia GR-326-CORE standard
- Low insertion loss and high return loss
- PC/UPC/APC polishing
- Fanout diameter: 0.9mm, 2.0mm, and 3.0mm
- Fanout Length: 0.3m, 0.5m
- Fiber patch cord of the Single or multi mode is available
- Simplex or duplex is available
- PVC or LSZH fiber optical cable is available
- Excellent changeability and repeatability
- Tensile strength: 10N
- Operating temperature range: -40°C to 80°C
- Storage temperature range: -40°C to 80°C
- Color of fiber optic cable:
Singlemode: Yellow
Multimode OM1, OM2: Orange
Multimode OM3, Om4: Aqua
Multimode OM4: Pink
Multimode OM5: Green
Features:
- Single mode and multi mode (flat) APC (catercorner 8 degree
angled) are available
- High fiber density (maximum 24 fibers for Multimode)
- Fiber in single connector: 4, 8, 12, 24
- Insert/Pull latching connector
- High reflection loss with APC
- Comply with Telcordia GR-1435-CORE specification and Rosh
standard
Applications:
- FTTH, CATV, LAN, MAN, WAN, Test & Measurement
- Video transmission, Data transmission
- Active Device Termination
- Premise Installations
- Telecommunication and Data processing Networks
- Industrial, medical & military
- Systems Integration for Long Haul, Metro and Access Network
Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | | Low Loss | | Low Loss | |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
Product Construction:
A: MPO connectot
L: Total length
L1: Fanout length
B: Connector ( FC, LC, ST, SC, ...)

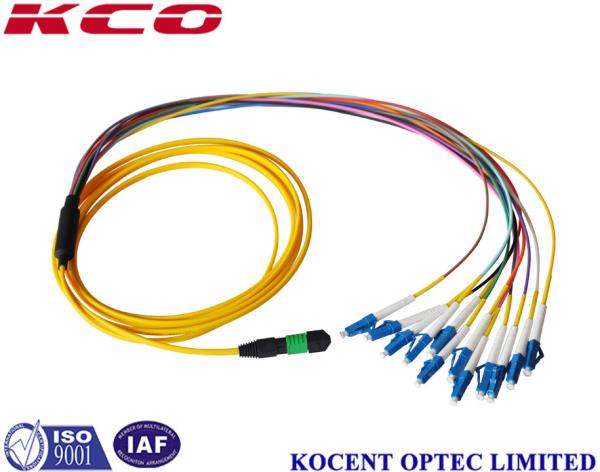

Product Photo:
Ordering Informations:
MPO/PC–MPO/PC-SM-12CORE–2M-LSZH
① ② ③ ④ ⑤ ⑥
Notices:
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
