OM1 62.5 OM2 50/125 MPO to 12 ST Optical Patch Cord Multimode With
Fan-Out Kits
Product detail:
Connector side A: MPO
Connector side B: ST/UPC (can change to other type of connector)
Cable fiber count: 12 cores (also can make with 8 cores, 24 cores)
Cable diameter: 2.0mm, 3.0mm, ...
Cable Length: customized
Fan-out kits: available
Break-out kits: available
Cable sheath: PVC, LSZH, TPU, ...
Fiber Type: Multimode OM1, OM2 ( can change to Single mode OS2, or
OM3, OM4, OM5)
Cable Color: Orange (Can change to other color according to
customer request)
Applications:
- FTTH
- FTTB
- FTTA
- ATM
- CATV
- Active dvice termination
- Telecommunication networks
- Metro
- Local Area Networks(LANs)
- Data Processing networks
- Test Equipment
- Premise installations.
- Wide Area Networks(WANs)
Features:
- Customized,
- High adaptability
- Optional different fiber cores and cable structure for different
installation requirement
- PVC, LSZH, OFNR, OFNP cable jacket available
- Improved and simplified cabling, reduce cabling spacing
- All patch cable are 100% tested, test report supplied with each
cable assembly
- Tests Interferometer, Insertion Loss, Return Loss and Visual
Final Inspection;
- All measured values are electronically archived
Descriptions:
- The single-mode and multimode MPO products are multi fiber
connectors used in high-density backplane and Printed Circuit
Board(PCB) applications in data and telecommunications system. The
MPO connector offers up to 12 times the density of standard
connectors, providing significant space and cost savings.
- MPO patch cord utilize precision molded MT ferrules, with metal
guide pins and precise housing dimensions to ensure fiber alignment
when mating. The MPO can be mass terminated in combination of
4,8,12 or 24 fibers.

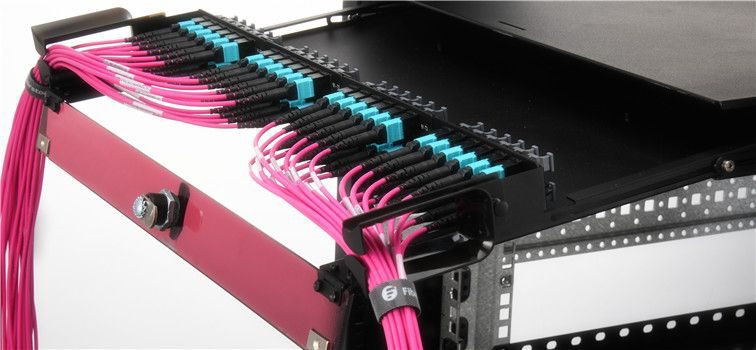

- MTP/MPO multi-fiber trunk cables are usually in mini-round cables
and ribbon cables, with fanout kits broken down into 2~24 fiber
0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc.
- Cable total length, fanout length, connector type are customized.

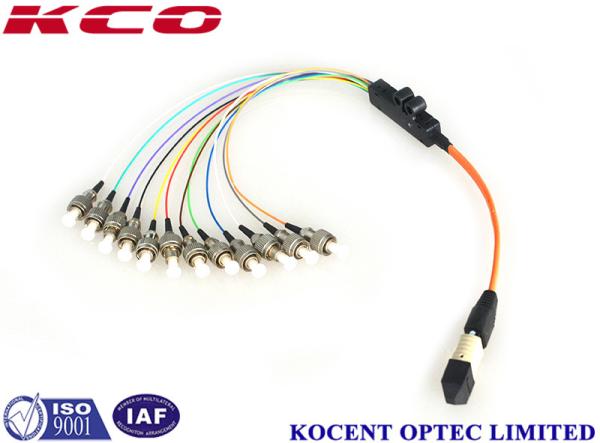

Products Photo:
Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | | Low Loss | | Low Loss | |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
MPO connector Assembly:
Ordering Informations:
MPO/PC–MPO/PC-SM-12CORE–2M-LSZH
① ② ③ ④ ⑤ ⑥
Notices:
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
