SC OM5 100G Duplex Simplex Optical Fiber Patch Cords Multimode 50/125 Lime Green

What is OM5 Patch Cable:
OM5 fiber jumper is a laser-optimized multi-mode fiber jumper that specifies broadband characteristics for WDM.
OM5 fiber jumper, also known as broadband multi-mode fiber jumper, is suitable for high-bandwidth applications.
It uses the WDM technology of single-mode fiber to extend the range of available wavelengths for network transmission.

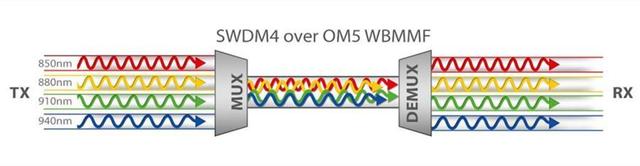

It can support four wavelengths on a core of multi-mode fiber, reducing the number of fiber core required to 1/4 of the previous one.

The difference between OM5 fiber patch cord and OM4 fiber patch cord:
The OM5 fiber jumper is structurally indistinguishable from OM4 fiber jumper and is compatible with OM4 fiber jumper. In addition, there are still differences between the OM5 fiber jumper and OM4 fiber jumper.
Different colors: the outer sheath of OM5 fiber jumper is aqua green; The outer sheath of the OM4 fiber jumper is aqua blue.
Different wavelength: the wavelength of OM5 fiber jumper is usually 850/1300nm, which can support at least 4 wavelengths once. OM4 fiber jumpers generally have a wavelength of 850/1310nm, and only one wavelength can be supported at a time.
Transmission distance varies: in the case of the same wavelength, the transmission distance of OM5 fiber jumper is generally longer than that of OM4 fiber jumper.
Different transmission rates: the transmission rate of OM5 fiber jumper is 40Gb/s and 100Gb/s; The transmission rate of OM4 fiber jumper is 10Gb/s, 40Gb/s and 100Gb/s.
The effective mode bandwidth (EMB) is different: on the wavelength of 850nm, the effective mode bandwidth (EMB) of OM5 fiber jumper is 6000mhz. km, while the effective mode bandwidth (EMB) of OM4 fiber jumper is 4700mhz. km.

Applications:

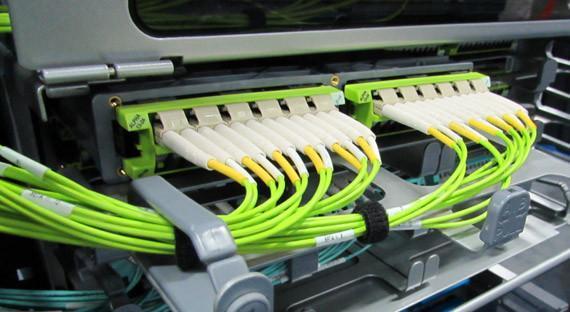

Product Photos:

Specification:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 15 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customers. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passive product such as:

- Fiber optic cable (indoor cable, outdoor cable, ftth cable, tactical fiber optic cable),

- Fiber optic splitter PLC splitter,

- Fiber optic patch cable/ pigtail,

- MPO/MTP fiber optic solution products,

- Fiber optic terminal box,

- Fiber optic ditribution box,

- Fiber optic distribution frame and patch panel,

- Fiber optic splice closure box,

- Fiber optic adapter, fiber optic attenuator, fiber optic connector, fiber optic ferrule, fiber optic protection sleeves (large stock goods, always ready to delivery any time), etc.

With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 15 years of experience in production of passive fiber optic products.

Fast connector work shop:

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable.  All of patch cable is tested 100% before shipment.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost.

Customer can choose to send by internaltion express, by air, and by sea.
