50/125 OM5 SC Duplex Simplex Fiber Optical Patch Cable MM Lime Green 5m 7m 10m PVC LSZH

What is OM5 Patch Cable:

OM5 fiber jumper is a laser-optimized multi-mode fiber jumper that specifies broadband characteristics for WDM.

OM5 fiber jumper, also known as broadband multi-mode fiber jumper, is suitable for high-bandwidth applications.

It uses the WDM technology of single-mode fiber to extend the range of available wavelengths for network transmission.

It can support four wavelengths on a core of multi-mode fiber, reducing the number of fiber core required to 1/4 of the previous one.

Application prospect of OM5 fiber jumper in data center in future:
- OM5 fiber optic jumper to very large data center gives a stronger vitality, it breaks through the traditional multimode fiber parallel transmission technology and adopted by the bottleneck of transmission rate is low and can not only with less multimode fiber some support more high-speed network transmission, and because it USES a low cost, short wavelength light module cost and power consumption is far lower than that of single mode fiber with long wave laser light source. Therefore, in the future 100G/400G/1T super-large data center will have a broad application prospect.
- Taking the future generation of 400G Ethernet optical fiber wiring as an example, 16 core fibers are needed for transmitting signals and 16 core fibers for receiving signals. A total of 32 core fiber multi-mode fibers are needed, which means the data center needs to deploy the wiring system with 32 core MPO/MTP interfaces. Therefore, the high wiring cost will put off the data center designers.
- If the OM5 fiber jumper wire and the light of short wavelength division multiplexing module, only need a total of eight core multimode fiber, including four core optical fiber is used to send signals, the other 4 core optical fiber is used for receiving signals, and each optical fiber transmission four wavelength, the transmission rate of each wavelength 25 GBPS, therefore, fiber jumper OM5 100 GBPS per core optical fiber can transmit data. By adopting the technology of short wavelength division multiplexing and parallel transmission, the wiring cost of the data center will be greatly reduced, and it is believed that the OM5 fiber jumper will be widely used in the near future.

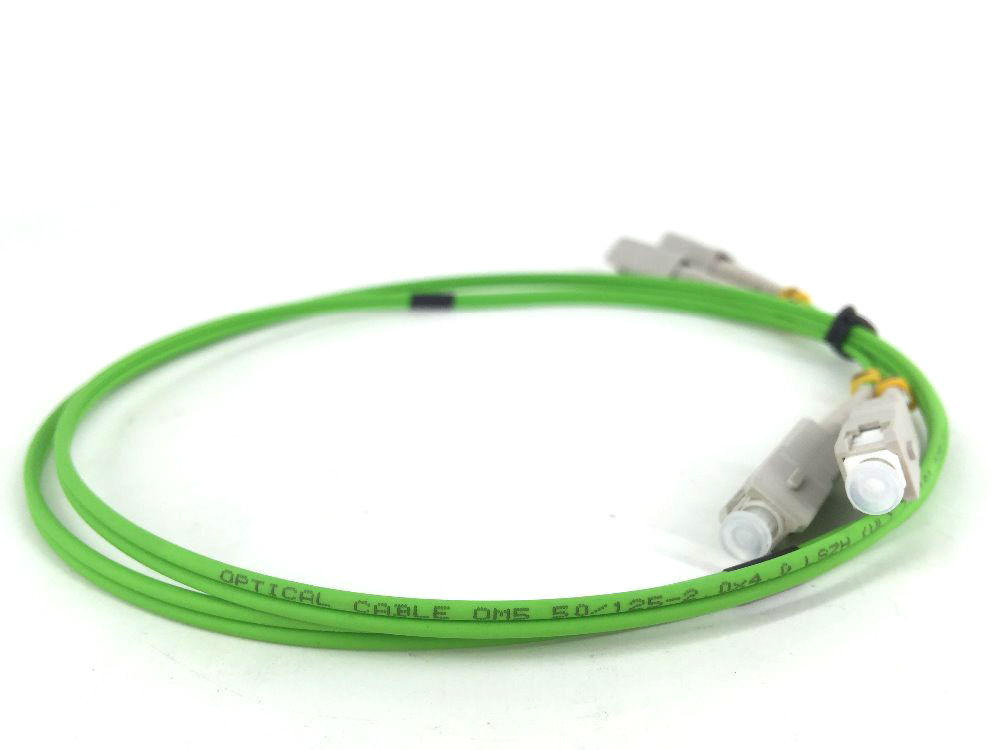

Product Photo:

5 reasons to use OM5 fiber:
- The OM5 fiber specification has been issued by the communications industry association as tia-492aaae, and is in the final voting stage at IEC as IEC 60793-2-10 version 6.
- The OM5 and tia-492aaae specifications will be recognized in the upcoming ISO/IEC 11801 version 3 and American national standards association wiring standards ANSI/ tia-568.3-d.
- OM5 fiber is at least as good as OM4 in supporting all traditional applications, and it is fully compatible and interoperable with OM3 and OM4 fiber.
- The OM5 is designed to support at least four low-cost wavelengths in the 850-950 nanometer range, enabling optimized support for emerging short-wavelength division multiplexing (SDWM) applications that reduce the number of parallel fibers by at least four times, can use just two fibers (instead of eight) to continuously transmit 40Gb/s and 100Gb/s, reduce the number of fibers, and achieve higher speeds.
- The OM5 has been sold worldwide, and pre-end-to-end fiber optic jumper provided by Sun Telecom pujin has been installed in a variety of network environments, including campuses, buildings and data centers.
Compared with traditional OM3 and OM4 fiber, OM5 has significant advantages in supporting SWDM applications. In the future, SWDM technology may also be used to achieve Ethernet speeds of 200, 400 and 800Gb/s in multimode fiber.

Specification:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 15 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customers. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passive product such as:

- Fiber optic cable (indoor cable, outdoor cable, ftth cable, tactical fiber optic cable),

- Fiber optic splitter PLC splitter,

- Fiber optic patch cable/ pigtail,

- MPO/MTP fiber optic solution products,

- Fiber optic terminal box,

- Fiber optic ditribution box,

- Fiber optic distribution frame and patch panel,

- Fiber optic splice closure box,

- Fiber optic adapter, fiber optic attenuator, fiber optic connector, fiber optic ferrule, fiber optic protection sleeves (large stock goods, always ready to delivery any time), etc.

With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 15 years of experience in production of passive fiber optic products.

Fast connector work shop:

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable.  All of patch cable is tested 100% before shipment.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost.

Customer can choose to send by internaltion express, by air, and by sea.
