    Flame - Retardant Optical Fiber Cable , Water - Resistant Stranded Loose Tube 96 Core

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-MGTSV
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10,000km/ month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    Flame - Retardant Optical Fiber Cable , Water - Resistant Stranded Loose Tube 96 Core

    Mining Flame-retardant Optical Fiber Cable MGTSV 8 12 24 48 72 96 Core Stranded Loose Tube

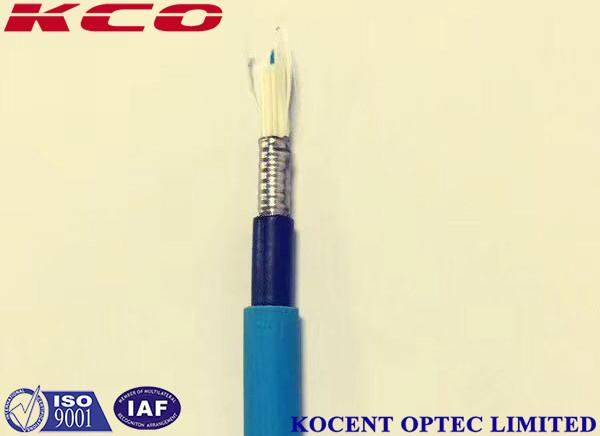

    Cable Description:
    The tubes are filled with a water-resistant filling compound.
    A steel wire, sometimes sheathed with PE for cable with high fiber count, locates in the center of core as a metallic strength member.
    Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
    The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress.
    The cable is completed with a flame-retardant sheath.


    Laying method: pipe, aerial, direct bury, shaft


    Application scope: mainly applicable to remote communication in coal mine, as well as inter-unit voice, image and digital signal transmission


    Feature:

    - Accurate control on spare length of optic fibers guarantees optic cables of good tensile property and temperature property

    - Material of loose tube compromises water resistance property and higher strength. Tubes are filled with certain pates to conduct critical protection on optic fibers

    - PE sheath is of good UV resistance performance

    - Following measures may be applied to maintain waterproof performance of optic cables:

    - Single steel wire strengthen core

    - Fill loose tube with special waterproof compound

    - Fully fill cable core

    - Paint PSP dampproof coat on both surfaces

    - Blue fire-retardant PVC is adopted as secondary sheath in order to realize good fire-retardant performance of optic fibers as well as to facilitate recognition.


    Storage/Operating Temperature: -40°C to + 70°C


    Optical Fiber Parameter
    Fibers:4~144Fibers
    No. of Tube1~12
    No. of fiber/Tube4~12Fibers
    Fibers colorBlue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua.
    Loose Tube Diameter2.0±0.05 mm
    Tubes colorBlue/ Orange/ Green/ Brown/ Gray/ White/ Red/ Black/ Yellow/ Purple/ Pink/ Aqua
    Strength Member Diameter1.5~2.3mm
    Inner Sheath Diameter7.5 mm
    Inner Sheath Thickness0.8mm
    Out Sheath Diameter Thickness1.8mm
    Cable Diameter10.0mm
    Cable Weight110kg/km
    Loose Tube MaterialPBT
    Filling compound (Tube)Thixotropic Jelly
    Water BlockingWater Swell able Material
    Out sheathFlame retardant outer sheath

    Optical Fiber Parameter
    Fiber TypeSingle mode G652D,G657, G655, Multimode OM1, OM2, OM3, OM4, OM5
    Mode Field Diameter8.6~9.5±0.7μm
    Cladding Diameter125 ± 1μm
    Cladding Non-Circularity≤ 1%
    Coating Diameter245 ± 10μm
    Attenuation Coefficient≤ 0.36dB/km at 1310nm, ≤ 0.22dB/km at 1550nm
    Chromatic Dispersion≤3.5ps/nm/km at 1285~1330nm, ≤18ps/nm/km at 1550nm
    Zero Dispersion Wavelength1300~1322nm
    PMD Coefficient≤ 0.2ps/√km

    Optical Fiber Parameter
    Cable typeOptical fiber numberNumber of casingNumber of packed ropeCable diameter (mm)Fiber optic cable weight (kg/km)Allowed to pull (Long/short term)Permissible flattening force (Long/short term)Bending radius (Static/dynamic)
    MGTSV- 4~64~121410110600/1500300/100010D/20D
    MGTSV-16~2414~244110110600/1500300/100010D/20D
    MGTSV-26~3626~363210.5120600/1500300/100010D/20D
    MGTSV-38~4838~484110.5120600/1500300/100010D/20D
    MGTSV-50~6050~605011.5130600/1500300/100010D/20D
    MGTSV-62~7262~726012.5140600/1500300/100010D/20D
    MGTSV-74~8474~847012.5140600/1500300/100010D/20D
    MGTSV-86~9686~968013150600/1500300/100010D/20D
    MGTSV-98~10898~1089013.5160600/1500300/100010D/20D
    MGTSV-110~122110~12010014170600/1500300/100010D/20D
    MGTSV-124~132122~13211015180600/1500300/100010D/20D
    MGTSV-124-144124~14412015.5190600/1500300/100010D/20D

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

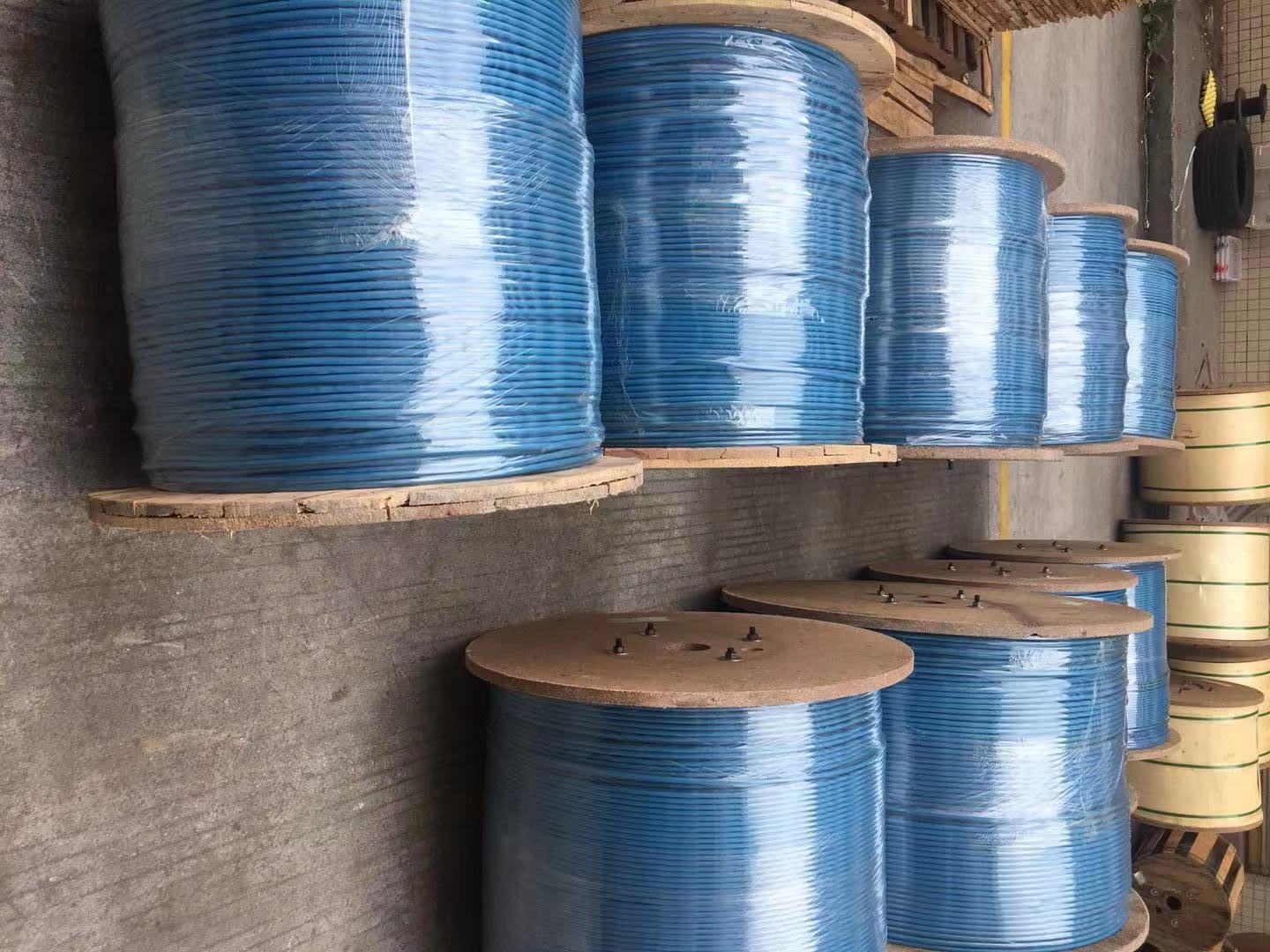

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
