    12 Cores Min Capacity Fiber Optic Junction Box Horizontal Type For PLC Splitter

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-02A-16
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    12 Cores Min Capacity Fiber Optic Junction Box Horizontal Type For PLC Splitter

    KCO-02A-16 Horizontal 1 In 4 Out Fiber Optic Splice Enclosure Junction Box

    For PLC Splitter 1*16 2*16

    Quick detail:
    - Part number: KCO-02A-16
    - Name: Splitter Fiber Optic Splice Closure Box
    - Size: 430*130mm
    - Packing: 1pc/small carton/ 45*21*19cm/ 3.0kg
    - Cable entry port: 1 ports
    - Cable out port: 4 ports
    - Capacity of fibers: 96 cores
    - Splice tray number: max. 4 trays
    - Can Install: 1x2 Splitter, 1x4 Splitter, 1x8 Splitter, 1x12 Splitter, 1x16 Splitter.
    - Material: ABS / PP Plastic
    - Packing: 6pcs/ carton box
    - Packing size: 47*47*62cm
    - Cable Diameter: 7.0-22.0mm
    - Water-proof grade: IP67
    - Working temperature: -30℃ to 60℃
    - Life time: >25 years


    Main accessories and special tools

    No.
    Name of accessories
    Quantity
    Usage
    Remarks
    1
    Heat shrinkable protective sleeve
    Protecting fiber splices
    Configuration as per capacity
    2
    Nylon tie
    Fixing fiber with protective coat
    Configuration as per capacity
    3
    Heat shrinkable fixing sleeve (single)
    Fixing and sealing single fiber cable
    Configuration as per requirement
    4
    Heat shrinkable fixing sleeve (mass)
    Fixing and sealing mass of fiber cable
    Configuration as per requirement
    5
    Branching clip
    Branching fiber cables
    Configuration as per requirement
    6
    Earthing wire
    1 piece
    Putting through between earthing devices
    7
    Desiccant
    1 bag
    Put into FOSC before sealing for desiccating air
    8
    Labeling paper
    1 piece
    Labeling fibers
    9
    Special wrench
    1 piece
    Tightening nut of reinforced core
    10
    Metal hoop
    1 set
    For wall mounting and pole hugging
    11
    Buffer tube
    customer decide
    Hitched to fibers and fixed with FOST, managing buffer.
    Configuration as per requirement
    12
    Aluminum-foil paper
    1 piece
    Protect the bottom of FOSC

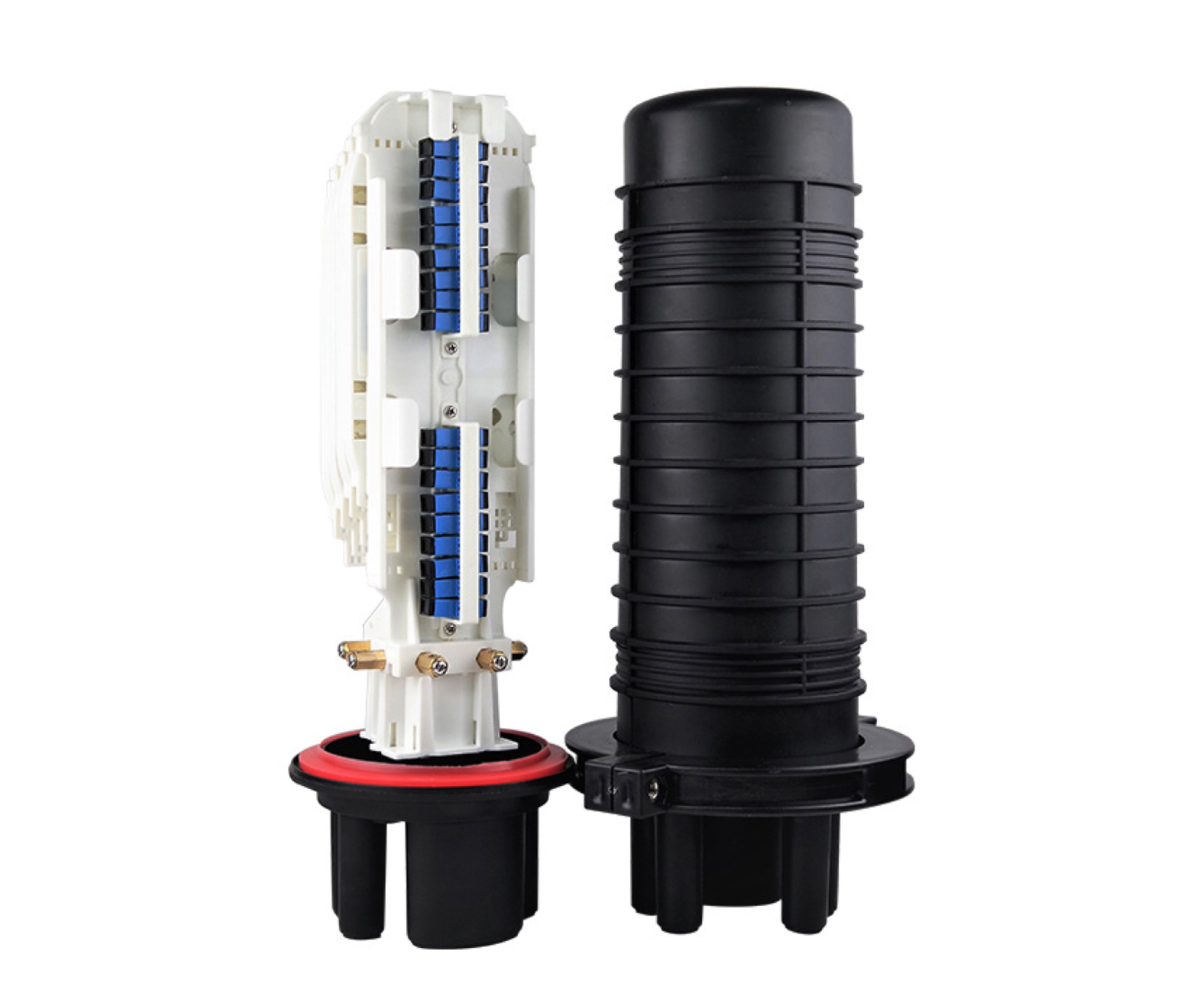

    Product pictures:

    Main components

    No.
    Name of components
    Quantity
    Usage
    Remarks
    1
    FOSC cover
    1 piece
    Protecting fiber cable splices in whole
    2
    Fiber optic splice tray (FOST)
    Max. 6 trays (bunchy)
    Max. 4 trays (ribbon)
    Fixing heat shrinkable protective sleeve and holding fibers
    Suitable for: Bunchy:12,24(cores);
    Ribbon:6 (pieces)
    3
    Fiber holding tray
    1 pcs
    Holding fibers with protective coat
    4
    Base
    1set
    Fixing internal and external structure
    5
    Plastic hoop
    1 set
    Fixing between FOSC cover and base
    6
    Seal fitting
    1 piece
    Sealing between FOSC cover and base
    7
    Pressure testing valve
    1 set
    After inject air, it is used for pressure testing and sealing testing
    Configuration as per requirement
    8
    Earthing deriving device
    1 set
    Deriving metal parts of fiber cables in FOSC for earthing connection
    Configuration as per requirement


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
