    Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : LC/APC-DX-Shutter-NF
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    Low Insertion Loss Fiber Optic Adapter Green LC/APC Shutter Duplex PC Material

    Green LC/APC Shutter Duplex Adapter Single Mode Optical Fiber Adapter PC Material None Flange


    Quick Information:
    - Name: LC/APC Duplex Shutter Adapter without flange
    - Fiber type: Single mode (SM) 9/125
    - Signal way: duplex (2 ways)
    - Material: Plastic
    - IL: less than 0.2dB
    - RL: More than 50dB
    - P/N: LC/APC-DX-Shutter-NF

    Feature
    - Great repeatability and interchangeability.
    - Low insertion loss.
    - Hign reliability.
    - Compliant with IEC and Rohs standards.

    Applications
    - Test equipment.
    - Connection of optical links in optical active devices
    - Jumper connection
    - Production and testing of optical devices
    - Optical fiber communication system,CATV
    - LANs and WANs
    - FTTx


    Specification:

    ParameterSingle-modeMulti-mode
    Adapter colorBlue, GreenBeige
    Test wavelength1310nm, 1550nm850nm, 1300nm
    Insertion LossTypical≤0.15dB, Max≤0.20dBTypical≤0.15dB, Max≤0.20dB
    Repeatability≤0.10dB
    Interchangeability≤0.20dB
    Durability≤0.20dB Max change, 500 mating
    ChannelsSimplex, Duplex, 4channels
    MaterialPlastic or metallic
    Sleeve materialCeramic (ZrO2)
    Operating Temperature-20ºC to +70ºC
    Storage Temperature-40ºC to +85ºC

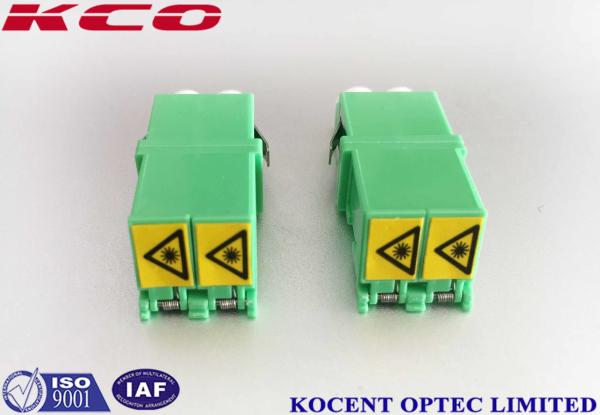

    Product pictures:


    Reliability testing:

    ItemTest NameAdditional Insertion LossAdditional Return Loss
    1Mechanical durability<0.2dB<5dB
    2Repeatability<0.2dB<5dB
    3Lock strength<0.2dB<5dB
    4Low strength<0.2dB<5dB
    5High temperature<0.2dB<5dB
    6Steaming<0.2dB<5dB
    7Temperature cycle<0.2dB<5dB
    8Vibration<0.2dB<5dB
    9Drop<0.2dB<5dB


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
