    Indoor Wall Mount Fiber Termination Box Socket 1 Port SC Simplex LC Duplex Face Plate

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FP-SCS-01
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    Indoor Wall Mount Fiber Termination Box Socket 1 Port SC Simplex LC Duplex Face Plate

    Indoor Wallmount Socket 1 Port SC Simplex LC Duplex Terminal Box Face Plate

    Description:
    - KCO-FP-SCS-01 one port fiber optic terminal box, also call fiber optic socket is designed for indoor FTTH solution.
    - It can install 1 pc of SC simplex adapter or 1 pc of LC duplex adapter.
    - Light weight and mini size, sastify end user request.
    - White color of ABS material, environmental protection. Beauty sharp.


    Quick Information:

    Part numberKCO-FP-SCS-01
    Size115x86x22mm
    Capacity2 cores (for SC), 4 cores (for LC)
    MaterialPlastic ABS
    Cableindoor cable or FTTH cable
    Cable diameterMax. 10mm
    AdapterSC, LC, FC, ST, E2000, etc
    ColortWhite


    Size:

    Feature:
    - Light weight, small size and easy installation.
    - Made of high class engineering plastic ABS.
    - Special fiber routing designs to ensure the bending radii greater than 40mm.
    - Adopting the splice trays for easy operations.
    - Reliable earth device.
    - Equipment with fitting for fiber optic cable fixing.


    Applications:
    - FTTH, FTTx, FTTB
    - LAN
    - Data centers
    - Local area network etc


    Operating Conditions:
    - Temperature -45~+85
    - Relative humidity 85%(+30 C)
    - Atmospheric pressure 70KPa~106KPa

    Qualification:
    - Nominal work wave-length: 850nm,1310nm,1550nm
    - Connectors loss 0.2dB
    - Insert loss 0.2dB
    - Return loss >=50dB(UPC),>=60dB(APC)
    - Insulation resistance (between frame and protection
    - Grounding) >1000MΩ/500V(DC)

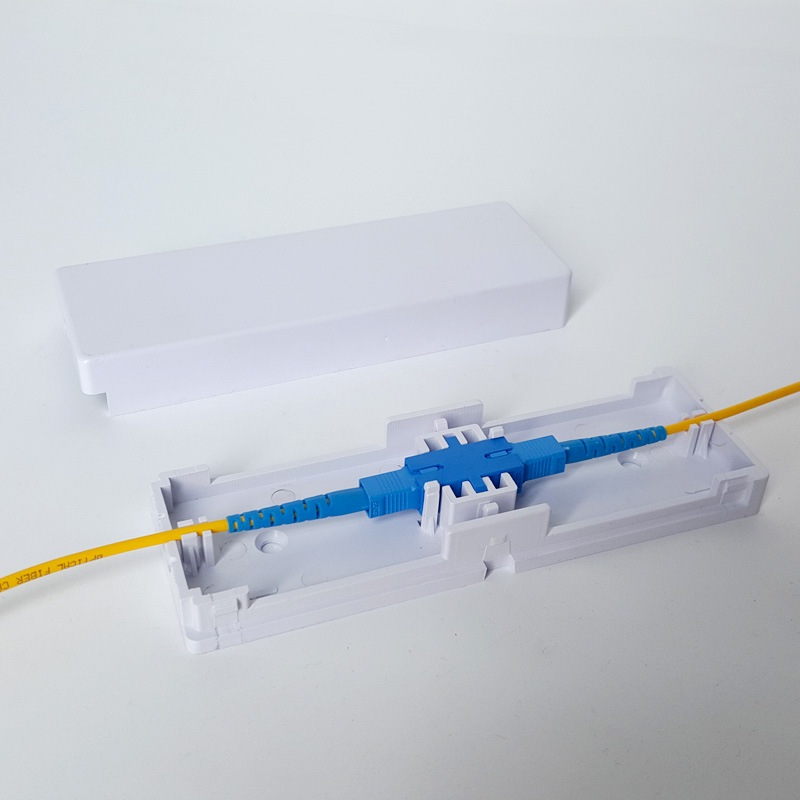

    Product photo:






    Parameters:

    TypeIndoor terminal box
    P/NKCO-FP-SCS-01
    Size115x86x22mm
    ColorWhite
    CapacityMax. 4 cores
    Insert loss≤ 0.2dB
    Return loss50dB (UPC), 60dB (APC)
    Durability1000 Mating
    Wavelength850nm,1310nm,1550nm
    Operating temperature-25°C~+40°C
    Storage temperature-25°C~+55°C
    Relative humidity≤85%(+30°C)
    Air pressure70Kpa~106Kpa
    ConnectorSC, FC, LC, ST, etc
    Cable0.9mm~10.0mm


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.
    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
