    PC Material IP65 Fiber Optic Splice Closure KCO-H2295 Inline Type 2 In 2 Out 12fo

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-H2295
    Certification : iSO9001, RoHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5,000pcs/week
    Delivery Time : 5~14 working days
    • Product Details
    • Company Profile

    PC Material IP65 Fiber Optic Splice Closure KCO-H2295 Inline Type 2 In 2 Out 12fo

    KCO-V2295 Horizontal Fiber Optic Splice Closure PC Material IP65 Aerial Joint Enclosure Box​


    Description:

    - High quality PC material, can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
    - Used in straight-through and branch application for cables of bundle fiber and ribbon fiber
    - Trays can be increased or reduced according to the application
    - Cylinder shape, perfect outline, thunder, erosion & aging resistance
    - Strong and reasonable structure with mechanical sealing structure filled with TPR rubber material, it can be opened after sealing and can be reused
    - Solid structure, easy to operation and maintain
    - Well water & dust proof
    - Suitable for aerial, duct, wall-mounted or buried
    - Unique grounding device to ensure the sealing performance, and at the same
    time easy and convenient for installation.


    Quick detail:

    - Name: Inline/ Horizontal Type Fiber Optic Enclosure Box

    - Part number: KCO-H2295

    - Size: 460*170*95mm

    - Weight: about 1.5kg

    - Cable entry port: 4 ports

    - Capacity of fibers: 96 cores

    - Splice tray number: max. 4 trays

    - Material: PC

    - Cable Diameter: 7.0-22.0mm

    - Working temperature: -40℃ to 65℃

    - Packing: 10pcs/ carton box


    Features:
    - Low IL Key Features
    - High reliability
    - High channel counts
    - Wide wavelength range
    - Large operating temperature range
    - Excellent Environmental & Mechanical Stability


    Application

    - FTTX (FTTP, FTTH, FTTN, FTTC)
    - Local Area Networks (LAN)
    - Test Equipment
    - CATV
    - Analog/Digital Passive Optical Networks (PON)

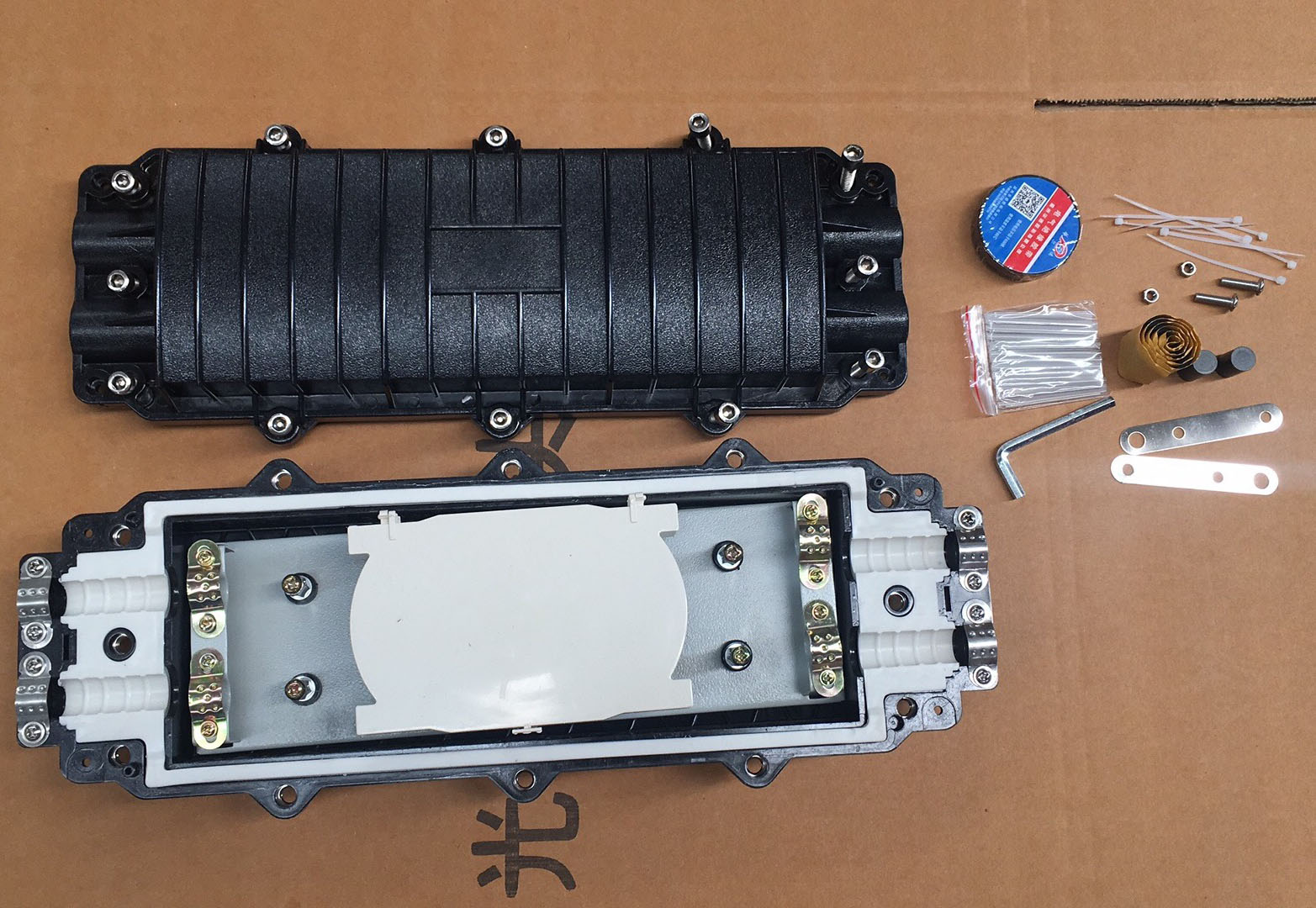

    Product pictures:


    Main parts:

    No.NameQuantityUsageRemark
    1Crust1 setProtecting fiber cable splices in whole
    2Fusion splice trayMax.4 trayFix fiber, Protect heat-shrinkable tube Sleeve
    3Foundation1 setFix cable,reinforced core and tray
    4Seal fitting1 setAir-proof between cover and bottom
    5Port plug4 piecesSealing empty ports
    6Valve1 setPressure measurement,inspection sealingConfigure by user

    Accessories list:

    No.Name of accessoriesQuantityUsageRemarks
    1Heat shrinkable tubeProtecting fiber splicesConfiguration as per capacity
    2Nylon tieFixing fiber with protective coatConfiguration as per capacity
    3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
    4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
    5Hanging hook1 setFor aerial use
    6Label tape1 pieceSign fiber
    7Spanner1 pieceInstall bolts of shell
    8Desiccant1 bagDesiccating air.

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
