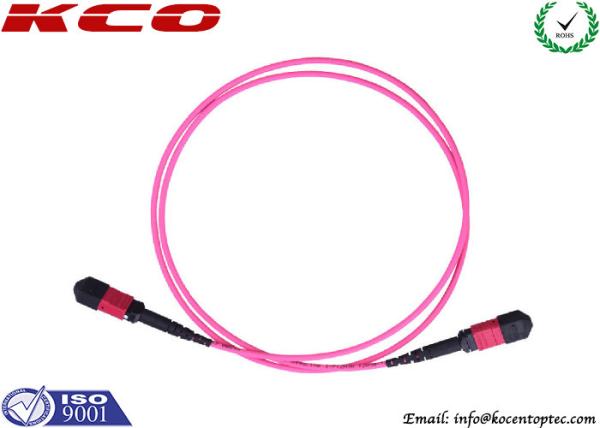

MPO fiber breakout cable OM4 truck patch cable pink cover 3.0mm​

KOCENT OPTEC LIMITED is focus on passive fiber optic product, MPO MTP fiber breakout cable is one of our best advantage products. If have any question about this product, welcome to call us by hotline telephone or e-mail to us any time.

About MTP/MPO fiber optic patch cord:

- MPO/MTP Single mode 3.0mm fiber optic truck cables

- MPO/MTP fiber optic harness patch cables

- MTP is the high dense degree of optical fiber pre-connect system,which is generally use in three areas.

- The Data Center application with high dense degree environment

- The optical fiber to the building

- The internal connector application in fiber equipment.

Descriptions:

- MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end.

- The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable.

- Female and Male MPO/MTP Connector is available and Male type connector has pins.

- MTP/MPO harness cable are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fibers cables to individual fibers or duplex connectors. The MTP/MPO harness cables are terminated with MTP/MPO connectors on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. Therefore, they can meet a variety of fiber cabling requirements.

- All MPO/MTP Connectors we use USConec Brand.

- All Kocentoptec's MPO/MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) Standard.

- We can do Standard type and Elite type both. For the jacket cable we can do 3.0mm round cable also can be flat jacketed ribbon cable or bare ribbon MTP cables.

- We can offer Single mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, 9/125, 50/125, 62.5/125, SM, MM, Simplex, Duplex, 12core MTP/MPO patch cables, 24core MTP/MPO patch cables, 48core MTP/MPO patch cables all is available.

Applications:

- FTTH , CATV, LAN, MAN, WAN, Test & Measurement

- Video transmission, Data transmission

- Active Device Termination

- Premise Installations

- Telecommunication and Data processing Networks

- Industrial, medical & military

- Systems Integration for Long Haul, Metro and Access Network

Features:

- Single mode and multi mode (flat) APC(catercorner 8 degree angled)available

- High fiber density (maximum 24 fibers for Multimode)

- Fiber in single connector: 4, 8, 12 24

- Insert/Pull latching connector

- High reflection loss with APC

- Comply with Telcordia GR-1435-CORE specification and Rosh standard

Product picutures:

MTP/MPO Connector Specifications:

MTP/MPO fiber optic patch cord Ordering Informations:

MPO/PC–MPO/PC-SM-12CORE–2M-LSZH

① ② ③ ④ ⑤ ⑥

Notices:

①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

②Ferrule End-face: PC, UPC, APC

③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

④Fiber Quantity: 4 core, 8 core, 12 core, 24 core

⑤Cable Length: 1, 2, 3 meter or customized

⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Our MTP/MPO patch cable packing ways:

OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 15 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customers. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passive product such as:

- Fiber optic cable (indoor cable, outdoor cable, ftth cable, tactical fiber optic cable),

- Fiber optic splitter PLC splitter,

- Fiber optic patch cable/ pigtail,

- MPO/MTP fiber optic solution products,

- Fiber optic terminal box,

- Fiber optic ditribution box,

- Fiber optic distribution frame and patch panel,

- Fiber optic splice closure box,

- Fiber optic adapter, fiber optic attenuator, fiber optic connector, fiber optic ferrule, fiber optic protection sleeves (large stock goods, always ready to delivery any time), etc.

With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 15 years of experience in production of passive fiber optic products.

Fast connector work shop:

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable.  All of patch cable is tested 100% before shipment.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost.

Customer can choose to send by internaltion express, by air, and by sea.
