    FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

    Ask Lasest Price
    Brand Name : EXFO
    Model Number : Max-710B
    Certification : ISO9001, RoHS, UL
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 1000 pcs/month
    Delivery Time : 2~5 working days
    • Product Details
    • Company Profile

    FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

    OTDR Max-710B tester OTDR FTTx/MDU Optical Time Domain Reflectometry


    COST-OPTIMIZED AND COMPREHENSIVE OTDR:

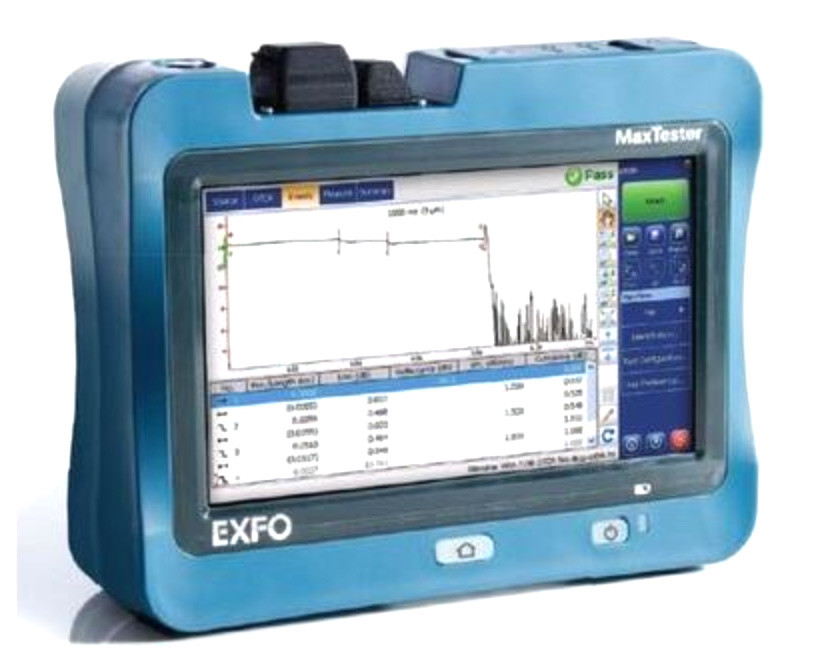

    - The MAX-710B is the first tablet-inspired OTDR that is handy, lightweight and rugged enough for any outside plant environment.

    - With a 7-inch, outdoor-enhanced touchscreen, the most efficient handheld display in the industry, it delivers an unprecedented userexperience.

    - Its intuitive and Windows-like GUI ensures a fast learning curve.

    - Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.

    - The Max-710B is a genuine last-mile OTDR from the world’s leading manufacturer.

    - It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for first-time-right results, every time.

    - It is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).

    - In addition to its amazing 12-hour battery life that will never let you down, it offers plug-and-play hardware options, like the VFL, power meter and USB tools.

    - Ultimately, the Max-710B is small enough to fit in your hand and big enough to fit all your needs!

    Key Features:
    - Handy, lightweight, powerful, tablet-inspired design
    - 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
    - 12-hour autonomy
    - Dead zones: EDZ 1m, ADZ 4m
    - Dynamic range of 30/28 dB
    - Rugged design built for outside plant


    Applications:
    - FTTx last-mile installation and troubleshooting
    - Short access network testing
    - FTTA-fi ber DAS installations
    - CATV/HFC network testing

    Specifications:
    DisplayTwo USB 2.0 ports
    RJ-45 LAN 10/100 Mbit/s
    Storage2 GB internal memory (20 000 OTDR traces, typical)
    BatteriesRechargeable lithium-polymer battery
    12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
    Power supplyPower supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
    Wavelength1310/1550nm
    Dynamic range30/28dB
    Event dead zone1m
    Attenuation dead zone4m
    Distance range0.1 to 160 km
    Pulse width5 ns to 20 us
    Linearity±0.05dB
    Loss threshold0.01dB
    Loss resolution0.001dB
    Sampling resolution0.04 to 5m
    Sampling pointsUp to 256 000

    Product pictures:

    FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

    FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

    FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710BFTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710BFTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

    FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

    Packing ways:
    According to export standard packing.

    Shipping:
    By International express: TNT, DHL, UPS, special line express, etc
    By air: CA, ZH, CZ, AA, AC, BA, etc
    By sea
