    Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment

    Ask Lasest Price
    Brand Name : AETeP
    Model Number : AT810
    Certification : ISO9001, RoHS, UL
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 1000 pcs/month
    Delivery Time : 2~5 working days
    • Product Details
    • Company Profile

    Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment

    Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment
    Product Name: AETeP optical time-domain reflectometer
    Model: AT810
    Introductions:
    - 7 inches full touch large color screen, a touch too intuitive GUI, provide you with an unprecedented test experience; lightweight, portable, rugged, 12 hours extraordinary life, ideal for fiber optic test environment.
    - AT800 series has optical performance, make sure your test accuracy; also provide VFL, power meter, fiber inspection function and other options, is the ideal choice for testing short-range fiber.
    Main feature:
    - 7 inches wide touch screen, professional, efficient UI (user interface) and UE (User Experience)
    - Lightweight, portable, full-featured, tablet design
    - Optical performance: Event small blind 1m, 5m little attenuation dead zone
    - Dynamic Range: 28dB-30dB
    - Short distance Resolution: 5cm
    - Life Duration: 12 hours
    - Full-featured: Option supports VFL, power meter, light source and the optical fiber end face detector
    Applications:
    - FTTH network construction, deployment, maintenance, certification
    - Local fiber optic network construction, deployment, maintenance, certification
    - Metro optical network construction, deployment, maintenance, certification
    Specifications:
    ModelAT810AT820AT830
    Wave length (nm)1310nm±20nm; 1550nm±20nm; 1625nm±20nm
    Dynamic range (dB) a30/28/2734/32/3137/35/34
    Events blind area(m)b211
    Attenuation blind area(m)c1055
    Pulse width5ns 10 ns 30 ns 50 ns 100 ns 200 ns 500 ns 1μs 2μs 5μs 10μs 20μs
    Scale range100m 400m 1.5km 3km 6km 12km 25km 50km 100km 200km 400km
    Sampling resolution(m)0.1~12.80.05~12.80.05~12.8
    sampling points64000
    Group of refractive index range1.30000~1.70000
    Distance measurement uncertainty(m)±(0.75m+0.005%×fiber length+sampling resolution)
    Group of refractive index range1.30000~1.70000
    linearity(dB/dB)0.05
    Loss threshold(dB)0.01dB
    Loss of resolution(dB)0.001 dB
    Accuracy of reflection(dB)±2 dB
    Measuring time range5s~5min,real-time
    Real-time refresh rate4 times/s
    display7in (178mm), 800x480 TFT Enhanced outdoor touch screen
    Connection portUSB2.0x1, USB power supply DC5V±0.05V@500mA RJ45x1, LAN, 10M/100M Macro SDx1, support 64GB
    Storage1GB Memory(Support 10000 OTDR curve) 8GB SD card (support 80000 OTDR curve)Optional
    Battery7.4 V 5300 mah lithium-ion battery pack, 7.4 Wh support 12 hours continuous working time
    Machine power consumption<3W
    Power supplyPower ac/dc adapter: ac input: 100-240V 50~60hz. DC output: 12v 1.5A. Total power: 18w
    Connector typeInterface: Standard PC, equipped with APC (when ordering, please declare) Adapter: Standard FC, equipped with SC/ST/LC (please statement when ordering)

    Mechanical and environmental parameters:
    Size (H*W*L)196*172*72mm
    Weight( included battery)<2kg
    Operating temperature-10℃~+50℃
    Storage temperature-40℃~+70℃
    Relative humidity0%-95% (condensation)
    Basic Function:
    Measurement modelManual, automatic, real time
    Custom threshold Settings8 groups
    Range migration SettingsHave, and it can display the negative events
    Interface style4 types optional
    Automatic correctionHave
    Online helpHave
    Restore the factory SettingsHave
    Support Chinese nameHave
    Screenshot functionHave
    Touch screen soft keyboard inputHave
    BrowserHave
    Timing shutdown and dormancyHave
    Dual wavelength testHave
    Real-time testsHave
    LanguageChinese, English, Spanish, French, Russian, Italian, Portuguese, German, Korean, Arabic for option)
    Remote testingHave
    Cloud application managementHave

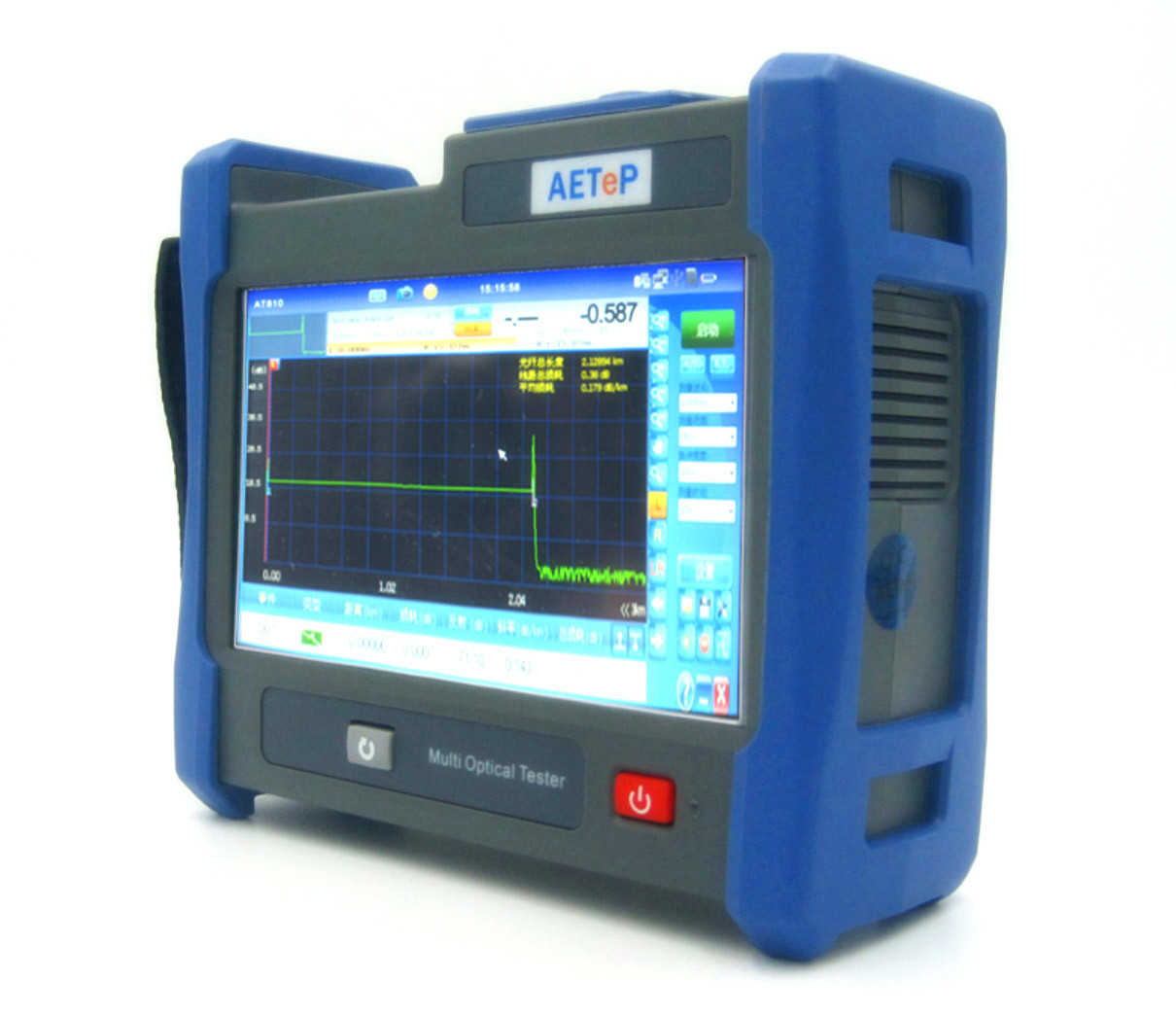

    Product pictures:

    Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test EquipmentOptical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test EquipmentOptical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test EquipmentOptical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test EquipmentOptical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test EquipmentOptical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test EquipmentOptical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment
