FTTH FC SC LC ST Fiber Optic Quick Connector FAC Fiber Fixed Length Tools

Descriptions:

- This is a new universal fixed-length stripping-rail stripping tool.

- Peeling coating layer of span for 10 to 30 mm, guide the cutting bare fiber span for 5 to 40 mm.

- Basically covers all the cold shut, embedded products quickly.

- The use of the strip coating (miller clamp function) : can on the back of the guide bar fixed-length stripping optical fiber coating layer.

1, Fixed-length stripping device: durability: stripping number 2000 or higher, ordinary fixed-length stripping stripping life only 200-300 times.

A: 19.5 mm

B: 22 MM

C: 24 mm.

2, Fixed-length rail (total cutting length)

A: 47 mm (straight type quick connector).

B: 35 mm (skin line optical).

C: 30 mm (embedded type quick connector common length).

D: 41 mm cold subgroups (other).

E: 42 mm cold subgroups (other).

Usage:

1. The first strip optical fiber coating.

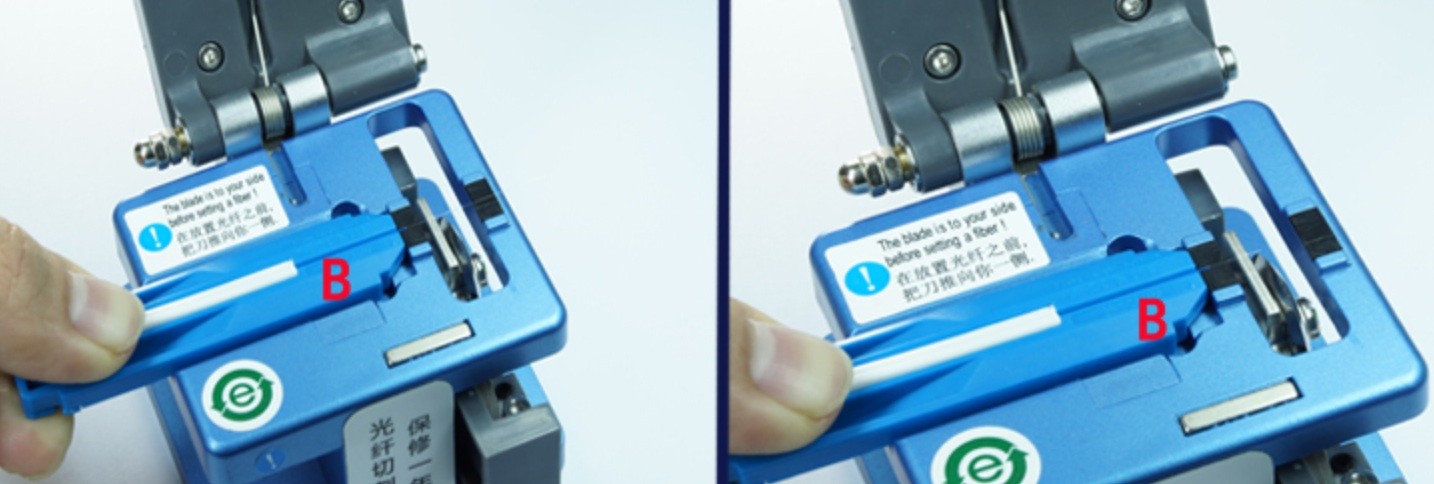

2. The guide, will be stripped bare fiber into the groove of stripping.Put away after article will guide the closure, finger slightly hard pull pin guide blade position of article bare fiber, strip coated layer.

3. When the guide rail is the stripping device must be smooth, stripped bare fiber to be included in the guide bar, then put them together into the cutting knife, to cut.

This product can be customized, can be applied to more than 95% of the market cold subgroups and quick connector, precision and durability reached the industry leading level.

Two features of fixed length length free combination collocation, specific parameters can refer to your hands cold subgroups (or quick connector) specifications, such as not sure instruction images will also be sent to customer service, to determine the required length.

Product pictures:

Model list:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
