2U 19'' inch fiber optic media converter chassis rack mount 14 slots

Description:

- 19 inch media converter rack mount classis is designed to supply 14 or 16 slots of various types of media converter modules at a central location for multiple segments cross connection.

- Users can transparently link backbone equipments such as switches, routers to LAN workgroup segments.
Because of each module operates independently, new modules may be added as requested.

- This flexibility allows the unit to grow with the network.
- Installation is easy, simply slide module into the chassis, then the media is connected.

- All of the RM-1400/ RM-1600 modules are hot swappable thus eliminating costly network downtime.
- RM-1400/ RM-1600 converter rack fits cleanly into any network environment.

- With a slim low profile chassis and a mix of 10Mbps, 100Mbps and Gigabit media converter cards, the RM-1400/ RM-1600 becomes the perfect solution for connecting today's evolving networks.

Features:
- 19’ 2U rack, easy for focus management
- 14 or 16 slots for media converter module
- Power AC 220V or DC -48V optional
- Power is backup 1+1
- Double /single fiber with bi-direction optional
- 10/100M, 1000M media converter module optional
- Auto-identify MDI/MDIX
- 10M, 100M, full/half duplex auto negotiation
- Optional choose storage transmit or straight mode
- Support 100Base-Fx fiber transmit standard

Parameter:
- Dimension: 426mm×278mm×88mm
- Input power: 220VAC or -48VDC
- Output power: 5V
- Maximum output voltage: 50W
- Weight: 5Kg
- Working temperature: -10℃～70℃
- Storage temperature: -20℃～80℃
- Humidity: 5%～95%(no-condensing)

Quick information:

- Name: Fiber Optic Media Converter Chassis Rackmount 19 inch

- Slots number: 14, 16 optional

- Speed: 10/100/1000M or 10/100M

- Fiber: single fiber, dual fiber

- Mode: single mode, multimode

- Wave length:

Single mode: 1310/1550nm,1490/1550nm

Multimode: 850nm/1310nm

- Transfer distance:

Single mode: 20~120km

Multimode: 0.5~2km

- Optical port: SC, FC, LC, ST optional

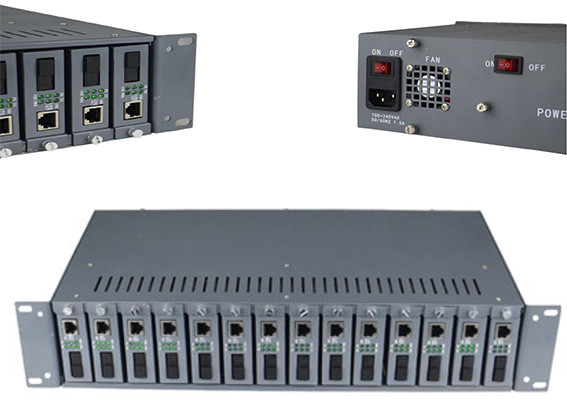

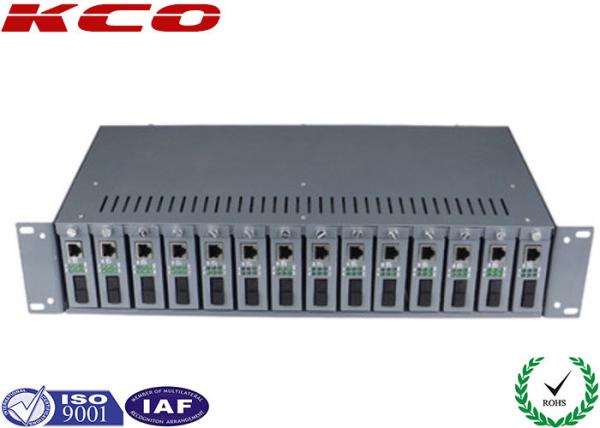

Fiber optic media converter product pictures:

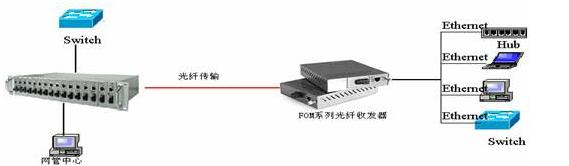

Applications:

Fiber optic media converter Specifications:

Package:

OEM Service: Label and package customized is always ready.

Otherwise, if you want to display your own brand LOGO one the equipment, it is no any problem. When your order quantity is more than 50 sets, we can do it FREE to you. Please call us or send e-mail to us with your LOGO and detail requirement, we will discuss more about it.
