RS232 Fiber Optic Modem , RS422 RS485 Fiber Optic Converter FC UPC

Details:

- RS232/422/485 Fiber Optic Modem is a type of RS-232/RS-485/RS-422 serial port fiber optic Modem.

- It adopts industrial standard design and its wall type outface design supports DIN-rail standard lead rail installation, featuring easy installation.

- Presently, many users make use of RS-232/RS-485/RS-422 serial port fiber optic Modem to solve the electromagnetic interference in engineers and to extend the RS-232/RS-485/RS-422 serial port transmission distance to several or even tens of kilometers.

- RS232/422/485 Fiber Optic Modem can provide users with RS-232/RS-485/RS-422 serial port end-to-end transparent transmission.

- Since signals are transmitted over fibers and these optical signals are free of electrical conductivity, they have strong anti-interference capacity and are immune to high-voltage power or thunders.

Features:

- Zero-Delay automatic forwarding

- Supporting three types of interfaces: RS232/485/422

- Automatic detection of serial port rate, judgment and control of data transmission direction

- Working wavelength: 850 nm (multi-mode); 1310 nm (single mode)

- Maximum communication rate: 500 Kbps

- Optional optical interfaces: ST/ SC/ FC

- Up to 2 kilometers in multi-mode transmission and up to 40 kilometers in single mode transmission

- Broad voltage inputs: 5-40 VDC or 85-265 VAC

- The interface supports 1500W surge protection and 15KV ESD protection

- External power supply

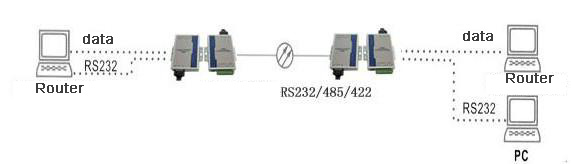

Applications:

Communication Indexes:

Environmental Indexes:

Power Indexes:

Appearance Indexes:

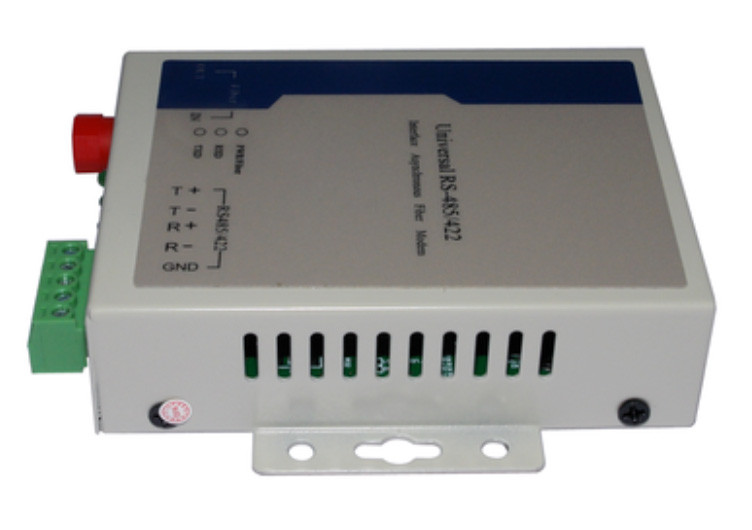

Product pictures:

Package:

Carton box, wooden pallet

Shipping:

- By International Express such as TNT, DHL, UPS, etc

- By Air: CA, HA, AA, EA, etc

- By Sea
