    PDLC ODLC Duplex Fiber Patch Cable

    PDLC ODLC duplex fiber optic patch cable outdoor water proof GYFJH 7.0mm LSZH cover


    Quick Details about ODLC PDLC outdoor fiber optic patch cable assemblies:

    - Type: ODLC/PDLC fiber optic patch cord

    - Mode: Single mode and Multimode

    - Cable Fan-out: 0.5m, 1m, or customized

    - Connector: LC duplex

    - Ferrule End-face: PC, UPC, APC

    - Cable type: Fiber optic outdoor cable GYFJH

    - Cable diameter: 7.0mm

    - Cable cover material: LSZH

    - Cable core: 2 cores, 4 cores, 6 cores...or customized

    - Cable length: 50m, 70m, 100m….or customized


    Description of ODLC PDLC outdoor fiber optic patch cable assemblies:

    The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the Antenna applications.


    Features of ODLC PDLC outdoor fiber optic patch cable assemblies:

    - FTTA , WiMax base station, CATV outdoor Application.

    - Optional Diameter: 4.8mm, 7.0mm or Customized.

    - Optional Jacket: LSZH, PE; Armored or Non Armored.

    - IP67 Waterproof protection.

    - Standard Duplex LC connector, well connected with standard LC adaptor.

    - Available Single mode and Multimode.

    - IP67 protection, salt-mist proof, humidity proof, dust proof.

    - Aluminum housing, compact design.

    - Broad temperature range and wide range of indoor and outdoor cables.

    - Easy Operation, reliable and cost-effective Installation.


    Applications of ODLC PDLC outdoor fiber optic patch cable assemblies:

    - Telecommunication networks

    - CATV, LAN, MAN, WAN, Test &Measurement

    - Optical access network

    - Fiber optic communication networks

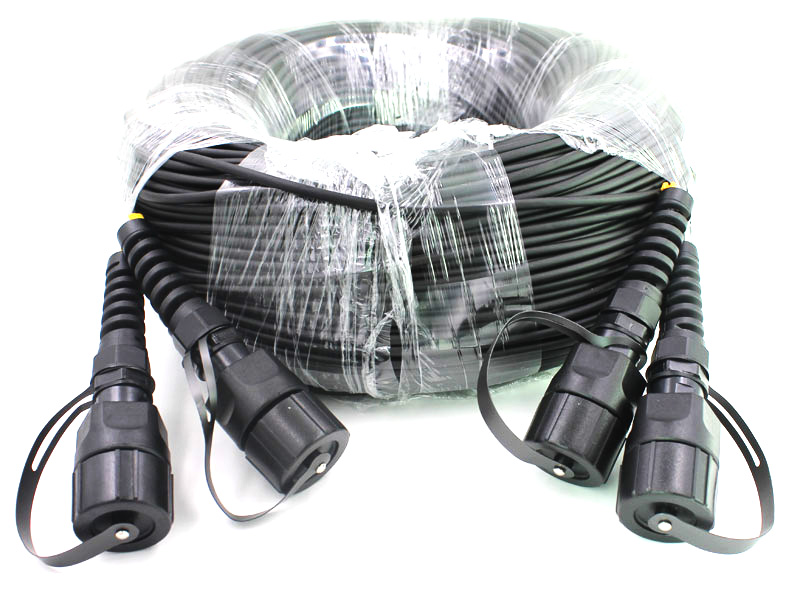

    ODLC PDLC outdoor fiber optic patch cable assemblies product pictures:


    Specification of ODLC PDLC outdoor fiber optic patch cable assemblies:

    ItemSingle mode, Multimode
    Ferrule End-facePCUPCAPC
    Insert attenuation≤0.3dB≤0.3dB≤0.3dB
    Return loss≥45dB≥50dB≥55dB
    repeatability≤0.1dB≤0.1dB≤0.1dB
    Operation temperature-20°C~+70°C(PVC)/-40°C~+90°C (LSZH/PE)
    Outer diameter1.6mm(fan-out cable part), 4.8mm, 7.0mm

    ODLC PDLC Assembly Performance:

    ItemData
    Insertion Loss≤0.2dB
    Return LossSM/UPC≥55dB, SM/APC≥65dB, MM≥35dB
    Mechanical life500cycles
    Working temperature-40°C~+70°C
    Storage temperature-40°C~+70°C
    Operating temperature-10°C~+50°C
    Protection LevelIP67
    Tensile DataTensile between junction and fiber cable≥100N
    AuthenticationMeet with RoHS

    Outdoor fiber optic cable Specification:

    ItemData
    fiberOS2,OM1,OM2,OM3,OM4
    Tension memberAramid Kevlar, Armored Tube
    Max. attenuation

    SM: ≤0.34dB/km at 1310nm, ≤0.20dB/km at 1550nm

    MM: ≤0.60dB/km at 1300nm, ≤2.3dB/km at 850nm

    Tensile resistance (short term)500N (no breakage)
    Crush resistance(short term/long term)1000N/100mm
    Inflaming retardingIEC 60332-3
    Temperature-40~+70°C
    UvioresistantPASS
    AuthenticationMeet with RoHS &UL

    Our ODLC PDLC outdoor fiber optic patch cable assemblies packing ways:


    OEM/ODM service: Our OEM and ODM service is always ready!
    If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

    Shipping:
    By International express: TNT, DHL, UPS, special line express, etc
    By air: CA, ZH, CZ, AA, AC, BA, etc
    By sea
