    FC Bare Fiber Adapter

    Ask Lasest Price
    Brand Name : kCO, Kocent Optec Limited
    Model Number : FC/UPC, FC/APC
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 50,000 pcs/month
    Delivery Time : 2~5 working days
    • Product Details
    • Company Profile

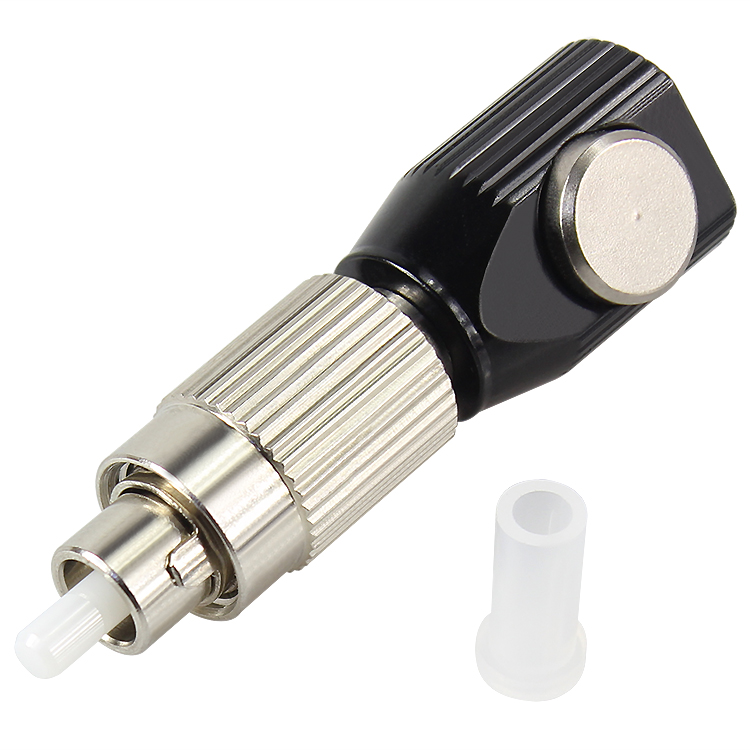

    FC Bare Fiber Adapter

    Single mode FC/UPC bare fiber adapter square type, round type


    Descriptions:

    - The Bare fiber adapter is a special type of fiber optic coupler that is mainly used for testing insert loss of fiber pigtails and other fiber optic devices.

    - It is one of the indispensable components in fiber optic testing applications.

    - After connecting optical fiber to the fiber optic adapter, the insert loss testing of the other end or the whole fiber can be completed.

    - The most remarkable feature of bare fiber adapter is reusable.

    - And bare fiber adapter also characterized by quick and easy assembly, small size, durability and long lifetime.

    - Our company provides 5type bare fiber adapter, including SC, FC, LC, ST, SMA, which all can be used more than 1000times.


    Bare fiber optical adapter features:

    - Simplex and quickly interconnect.
    - Low insertion loss.
    - Repeatability and exchangeability good.
    - Stabilize the credibility.
    - Interchangeable connector heads available.


    Bare fiber optical adapter applications:
    - Easy to installation and operation.
    - Compliant with RoHS standards.

    - Testing fiber on the reel.
    - Optical fiber through connection test.
    - Consistent good quality proven by repeated tests.

    - Two-way communication during optical-fiber cable installation and maintenance.
    - First-aid repair, temporary connection and testing on optical fiber project.

    - Round type and Square type are available.


    Product pictures:

    Adapater specifications:


    ShapeSquare / Round
    ConnectorFC/UPC, FC/APC, SC/UPC, SC/APC, ST/PC, LC/UPC, LC/APC
    Applicable fiberSingle mode & Multi mode
    Ferrule diameter123-127 um
    Ferrule outer diameter2.499mm 1.249mm
    Cable diameter250um & 900um
    IL≤0.20dB
    Repeat ability<0.2dB
    Tensile strength100g
    Plug time>1000 times
    Operating Temperature-40℃ ~+85℃

    Packaging:

    FC Bare Fiber Adapter


    OEM/ODM Service: If you want to display your own brand LOGO on the label or packge bag or package carton box, it is no any problem! Our lable printer is already to perform this task!


    Shipping:
    By International express: TNT, DHL, UPS, special line express, etc
    By air: CA, ZH, CZ, AA, AC, BA, etc
    By sea
