SC APC Fiber Optic Adapter

    Buy cheap SC APC Fiber Optic Adapter from wholesalers

    Buy cheap SC APC Fiber Optic Adapter from wholesalers
    • Buy cheap SC APC Fiber Optic Adapter from wholesalers
    • Buy cheap SC APC Fiber Optic Adapter from wholesalers

    SC APC Fiber Optic Adapter

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : SC/APC, SLC/UPC, LC/PC
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 500,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

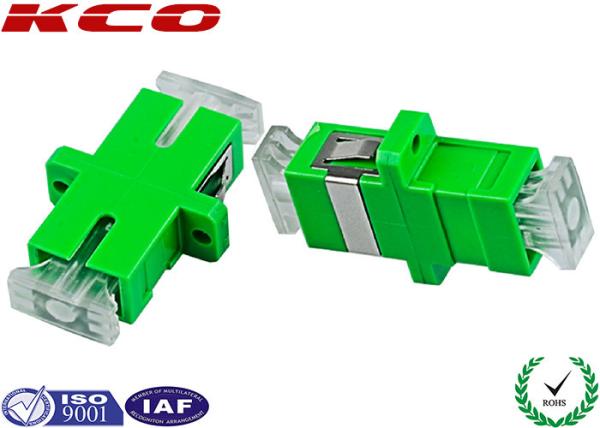

    SC APC Fiber Optic Adapter

    SC/APC mono mode fiber optic adapter with transparent color cap


    Descriptions:

    - Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

    - SC fiber optic adapter is available in single mode UPC APC and MM PC to sastify to connect single mode or multimode patch cables.

    - The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.


    Applications:

    - Testing instruments

    - Connection between devices

    - Connection between fiber optic patch cords

    - CATV, MANS, WANS

    - Fiber to the home, Fiber to the X


    Advantage of the fiber optic adapters:

    - These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.

    - Low Insertion Loss means there is little reduction in light intensity along the transmission router.

    - High Reliability

    - Also compliant with the IEC and ROSH standards

    - Our range of fiber optic cable adapter can consistent good quality as is proven by repeated tests. It is interchangeable with similar devices built to the same standards.

    - We provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.


    Product pictures:



    Specification of fiber optic adapters:

    ParameterSpecifications
    Mating Connector TypeSC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
    Fiber Type of ConnectorSingle ModeMultimode
    Adapter ColorBlue, green, metallicBeige, Metallic
    Testing Wavelength1310nm,1550nm850nm,1300nm
    Insert LossTypical≤0.15dB, max≤0.2dBTypical≤0.15dB, max≤0.2dB
    Repeatability≤0.10dB
    Exchangeability≤0.20dB
    Durability1000Mating, max≤0.20dB
    Housing MaterialPlastic or metal
    Operating Temperature-20°C~+70°C
    Storage Temperature-40°C~+85°C
    Alignment SleeveCeramic (ZrO2) or customized
    Channel NumberSimplex, duplex, quad .

    Reliability testing:

    ItemTest NameAdditional Insertion LossAdditional Return Loss
    1Mechanical durability<0.2dB<5dB
    2Repeatability<0.2dB<5dB
    3Lock strength<0.2dB<5dB
    4Low strength<0.2dB<5dB
    5High temperature<0.2dB<5dB
    6Steaming<0.2dB<5dB
    7Temperature cycle<0.2dB<5dB
    8Vibration<0.2dB<5dB
    9Drop<0.2dB<5dB

    Our fiber optic adapters packing ways:


    SC APC Fiber Optic Adapter


    OEM Service: Label customized is available

    If you want to your own Logo display on the package plastic box or carton box, it is no problem. Our label printer is already to service to you!


    Shipping:
    By International express: TNT, DHL, UPS, special line express, etc
    By air: CA, ZH, CZ, AA, AC, BA, etc
    By sea
