ABS PPR PC 1in 5out Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box

Introduction:

- Fiber optic closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings.

- Fiber Splice Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

- KCO-V15-96-ZG fiber optic splice closure is dome type fiber optic splice closure box, it is water-proof, can use for outdoor application.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required.
- The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance

Feature:

- The product is made of high-quality and impact resistant plastics, and has a standard user interface;
- Anti-UV, impact resistant and waterproof;
- Can be mounted on the wall or pole;
- Unique and reversible middle plate can be flipped≥180 oC, that provides more distinctive area for fiber splicing and
splitting, and the line crossing is reduced.
- Cable can access the box with no need of breaking.

Application

- The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.

- FTTX (FTTO, FTTH, FTTN, FTTC)
- Local Area Networks (LAN)
- Test Equipment
- CATV
- Analog/Digital Passive Optical Networks (PON)

Quick detail:
- Name: Mini Size Heat Shrink Port Fiber Optic Splice Closure
- Type: Dome type, or vertical type​
- Part number: KCO-V6-48-ZG
- Size: 330*100mm
- Weight: 0.9kg
- Cable entry port: 1 ports
- Cable out port: 5 ports

- Cable Diameter: 2.0-18.0mm
- Capacity of fibers: 24 cores

- Max. Capacity: 48 cores
- Splice tray number: max. 2 trays
- Material: PC/ ABS / PP Plastic
- Water-proof grade: IP65

- Application: Outdoor
- Working temperature: -30℃ to 60℃
- Install way: pole mount, aerial, underground, pipe line, ...
- Life time: >25 years

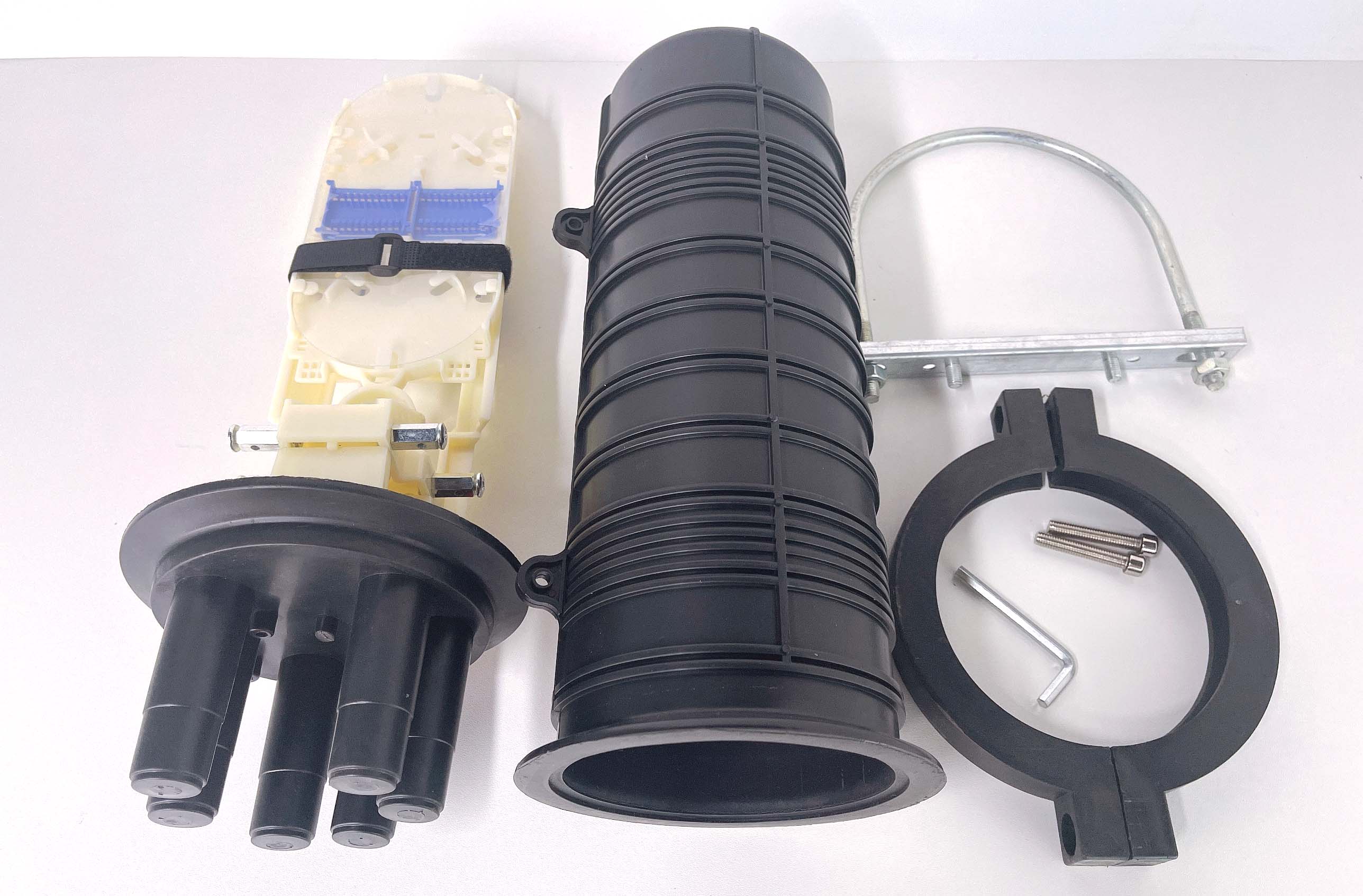

Main Components:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
