KCO-101M-96 Horizontal 12fo 24fo 48fo 96fo Aerial Outdoor Optical
Splice Closure Joint Box
Description:
- KCO-101M-96 fiber optic splice clusre box is design for outdoor fiber optic
cable connection and protection.
- It is suitable for the connection of the outdoor fiber optic
cable, using for aerial, manhole or underground, ....
- It is waterproof, match IP67 grade.
- The splice closure cable port is mechanical type. It can be
opened again and reused after installation. Each optical cable and
fiber can be operated individually.
- The splice closure casing is made of quality engineering plastics
such as ABS or PC or PP. With good performance of anti-erosion
against acid and alkali salt, anti-aging, as well as smooth
appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of
resisting wild environment and intensive climate changes and
serious working environment.
- The splice trays is inside the closure are turn-able like
booklets, and have adequate curvature radius and space for winding
optical fiber to make sure the curvature radius for optical winding
40 mm.
Applications:
- 3G, 4G, 5G network
- FTTx (FTTH, FTTA, FTTB, FTTO, FTTC, ...)
- WAN, LAN
- PON, GPON
- CATV networks
- Data center
- Telecom network
- Local area networks
- Telecommunication networks
- Data communications networks
Features:
- High quality PC, ABS, PPR material optional, can ensure harsh
conditions such as vibration, impact, tensile cable distortion
and strong temperature changes.
- Solid structure, perfect outline, thunder, erosion and adding
resistance.
- Strong and reasonable structure with mechanical sealing
structure, can be opened after sealing and cab be reused.
- Well water and dust proof, unique grounding device to ensure the
sealing performance, convenient for installation.
- The splice closure has a wide application range, with good
sealing performance, easy installation, produced with high strength
engineering plastic housing, with anti-aging, corrosion resistance,
high temperature and high mechanical strength and so on.
Specification:
Product Name | Fiber optic splice closure |
Type | dome type (vertical type) |
Cores | 96cores |
Seals | mechanical seal |
Material | ABS, PC |
Cable out of the tube configuration | Up to four out of the tube fiber optic cable |
| P/N | KCO-H101M-96 |
| Size(mm) | 450*150 |
| Gross weight (kg) | 1.4 |
| Port no. | 4 (2in 2out) |
| Cable dia. (mm) | 8~18 |
| Tray no. (pc) | 4 (24fo/tray) |
| Min. Capacity (fo) | 12 |
| Max. Capacity (fo) | 96 |
Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can
withstand 1000N axial tension, to maintain 1 min, no change in air
pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa,
and it can bear the horizontal uniform pressure of 2000N / 10cm.
The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box
above the 1.6 drop 1 kg steel ball, the impact of three times, the
box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension
load 150N, bending angle ± 45°, 10 cycles, no change in air
pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque
50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak
1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the
insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr,
15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ±
5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The
temperature at -40 ℃ for 2hr, the box without deformation, no
leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ±
5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the
pressure drop amplitude ≤ 5kPa.

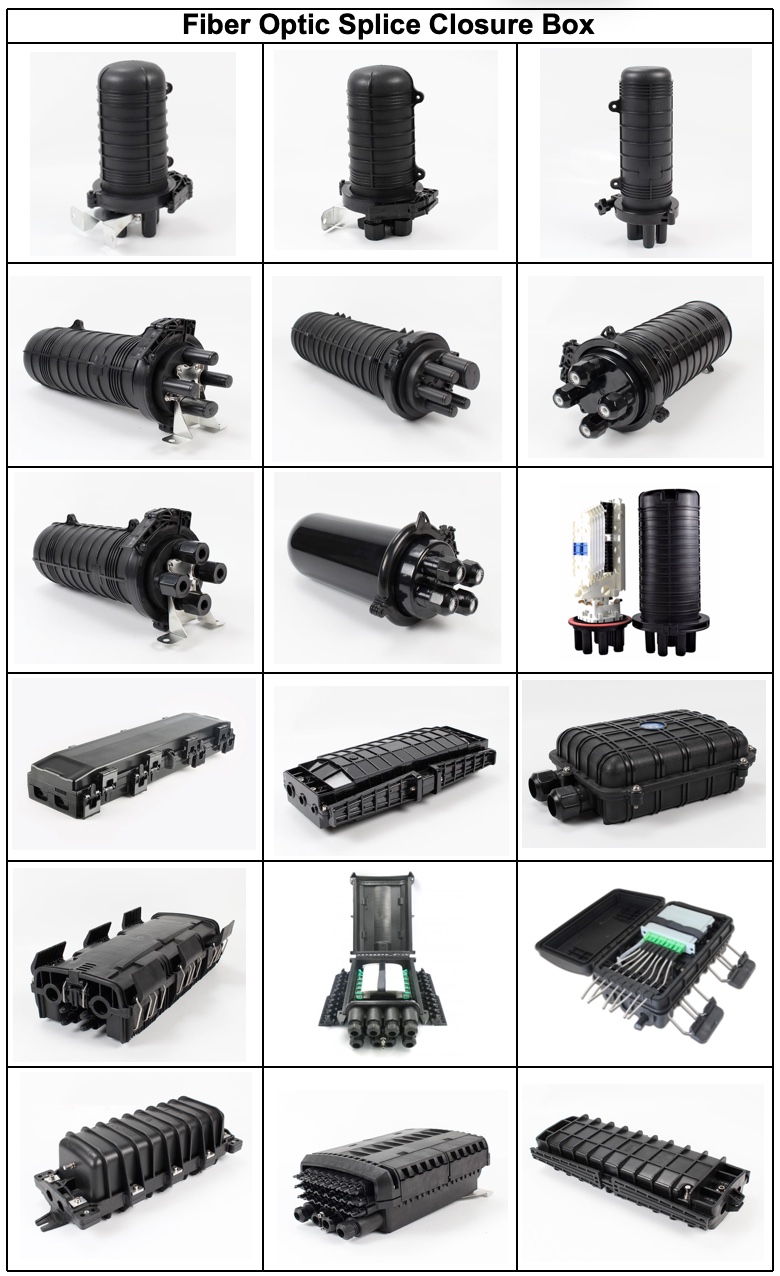

Relation products:
