    LC UPC Wavelength Division Multiplexer DWDM ABS Modular 100G 50GHz

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-DWDM-Mux-Module-9CH-0.9-LCU
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 set/ month
    Delivery Time : 5~8 days
    • Product Details
    • Company Profile

    LC UPC Wavelength Division Multiplexer DWDM ABS Modular 100G 50GHz

    LC UPC Wavelength Division Multiplexer DWDM ABS Modular 100G 50GHz


    Descriptions:

    - Dense WDM (DWDM): DWDM is defined in terms of frequencies.

    - DWDM’s tighter wavelength spacing fits more channels onto a single fiber, but costs more to implement and operate.

    - DWDM is for systems with more than eight active wavelengths per fiber.

    - DWDM dices spectrum finely, fitting 40-plus channels into the C-band frequency range.

    - Wavelength-division multiplexing (WDM) technology combines multiple wavelengths into a single optical fiber. This technique enables better fiber utilization, as it increases fiber capacity by a factor of 16-96 and enables building effective optical networks.

    - The DWDM dense division multiplexing architecture enables the fitting of multiple wavelengths on a single fiber and supports long haul, metro and DCI applications with capacities of 10G/100G/200G/400G per wavelength.


    Product advantage:

    - One of the biggest advantages of DWDM is the use of optical amplifiers, which can amplify the entire DWDM spectrum and overcome long spans of attenuation and fiber loss, enabling cost-effective transmission over long distance.

    - The optical amplifiers are managed and configured as part of the optical network and have adjustable gain and operation modes.

    - The optical multiplexer/demultiplexer (mux/demux) supports 4 to 96 DWDM channels in the fiber, with 50GHz, 75GHz and 100GHz spacing, according to the output standards.


    Product photo:


    Key Features

    - 100GHz ITU Channel Spacing (100GHz ITU)
    - Low insertion loss
    - Broadband transmission
    - High channel isolation
    - High stability and reliability
    - Epoxy-free optical path


    Applications
    - DWDM System
    - CATV networks

    - PON Systems

    - FTTx Systems

    DWDM C-band λc Wavelength Guide

    ITU Channel CodeWavelengthITU ChannelCodeWavelength
    211560.61411544.53
    221559.79421543.73
    231558.98431542.94
    241558.17441542.14
    251557.36451541.35
    261556.55461540.56
    271555.75471539.77
    281554.94481538.98
    291554.13491538.19
    301553.33501537.4
    311552.52511536.61
    321551.72521535.82
    331550.92531535.04
    341550.12541534.25
    351549.32551533.47
    361548.51561532.68
    371547.72571531.9
    381546.92581531.12
    391546.12591530.33
    401545.32601529.55

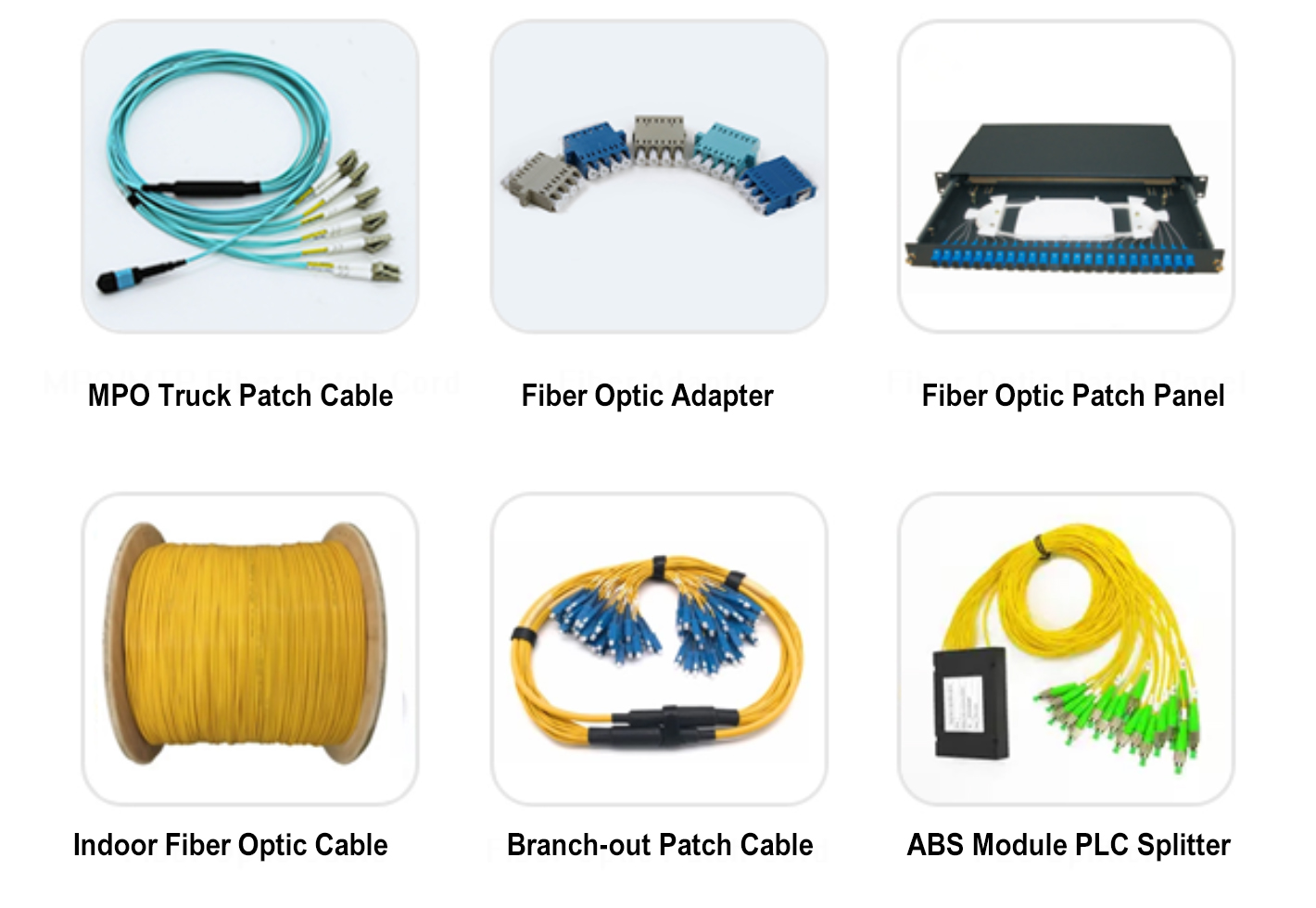

    Relation products:


    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
