EchoLife Huawei EG8141A5 1GE 3FE LAN 2.4G WIFI 5dbi Antenna ONU XPON GPON EPON ONU

Huawei EG8141A5 Description:

- The EchoLife EG8141A5, an optical network terminal (ONT), is a high-end home in FTTH solution.

- By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

- The EG8141A5 provides one POTS ports,four FE Internet port.

- The EG8141A5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

Huawei EG8141A5 Feature:

- Conform to IEEE802.3ah standard.

- Support 4094 VLANs (802.1Q).

- Support IGMP Snooping.

- Support Ethernet port ratelimit loop detection.

- Support power failure alarm.
- Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services.

- Support frame filtering and suppression.

- Support standard 802.1Q Vlan function, support VLAN conversion.

- Support Dynamic Bandwidth Allocation (DBA) function.

- Support QoS, including traffic flow classification, priority marking, queue anddispatch, traffic shaping and traffic control, etc.

- Single ONU supports up to 1 LLID.

- Support lightning protection for power supply and lightning protection for service port.

Huawei EG8141A5 Physical features:

- Power supply: 12VDC

- Power consumption: 6W

- Temperature:

Working temperature:0~55℃
Storage temperature: -30~60℃

- Relative humidity: 10~90% (non-condensing)

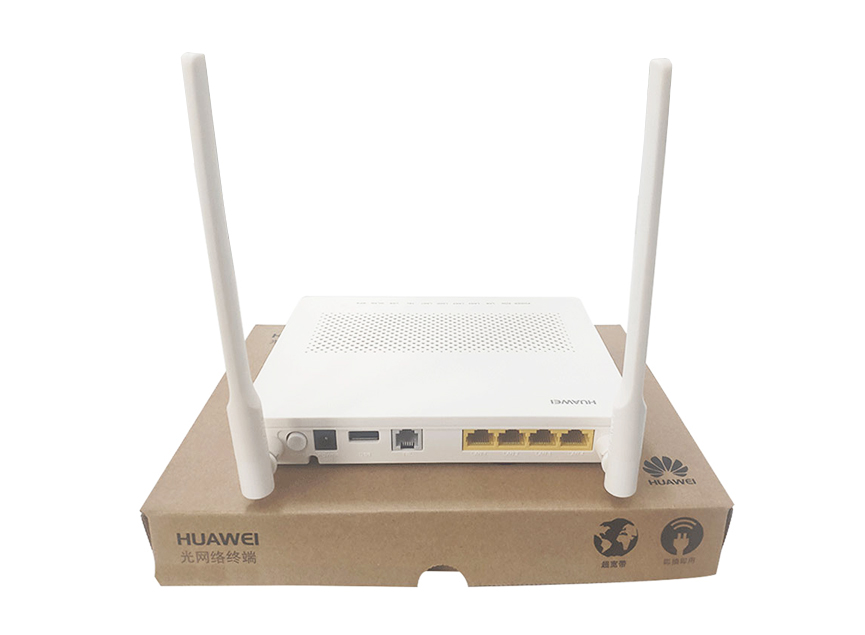

Huawei EG8141A5 photo:

Huawei ONU Main Catalogy:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 15 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customers. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passive product such as:

- Fiber optic cable (indoor cable, outdoor cable, ftth cable, tactical fiber optic cable),

- Fiber optic splitter PLC splitter,

- Fiber optic patch cable/ pigtail,

- MPO/MTP fiber optic solution products,

- Fiber optic terminal box,

- Fiber optic ditribution box,

- Fiber optic distribution frame and patch panel,

- Fiber optic splice closure box,

- Fiber optic adapter, fiber optic attenuator, fiber optic connector, fiber optic ferrule, fiber optic protection sleeves (large stock goods, always ready to delivery any time), etc.

With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 15 years of experience in production of passive fiber optic products.

Fast connector work shop:

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable.  All of patch cable is tested 100% before shipment.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost.

Customer can choose to send by internaltion express, by air, and by sea.
