    IP68 Waterproof Field Assembly Fast Connector FTTH Drop Cable SC Fast Connector

    Ask Lasest Price
    Brand Name : KCO
    Model Number : KCO-FOAC-SCA-OD-HW
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 100,000pcs/month
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    IP68 Waterproof Field Assembly Fast Connector FTTH Drop Cable SC Fast Connector

    IP68 Waterproof Ftth Drop Cable Fiber Optic Assemblies Compatible Mini Optitap H SC Fast Connector


    Description:

    - Mini IP SC series field assembly fast connector is a new design outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector /adapter.

    - It’s mainly used for FTTH outdoor installation.

    - It’s small size and easy to be installed in outdoor with IP67 grade.

    - Mini SC outdoor fast connector is an excellent solutions with Huawei device and no need terminated the connector in laboratory.

    - It can bot field assembled very easy to save time and short the project time.


    Application:

    - FTTH & Outdoor Fiber Terminal End.

    - Harsh Outdoor Using Environment.

    - FTTA BBU RRU.

    - Data Video Transmission.

    - Optical Fiber Access Of Mobile Base Station.


    Technical Data:

    Waterproof RateIP68.(1M ,1hour)
    Applicable optical cable2.0x3.0mm,3.0mm ,5.0mm
    Insertion loss≤0.50dB
    Return loss≥55dB
    End face performanceConform to YD T 2341.1-2011
    Mechanical durability1000 times
    Cable tension2.0x3.0mm (Ttap Fast Connector)≥30N; 2Minute
    2.0mm,3.0mm (Ttap Connector)≥30N; 2Minute
    5.0mm (Ttap Connector)≥70N; 2Minute
    Torsion of optical cable≥15N
    Drop performanceAllow 10 drops under 1.5m height without abnormal performance
    Operation temperature2.0x3.0mm (Ttap Fast Connector)-10℃~+70℃
    2.0mm,3.0mm (Ttap Connector)-40℃~+80℃
    5.0mm (Ttap Connector)-40℃~+80℃
    Hot and humid working environmentLong term operation under 90% relative humidity ,70 ℃

    Features:

    - Spiral clamping mechanism ensures long-term reliable connection.

    - Guide mechanism, can be blinded with one hand, simple and quick, connect and install.

    - Seal design: It is waterproof, dust-proof, anti-corrosion and so on.

    - Compact size, easy to operate, durable.

    - Through the wall seal designReduce welding, connect directly to achieve interconnection.

    - Can use with many type of fast connector such as SC, LC, FC, ST, ...

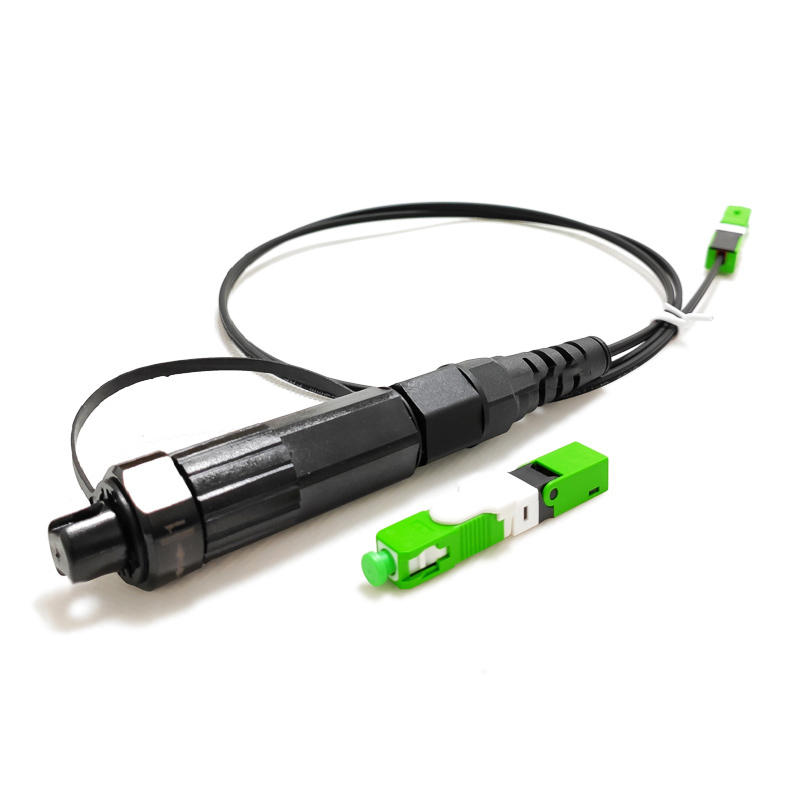

    Product photo:



    Relation products:


    OEM/ODM Service:
    - If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

    Packing:
    - According to Stardard Export Packing.
    - Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
    - Standard export sea port: Shenzhen, Hongkong, Ningbo
    - Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
