FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector

KOCENT OPTEC LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector from wholesalers

    Buy cheap FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector from wholesalers
    • Buy cheap FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector from wholesalers
    • Buy cheap FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector from wholesalers
    • Buy cheap FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector from wholesalers
    • Buy cheap FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector from wholesalers

    FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTTA-10B
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FTTA 10 Ports NAP 1*8 Splitter Fiber Optic Terminal Box with Water Proof Connector

    FTTA 10 Ports 8 Ports Compatibel With OptiTap Optica Fibra NAP Terminal Box

    Description:

    - 10 Port CTO/NAP/FAT Box is designed with 10 port of waterproof connector port. It is competible with Huawei Mini SC Connnector or Corning OptiTap Connector.

    - It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing.

    - All ports are equipped with hardened adapters.

    - KCO-FTTA-10B outdoor water-proof fiber optic splitter terminal access box is able to hold up to 10 subscribers.

    - It is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 8 x drop cable in FTTx network system.

    - It integrates fiber splicing, splitting, storage and cable management in one solid protection box.

    - It can connect the drop cable with feeder cable as the FDB 10port fiber optic distribution box in the FTTx network, which is cable to meet at least 10 users requirements. fiber distribution box can help fiber cable splicing, splitting, storage, and termination management with suitable space in a solid protection enclosure box.

    - It is used as a termination point for 1pc of ISP cable to connect with 1pc of OSP cable and 8pcs of drop cable in FTTx network system.

    - It integrates fiber splicing, splitting, storage, and cable management in one solid protection box.

    - FTTH Pre-connected Fiber Optical NAP Splitter Distribution boxes is widely used in outdoor.
    - FTTH Solutions, assembly method can be wall mounted, pole mounted.


    Features
    - The body is made of high quality engineering plastic with good strength;

    - Material: PC+ABS

    - Color: Black
    - With good water-proof performance, suitable for indoor and outdoor natural environments;

    - Waterproof grade can match IP67 for outdoor using.
    - With water-proof adapter, the box can be operated more conveniently;

    - The drop leaf can be installed 2 pcs of 1*4 & 1pc of 1*8 or 1pc of 1*9 tube splitter or also can install 1pcs 1*2 splitter and 1pc 1*8 Splitter.
    - It designed for connected with two different waterproof adapters, OptiTap or MINI SC/APC Adapters


    Application:

    - Passive fiber optic system

    - FTTH,

    - FTTA,

    - FTTB,

    - FTTO,

    - Telecom Tower,

    - CATV system,

    - WAN,

    - LAN, ...


    Technical data:

    - Environmental requirement

    Working temperature: -40℃~+85℃

    Relative humidity: ≤85% (+30℃)

    Atmospheric pressure: 70KPa~106Kpa

    - Main technical datasheet Insertion loss: ≤0.15dB

    UPC return loss: ≥50dB

    APC return loss: ≥60dB

    - Thunder-proof technical datasheet

    The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.

    The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

    - Photoelectric performance
    Connector attenuation (insertion, interchange, repetition) ≤0.3dB.
    Return loss: APC ≥60dB, UPC ≥50dB, PC ≥40dB,
    - Main mechanical properties parameters
    Connector insertion and removal durability life > 1000 times

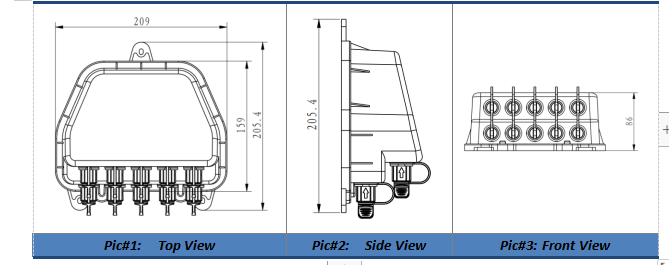

    Product Size:


    Specification:

    P/NKCO-FTTA-10B
    Dimension (A*B*C) /mm209*205*86
    Max. Capacity4 cores (dual fiber)
    Cable exit10 pcs water-proof connectors
    Splitter quantity2pcs 1*4 mini type splitter
    Waterproof gradeIP68
    MaterialPC+ABS
    ColorBlack
    Impact gradeIK10

    Usage Solution:

    Products installation:

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
