    SFP-GE-T 100m SFP Fiber Optic Transceiver Module RJ45 1GE Copper 1.25G

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-SFP-GE-T
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    SFP-GE-T 100m SFP Fiber Optic Transceiver Module RJ45 1GE Copper 1.25G

    SFP-GE-T 100m RJ45 1GE Copper 1.25G SFP Optical Transceiver Module

    Descriptions:

    - Small Form-factor Pluggable (SFP) is a compact, hot-pluggable network interface module format used for both telecommunication and data communications applications.

    - An SFP interface on networking hardware is a modular slot for a media-specific transceiver, such as for a fiber-optic cable or a copper cable.

    - The advantage of using SFPs compared to fixed interfaces (e.g. modular connectors in Ethernet switches) is that individual ports can be equipped with different types of transceiver as required.


    Feature:

    - Up to 1.25Gb/s bi-directional data links

    - 1000BASE-T operation in host systems with SERDES interface
    - 10/100/1000Mbps compliant in host systems with SGMII interface
    - Hot-pluggable SFP footprint
    - Extended case temperature range (0°C to +70°C )
    - Fully metallic enclosure for low EMI
    - Low power dissipation (1.05 W typical)
    - Compact RJ-45 connector assembly
    - Access to physical layer IC via 2-wire serial bus


    Application

    - 1.25 Gigabit Ethernet over Cat cable

    - SFP sockets are found in Ethernet switches, routers, firewalls and network interface cards.

    - They are used in Fibre Channel host adapters and storage equipment.

    - Low cost, low profile, and ability to provide a connection to different types of optical fiber, SFP provides such equipment with enhanced flexibility.

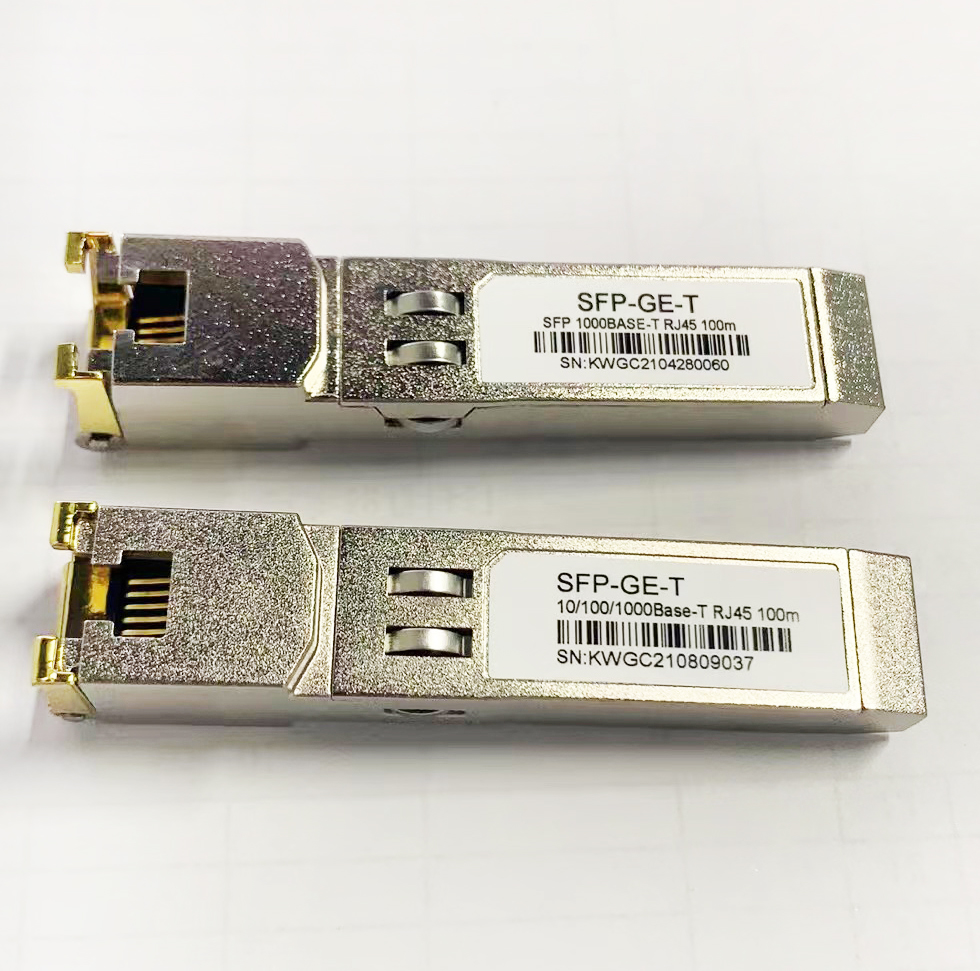

    Products photos:


    Specification:

    Item
    Fiber Optical SFP Transceivers
    Part Status
    Active
    Form Factor
    SFP
    Max Data Rate
    1.25G
    Max Cable Distance
    100M
    Wavelength
    1310/1550NM
    Connector
    RJ45
    Power Consumption
    <1W
    DDM/DOM
    DDM Supported
    Commercial Temperature Range
    0 to 70°C (32 to 158°F)
    EMC (Electro Magnetic Compatibility)
    Supported
    Warranty
    2 Years
    Sample
    Available

    Related Products:
    Fiber Optic SFP Tranceiver Module Catalog:

    SFP TypeStandardData RateWavelengthFiber TypeMax DistanceTypical ConnectorDOM
    SFPSFP MSA

    155Mbps

    622Mbps

    1.25Gbps

    2.125Gbps

    2.5Gbps

    3Gbps

    4.25Gbps

    850nm

    1310nm

    1550nm

    CWDM

    DWDM

    BIDI

    OM1

    OM2

    OS1

    OS2

    200km

    LC

    SC

    RJ-45

    NO or YES
    SFP+

    IEE802.3ae

    SFF-8431

    SFF-8432

    6Gbps

    8.5Gbps

    10Gbps

    850nm

    1310nm

    1550nm

    CWDMD

    WDM

    BIDI

    Tunable

    Copper

    OM3

    OM4

    OS1

    OS2

    100km

    LC

    RJ-45

    YES
    QSFP+

    IEEE 802.3ba

    QSFP+ MSA

    SFF-8436

    SFF-8636

    Infiniband 40G QDR

    41.2Gbps

    850nm

    1310nm

    832-918nm

    OM3

    OM4

    OS1

    OS2

    80km

    LC

    MTP/MPO

    NO or YES
    SFP28

    IEEE 802.3by

    SFP28 MSA

    SFF-8472

    SFF-8432

    25.78Gbps

    850nm

    1310nm

    BIDI

    OM3

    OM4

    OS1

    OS2

    40kmLCYES
    QSFP28

    IEEE 802.3bm

    QSFP28 MSA

    SFF-8665

    SFF-8636

    103Gbps

    112Gbps

    850nm

    1310nm

    CWDM4

    OM3

    OM4

    OS1

    OS2

    80km

    LC

    MTP/MPO-12

    YES

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
