FTTA Outdoor 16 Ports Huawei Mini SC Connector Fibra Optica Caja Nap Terminal Box

Descriptions:
- FTTH outdoor fiber optical distribution box is used in wiring connection between optical cable and optical communication equipment, through adapter in distribution box, optical fiber jumper leads optical signal, realize optical wiring function, and can meet the optical splitter placed to achieve spectral function.
- Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- The Fiber optical distribution box with pre-terminated cable assemblies provides fiber optic cable management for the connection of distribution cables and drop cables with advantages of less cost and faster deployment at the user access point in fiber optic network.
- The Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.
- KCO-FDB-0216H-YP can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
- We provides Fiber Access Terminal made of high quality PC and ABS plastic alloy.
- Its waterproof grade can match IP65.

Feature:

* Total enclosed structure.
* Material: PC+ABS
* Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
* Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution... etc all in one.
* Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
* Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
* The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
* Efficient cable management.
* Temperature:-20℃~ 70℃
* OEM / ODM:Available

Application:

- LAN

- WAN

- Metro

- Passive fiber optic networks;
- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...
- Telecomunication systems,
- Fiber optic termination, indoor and outdoor application;
- CATV networks,
- Data communications networks,
- Telecommunication networks;

Specification:

Item	KCO-FDB-0216H-YP
Dimension	216*240*117mm
Net Weight	1.80kg
Splice tray	1pcs
Adapter ports	16 port
Splitter	Mini Tube PLC Splitter 1*16
Splitter no.	max. 1pcs
Color	Grey
Working Temperature	-25°C ~ 60°C (5 to 95% relative humidity)

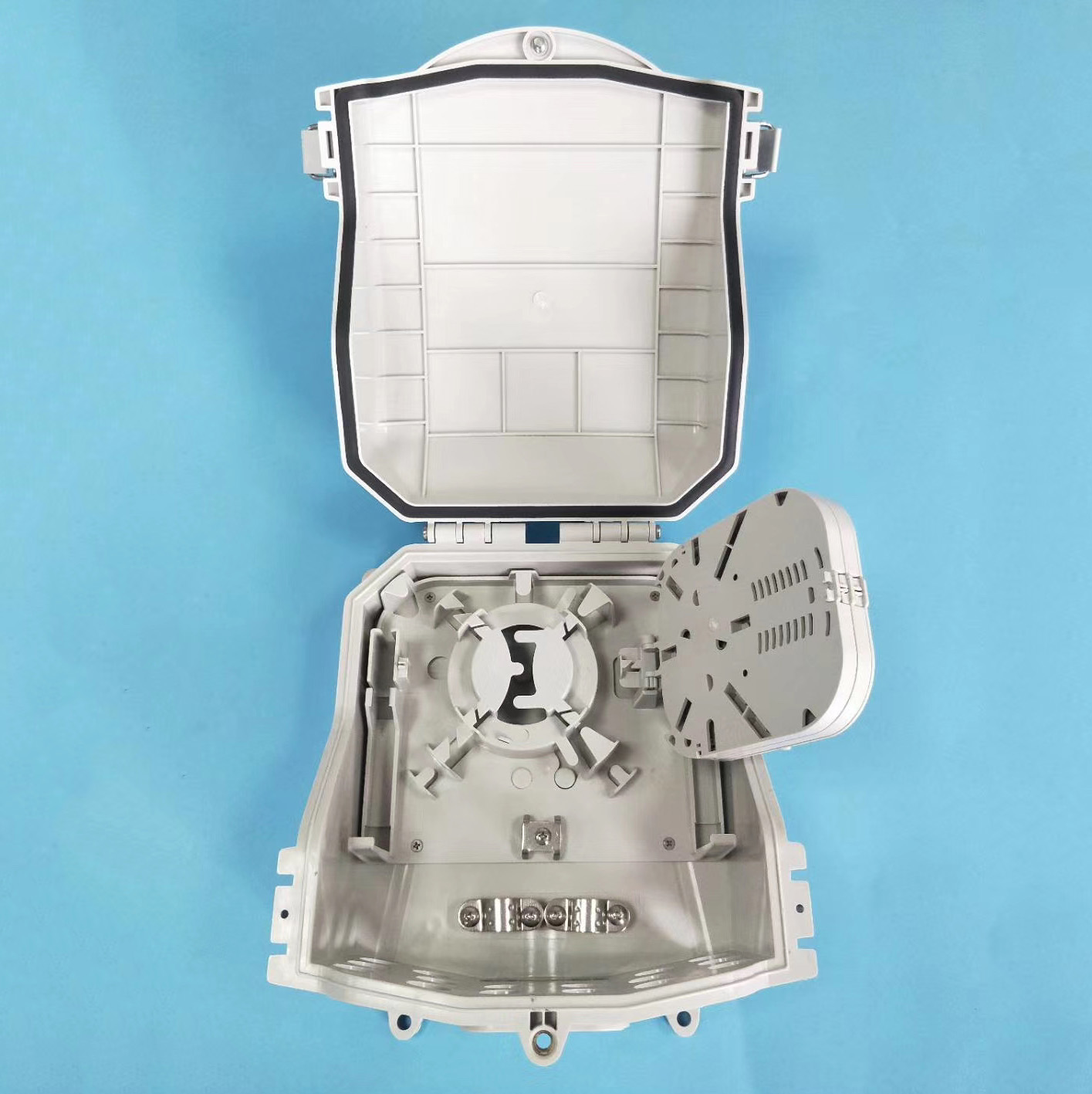

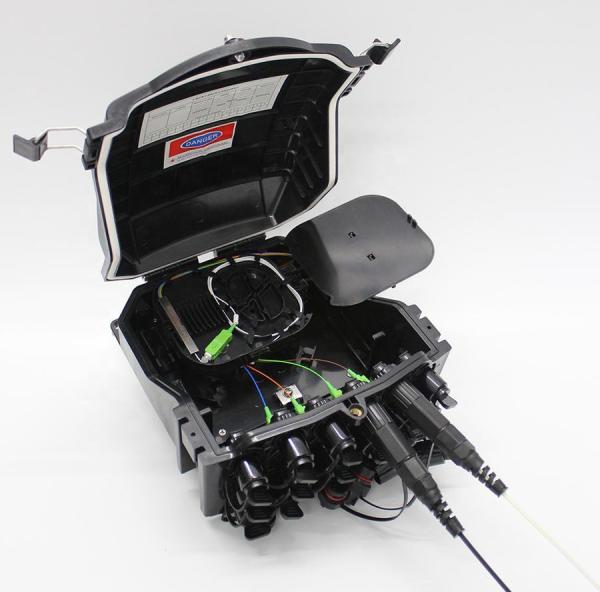

Products photos:

Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
≥50dB(UPC),
≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)

Relation Products:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc
- Standard shipping port: Shenzhen, Hongkong, Ningbo
