APC 2 X 8 Fiber Optic Splitter Singlemode G657A2 FTTH FTTA

Ask Lasest Price
Brand Name :	KCO, Kocent Optec Limited
Model Number :	*KCO-Mini-28-SCA**
Certification :	ISO9001, RoHS
Price :	Negotiation
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	20,000 set/ month
Delivery Time :	2~5 days

Add to Cart

Product Details
Company Profile

SC / APC LC / APC 2 X 8 Fiber Optic Splitter Singlemode G657A2 FTTH FTTA

FTTH FTTA 2x8 Fibre Optics Mini PLC Splitter SC/APC LC/APC 2xN Fibra Optica Splitters

Features:

- Singlemode PLC Splitters in a variety of package types and configurations
- Optical performance 100% factory tested
- UPC, and APC polish types available for connectorized products
- Low Insertion Loss,
- Low Back Reflection and

- Low PDL

Specifications:

Fiber length	1m or custom length
Connector Type	Custom specified
Optical Fiber Type	Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min *	55
Return Loss (dB) Min *	55 (50)
Power Handling (mW)	300
Operating Wavelength (nm)	1260 ~ 1650
Operating Temperature(°C)	-40~ +85
Storage Temperature(°C)	-40 ~ +85
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss(dB) Typical	3.6	7.1	10.2	13.5	16.5	20.5
Insertion Loss (dB) Max	4.0	7.3	10.5	13.7	16.9	21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2
PDL(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temp. Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5
Port Configuration	2X2	2X4	2X8	2X16	2X32	2X64
Insertion Loss(dB) Typical	3.8	7.4	10.8	14.2	17	21
Insertion Loss (dB) Max	4.2	7.8	11.2	14.6	17.5	21.5
Loss Uniformity (dB)	1	1.4	1.5	2	2.5	2.5
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.5
Wavelength Dependent Loss(dB)	0.8	0.8	0.8	0.8	0.8	1
Temp. Dependent Loss(-40~+85°C)	0.5	0.5	0.5	0.8	0.8	1

Descriptions:

- Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing.

- Fiber Optic PLC splitters are characterized as uniform broadband power splitters featuring exceptional uniformity of insertion loss throughout all channels resulting in fact in practical wavelength independency over all transmission range from 1260 to 1650 nm. Total value of insertion loss itself typically exceeds theoretical values just by minimum - ranging from 0.5 dB (for 1x2 splitter) to 2.5 dB (for 1x128 splitter).

Applications:

- Long-Haul Tele/Data Communications
- Fiber Optic Equipment and Systems
- CATV Systems
- Local Area Network, PON, and FTTH
- Fiber Sensors
- DWDM Networks

Advantages Of Fiber Optic Splitter

1. Adopt high strength stainless steel, pass salt spray test

2. Ferrule core is less than 0.2um

3. Adopt 100% new raw material, ROHS compliance

4. Low Insertion loss

5. Low PDL Compact Design

6. Good channel-to-channel uniformity

7. Wide Operating Wavelength: from 1260nm to 1650nm

8. Wide Operating Temperature: from -40℃ to 85℃

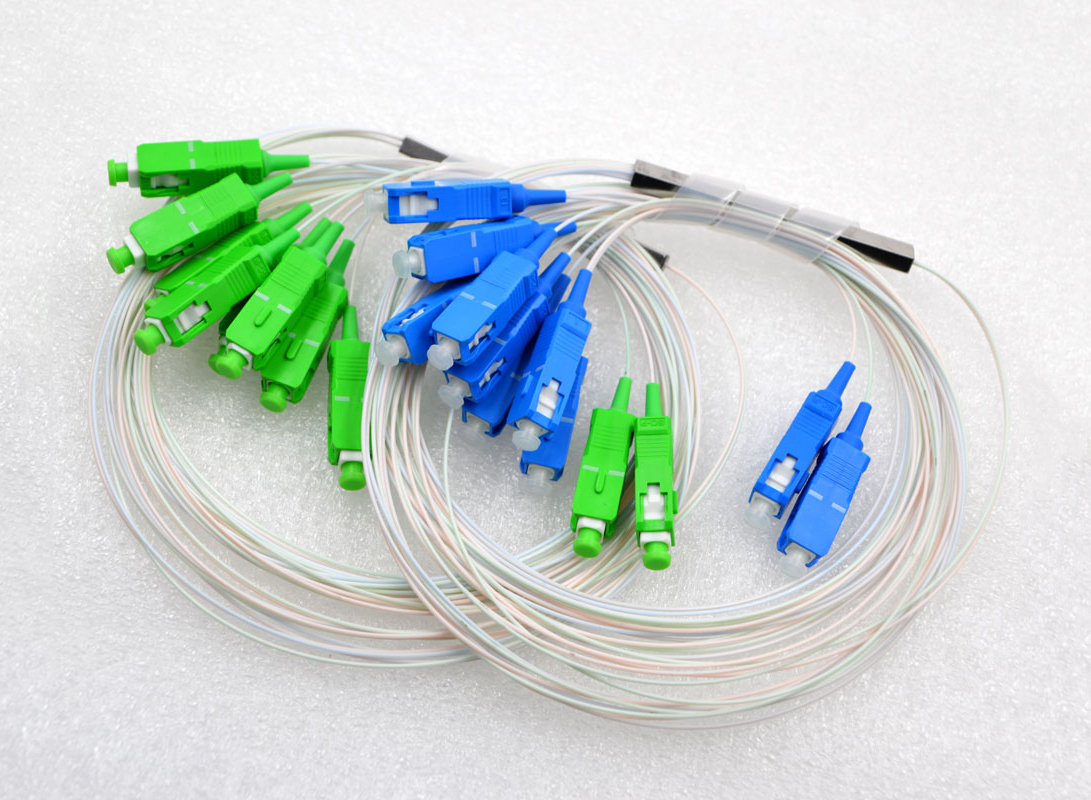

Product photos:

Relation products:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
