100m 150m 200m Handhold Fiber Optic Cable Drum Reel CPRI FTTA Field
Armored TPU SC LC MPO
- KOCENT OPTEC LIMITED provides OEM and ODM service for all types of fiber optic patch
cord. Special in CPRI army field outdoor field operations fiber
optic patch cord come with rooling car for Army field operating and
for FTTA.
- Such as ODVA patch cord, NSN patch cord, PDLC patch cord, DLC
patch cord, ODC patch cord, RRU patch cord, TPU patch cord, CPRI
patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4,
OM5 patch cord.
- (CPRI-"Common Public Radio Interference") cables from Kocent Optec Limited conform to international standards and
meet the stringent requirements of the telecom industry as the
vital bi-directional link between Base Band Units and Remote Radio
Units.
- These fiber optic cables available in 2 cores, 4 cores, 6 cores,
8 cores, 12 cores.
- Cable outer sheath available in TPU and LSZH, it is UV resistant.
- We supply all kinds of field operations fiber optic patch cord
with different types of water-proof connector, use for Telecom 3G,
4G, 5G, LTE, BBU, RRU, RRH base station.
- With completed of production equipment and closed of QC process,
we supply Telecom standard of patch cable to our customer.
Descriptions:
Optical fiber reel (also known as mobile optical cable) is mainly
used to wind cables such as optical fibers, signal cables, and
power cables.
The reel uses steel pipe as the skeleton, imported engineering
plastics as the roulette, light and durable; the surface is
sprayed. Beautiful and atmospheric.
Manual retracting line: Rotate the winding handle clockwise or
counterclockwise to complete the task of receiving and releasing
the line.
Product features: easy to carry, easy to use, easy to collect.
Rooling car size:
Size: 360mm*330mm*450mm
Packing: 470mm*380mm*510mm
Weight: About 2.5kg
Quick Informations:
- Connector End 1: ST, SC, LC, FC, E2000, MPO, ....
- Connector End 2: ST, LC, FC, SC, ST, E2000, MPO, ....
- Cable: Armored,non-armored
- Cover: LSZH, TPU, PE
- Outer Diamerter: 7.0mm, 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm
- Inner Diameter: 2.0mm, 0.9mm, 0.6mm
- Fanout part: 2.8mm armored, 3.0mm non-armored, 2.0mm non-armored
- Color: Black
- Length: 5m, 10m, 20m, 30m , 40m, 50m, 60m, 70m, 80m, 90m, 100m,
150m, 200m, 300m, 500m, ...
Parameter:
| Item | Parameter |
| Connector | ST/UPC |
| Insertion loss | ≤0.3dB |
| Return loss | ≥35dB |
| Fiber mode | Multi-mode,50/125um |
| Operating wavelength | 850nm,1310nm |
| Test wavelength | 850nm,1310nm |
| Repeat ability | ≤0.1dB |
| Interchange ability | ≤0.2dB |
| Durability | ≤0.2dB |
| Fiber length | 1m,2m.. Any length optional |
| Length and tolerance | 10cm |
| Operating temperature | -40~+85°C |
| Storage temperature | -40~+85°C |
Features / Benefits
1.Proven design provides a hardened connector for outside plant
deployment
Single-fiber, single-mode SC APC hardened connector
Connector is designed to install on SST-Drop
Dielectric and Toneable Cable
Environmentally-sealed connector housing permits rapid connection
to external flush-mounted bulkhead adapter (KT- OPT-ADPT)
2. Robust design keeps connector intact during installation
Can be pulled through 1.25-in conduit
Integral pulling eye/connector cap designed for 100 lbf maximum
pulling tension
3.Fully standards-compliant product ensures the highest network
reliability and durability
Connectors designed and third-party tested to Telcordia
GR-3120 requirements

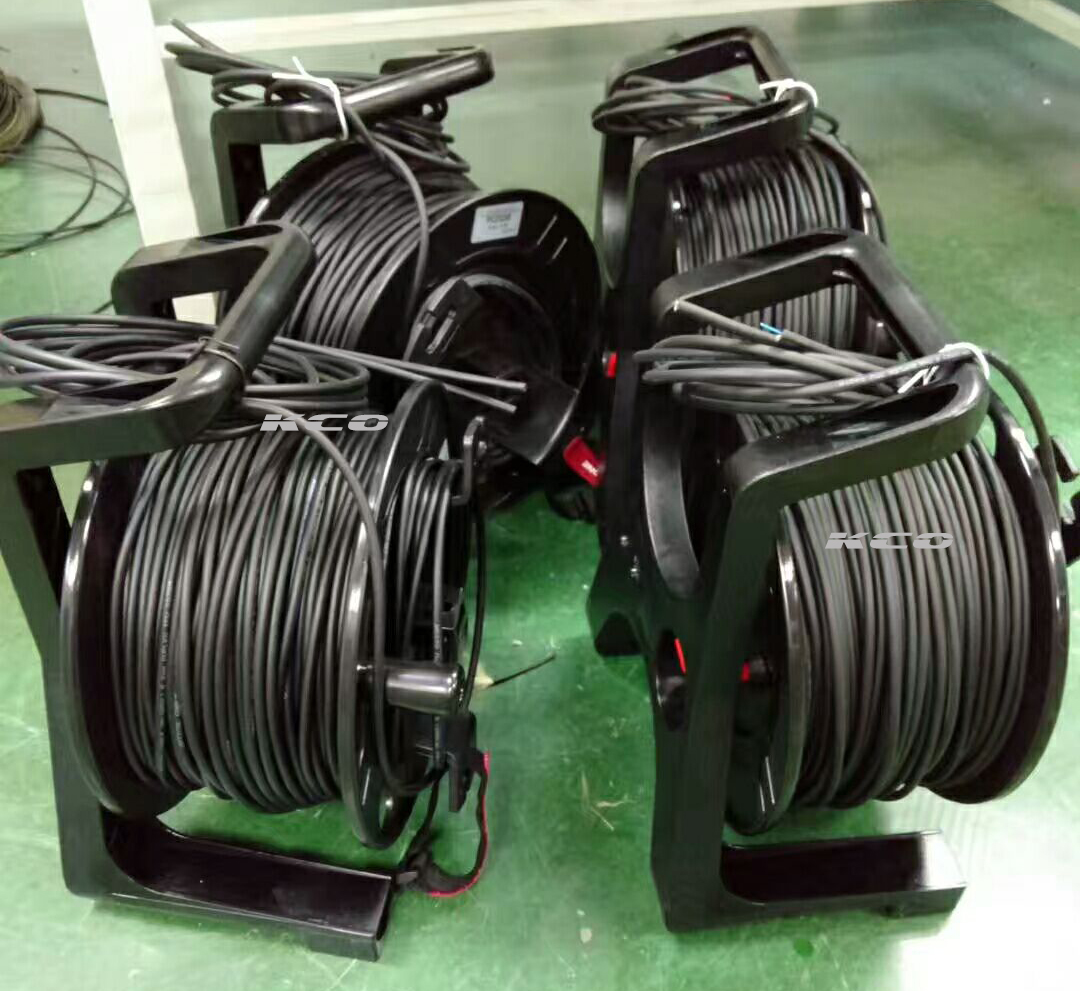

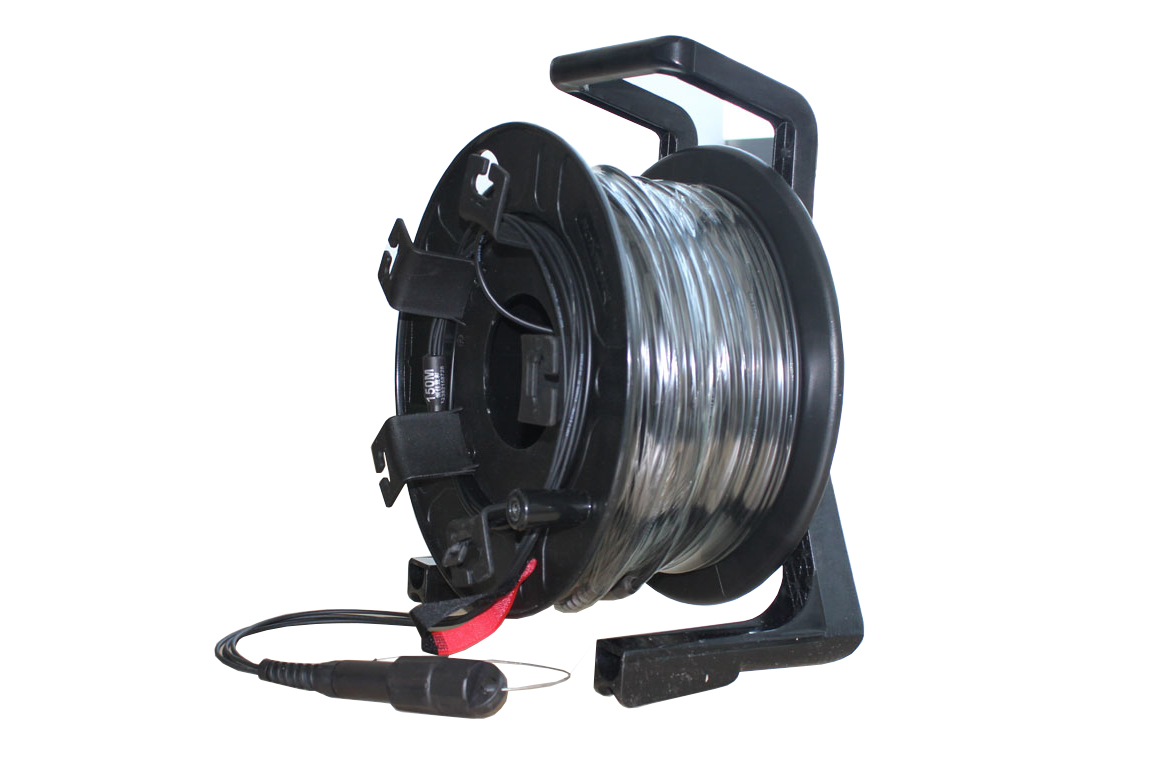

Product photo:
Application:
1- Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS,
CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to
link the base station with the remote unit at the antenna mast.
2- Automation and industrial cabling
provides highest reliability and operating safety. The ruggedized
design provides highest mechanical and thermal robustness which
keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.
3- Surveillance systems
Security camera manufacturers choose ODC connectors for its compact
size and robust design. ODC assemblies are easy to install even in
areas difficult to access and provide highest installation safety.
4- Naval and ship building
The high corrosion resistance convinced both naval and civil ship
builders to use ODC assemblies for on-board communication systems.
The nickel plated connectors withstand humid and salty environments
and guarantee life times of 20 years and beyond.
5- Broadcast
offers a range of mobile cabling systems and ODC assemblies for
temporary cable installations
required for the broadcasting of sport events, car racing, etc.and
for temporary connections in case of natural hazards.
Specifications:
| Parameters | Standard Fiber Cable Assemblies |
| Connector | Side A: SC with armored |
| Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC),
NSN, Ericson, Huawei, ... |
| Fiber count | 2 cores
4 cores
6 cores
8 cores
12 cores
24 cores
48 cores |
| Fiber Type | SM
G.652D
G.657A (A1, A2, B3, ...) |
| MM
OM1
OM2
OM3
OM4
OM5) |
| Jacket Materials | LSZH
TPU
PE |
| Cable diameter | 4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm |
| Testing Wavelengths | SM:
1310±30nm
1550±30nm |
| MM:
850±30nm
1300±30nm |
Insertion Loss(dB)
TIA/EIA-455-107 | ≤ 0.3dB(PC/UPC/APC) |
| ≤ 0.3dB(UPC) |
Return Loss(dB)
TIA/EIA-455-107 | ≥45dB (PC/UPC) |
| ≥55dB (APC) |
| ≥35dB (UPC) |
| Exchange ability | ≤ 0.2dB |
| Cable Assemblies | Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord |
| Operating Temperature | -14℃~+ 85℃ |
| Storage Temperature | -40℃~+85℃ |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as
cable, package bag, label or any where. It is no any problem. Our
OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
