    YZC 2 4 6 8 12 Cores Military Outdoor Fiber Optic Cable Patch Cord Connector High Strength IP68

    Ask Lasest Price
    Brand Name : KCO
    Model Number : 1 2 4 6 8 12 Core
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Delivery Time : 2~5 days after get payment
    • Product Details
    • Company Profile

    YZC 2 4 6 8 12 Cores Military Outdoor Fiber Optic Cable Patch Cord Connector High Strength IP68

    2Core FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector IP68

    Introduction:

    - Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Military Connector, PDLC, ODVA, ...

    - With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

    - FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

    - With multi-core once connected and blind insertion;connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,

    - Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

    - Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.


    Features

    ● Wiring compact all-dielectric structure, the inner sleeve is 0.9mm fiber, the cable has a high strength-weight ratio, allowing for quick wiring;
    ● High-strength fiber composite structure secondary coating offers the best performance and minimum temperature of the additional attenuation cables in harsh conditions to ensure the reliability and service life;
    ● A special high-strength, flexible type central reinforcing element, to ensure fiber strength and bending properties;
    ● Large area of aramid reinforced fiber optic cable to provide a high mechanical strength;
    ● Small tight pitch SZ stranded helical twisted fibers and aramid fibers single combined to ensure the field fiber optic cable has greater tensile strain capacity;
    ● Environmental friendly, Comply with RoHS.

    Applications
    ● Data transmission and industrial automation and control bus system
    ● Intelligent systems and industrial robot servo system
    ● Communication switching system
    ● Digital multimedia systems
    ● Medical sensing system
    ● Power systems

    Military Communications
    ● Coal, oil, natural gas, etc.
    ● Geological exploration Communications
    ● Broadcast television,
    ● Emergency reopened optical fiber communication

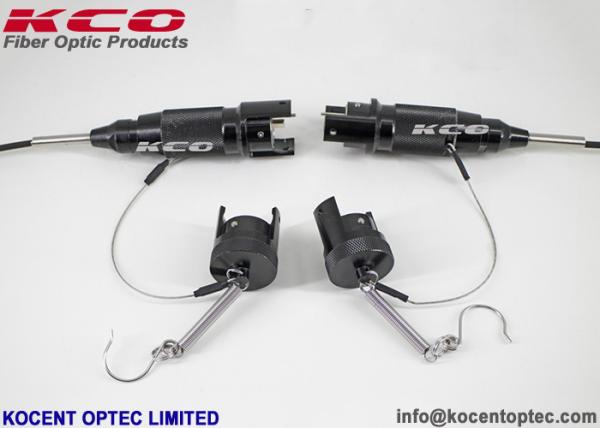

    Products photo:


    Specifications:

    ParametersStandard Fiber Cable Assemblies
    ConnectorSide A: SC with armored
    Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
    Fiber count

    2 cores
    4 cores
    6 cores
    8 cores
    12 cores

    Fiber Type

    SM
    G.652D
    G.657A (A1, A2, B3, ...)

    MM
    OM1
    OM2
    OM3
    OM4
    OM5)

    Jacket Materials

    LSZH
    TPU
    PE

    Cable diameter

    4.8mm
    5.0mm
    5.5mm
    6.0mm
    6.5mm
    7.0mm

    Testing Wavelengths

    SM:
    1310±30nm
    1550±30nm

    MM:
    850±30nm
    1300±30nm

    Insertion Loss(dB)
    TIA/EIA-455-107
    ≤ 0.3dB(PC/UPC/APC)
    ≤ 0.3dB(UPC)
    Return Loss(dB)
    TIA/EIA-455-107
    ≥45dB (PC/UPC)
    ≥55dB (APC)
    ≥35dB (UPC)
    Exchange ability≤ 0.2dB
    Cable AssembliesPigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
    Operating Temperature-14℃~+ 85℃
    Storage Temperature-40℃~+85℃


    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.

    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
