    Armored Optical Fibre Cable FTTA 7.0mm G657A Field Army Military TPU LSZH Material

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-GJYWFJH-7.0-SUS304-TPU
    Certification : ISO9001, RoHS
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10,000km/ month
    Delivery Time : 3~5 days after get payment
    • Product Details
    • Company Profile

    Armored Optical Fibre Cable FTTA 7.0mm G657A Field Army Military TPU LSZH Material


    2 Fiber 4 Core Armored Optic Fibre Cable FTTA 7.0mm G657A Field Army Military TPU LSZH


    Kocent Optec Limited is specialist in outdoor and indoor field fiber optic cable for army mirility using.

    We can supply all type of field fiber optic cable non-amored and with armored (include sus spiral type and steel tape type).

    We accept customer OEM request. And can according to customer cable construction to make the cable.

    All of cable use Dubont aramid, and 100% test by OTDR before shipment.

    Kindly contact with our sales team to get more information about our product and our OEM service.


    Characteristics:
    - Tight buffer fibre ease of stripping.
    - Tight buffer fibre have excellent flame-retardant performance.
    - Aramid yarn as strength member make cable have excellent tensible strength.
    - Excellent performance of anti-torsion.
    - The jacket anti-abrasion,anti-aging,anti-oil and flame-retardant etc.
    - All dielectric structure protect it from electromagnetic influence.
    - Scientific design with serious processing art.


    Applications:

    - Military communication system cable distribution
    - Communication between radars or in oil field,

    - Mining work place


    Standards:

    - Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,

    - Meet the requirements of UL approval for OFNR and OFNP.


    Application:

    - FTTx (FTTA, FTTB, FTTC, FTTO, FTTH, ...)
    - Military communication system
    - Passive optical networks (PON)
    - Coal, oil, natural gas, geological exploration
    - Broadcast television, temporary communication


    Cable Constructions:

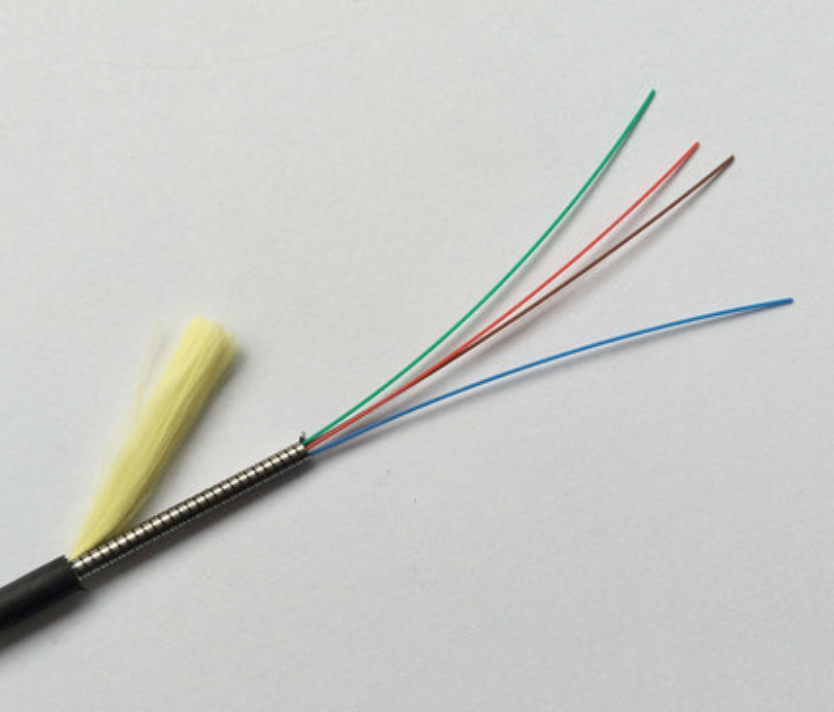

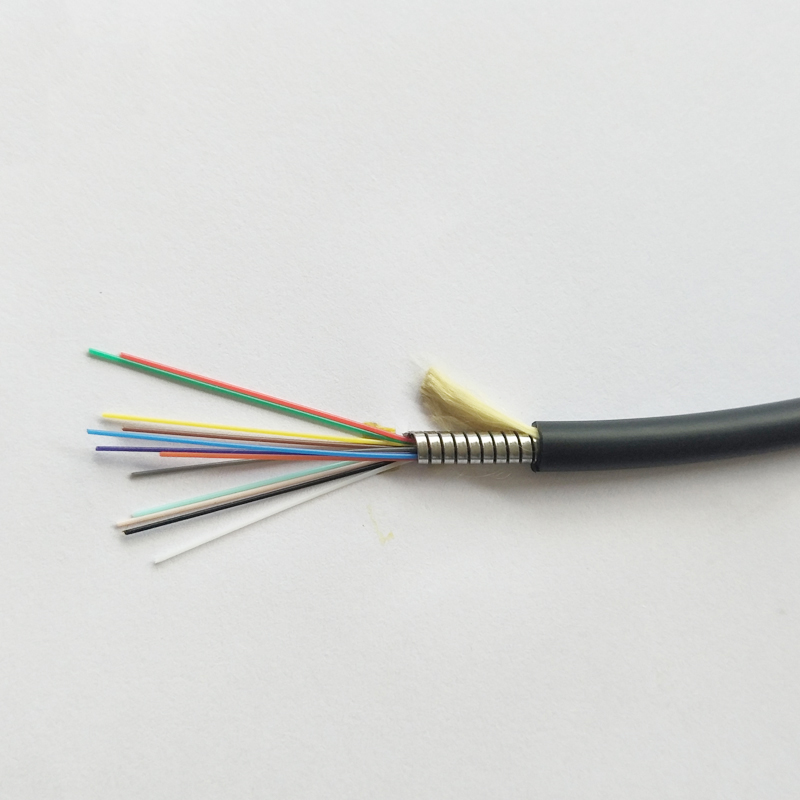

    Product photo:



    Storage/Operating Temperature: -40°C to + 70°C


    Standards: Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11


    Optical Fiber Parameter
    Fiber TypeSingle mode G652D,G657, G655, Multimode OM1, OM2, OM3, OM4, OM5
    Cable Diameter4.8±0.2mm
    Cladding Diameter125 ± 1μm
    Cladding Non-Circularity≤ 1%
    Coating Diameter245 ± 10μm
    Attenuation Coefficient

    ≤ 0.36dB/km at 1310nm,

    ≤ 0.22dB/km at 1550nm

    Chromatic Dispersion

    ≤3.5ps/nm/km at 1285~1330nm,

    ≤18ps/nm/km at 1550nm

    Zero Dispersion Wavelength1300~1322nm
    PMD Coefficient≤ 0.2ps/√km
    Weight28kg/km

    OEM/ODM Service:

    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


    Packing:

    According to Stardard Export Packing.

    Carton box, wooden box, wooden pallet.


    Shipping:

    - International express such as UPS, TNT, DHL, etc

    - Internatioal air: CA, AA, EA, etc

    - By sea
