ESC250D APC 3D Pass 0.2dB Fibre Optical Field Assembly Fast Connector Telecom FTTH

Techenical Data:
P/N: ESC250D APC
Size: 52×9×8.1mm
Optical fiber: 0.9mm cable
Plug type: SC/APC
Diameter of fiber: 0.125mm
Fiber Mode: single mode
IL: less 0.5dB (0.2dB type)
3D: pass 80%
Use for: 2.0mm×3.0mm & 2.0mm×1.6mm FTTH drop cable

Feature:
1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.

Descriptions:
1. Double V-groove structure design, fiber optic docking is stable and reliable;
2, The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
3, Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
4. Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
5, Tensile strength: > 30N / 2min;
6. Simple operation, fast construction speed, high installation success rate, long life cycle and simple and convenient maintenance.
7, Product size: 52 × 9 × 8.1mm

Application:
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
​FTTH Outlets
Connection at the desk for LAN environments
Suitable for FTTx butterfly type cable(both square and circle shape are available)

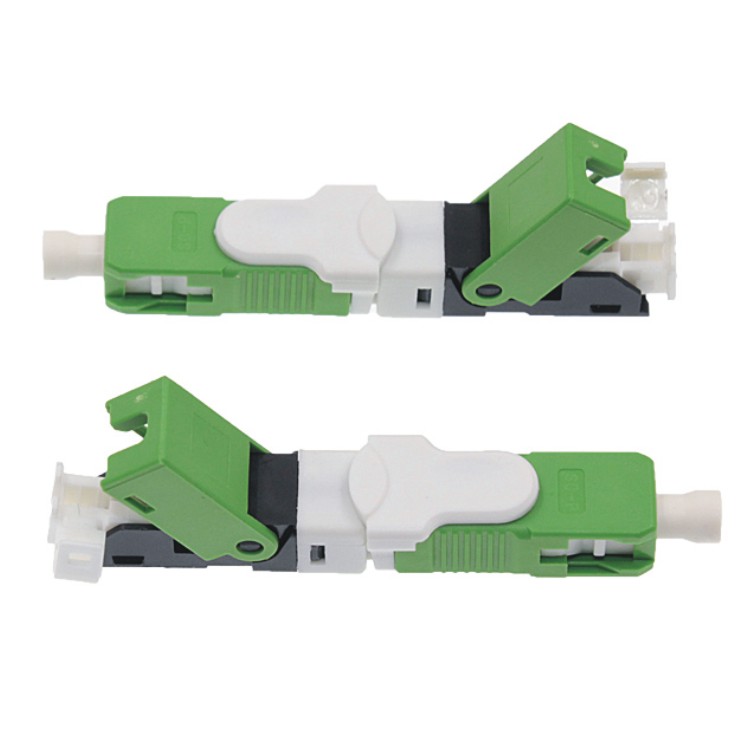

Product photo:




OEM/ODM Service:
​Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
All of our fast connector meet Telecom requirement as Viettel, VNPT, ...
Logo print is free for quantity more than 10k (pcs). Logo Lettering is free for quantity more than 100k (pcs)
Contact with our sales team for your OEM and ODM order.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

KOCENT OPTEC LIMITED is a high-tech company that focus on passive and active fiber optic product series. Established in 2007, we have more than 15 years of experience in optical fiber accessories production. With strong R&D team and close quality process, we get more and more trust from our old and new customers. They are willing to let us become their long-term partner.

KOCENT OPTEC LIMITED best advantage product is fiber optic passive product such as:

- Fiber optic cable (indoor cable, outdoor cable, ftth cable, tactical fiber optic cable),

- Fiber optic splitter PLC splitter,

- Fiber optic patch cable/ pigtail,

- MPO/MTP fiber optic solution products,

- Fiber optic terminal box,

- Fiber optic ditribution box,

- Fiber optic distribution frame and patch panel,

- Fiber optic splice closure box,

- Fiber optic adapter, fiber optic attenuator, fiber optic connector, fiber optic ferrule, fiber optic protection sleeves (large stock goods, always ready to delivery any time), etc.

With the development of the company business we are marching into the active fiber products research and sales. Fiber optic Media converter and SFP XFP fiber optic module is our first step to do the active fiber optic products.

In the past, our products were selling to America, Canada, Russian, many Europe countries and also Asia coutries. Currently, our products also are exporting to South Ameria, Africa, and Middle East countries. It is very wellcome to contact with us if you want to get good price, qood quality and profesional technical data about fiber optic products to expand your local market.

KOCENT OPTEC LIMITED has more than 15 years of experience in production of passive fiber optic products.

Fast connector work shop:

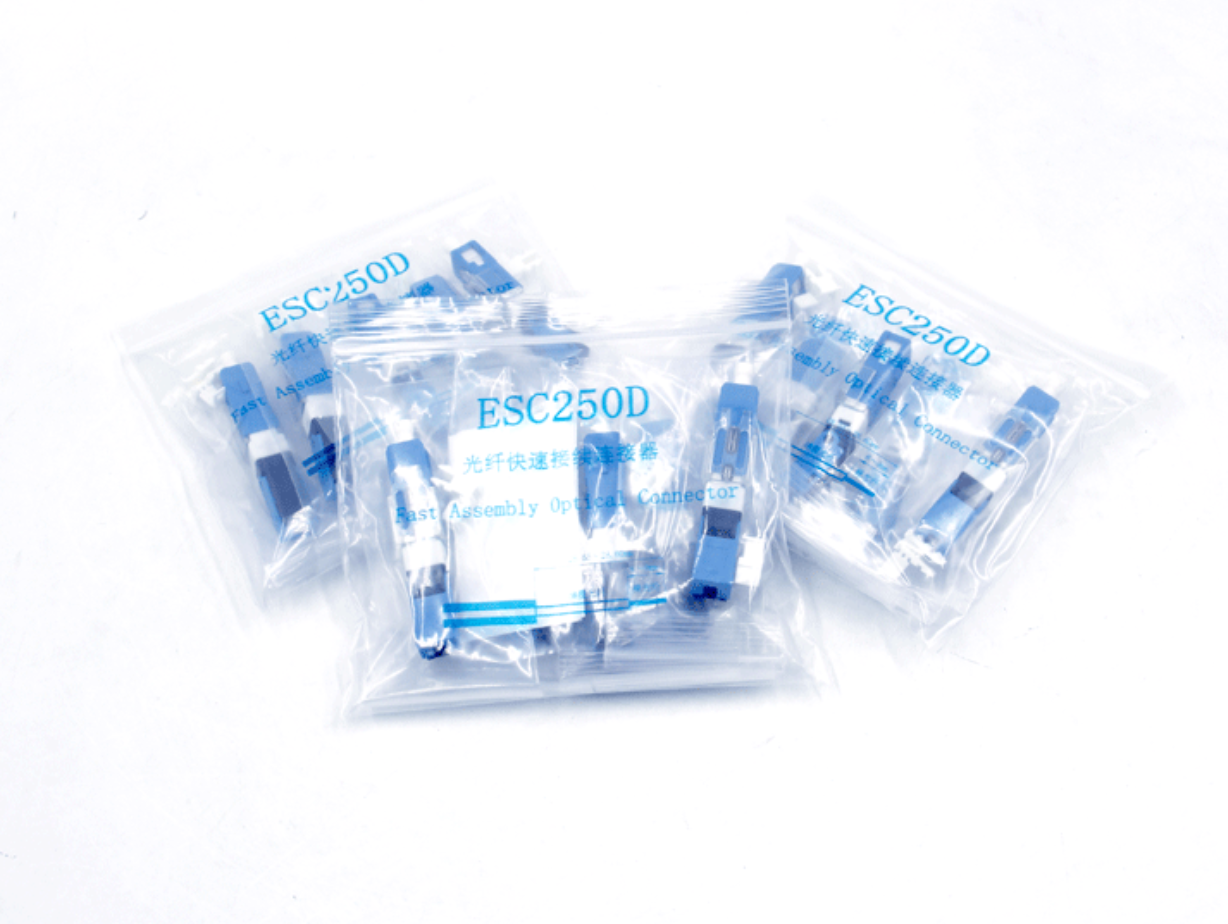

Our all of fast connector packing way is 10pcs/ blister box, then 100pcs/small gift box, and then 1000pcs or 2000pcs/ big carton box. 100% tested with IL less than 0.3dB before shipment.

Patch cord work shop:

Kocent Optec Limited prodice OEM service for all type of fiber optic patch cord. We have rich experience in produce the fiber optic patch cord, special in ftth drop patch cable, army field outdoor patch cable, MPO patch cable, armoured patch cable and common type of fiber optic patch cable.  All of patch cable is tested 100% before shipment.

Fiber optic splitter work shop:

Fiber optic splitter is one of our advantage product. With more than 5 years of experience in production fiber optic splitter, we only ship the good quality and telecom grade of fiber optic splitter.

Fiber optic cable work shop:

We can supply ftth drop cable, indoor cable and outdoor cable too. With brand new high-tech machine, we promise all of cable before shipment are tested and reach telecom grade request.

Fiber optic adapter, connector housing workshop

Our oldest productions are fiber optic housing and fiber optic adapter. All of housing part can reach RoHS compliant and meet telecom grade request.

Huge ware house:

Strong shipping partner:

With strong shipping partner, we help our customer save more shipping cost.

Customer can choose to send by internaltion express, by air, and by sea.
