    FDB ODP Fiber Optical Termination Box 24 Core Ftth Drop Cable Port Outdoor KCO-FAT-24W

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FAT-24W
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    FDB ODP Fiber Optical Termination Box 24 Core Ftth Drop Cable Port Outdoor KCO-FAT-24W


    KCO-FAT-24W 24core Ftth Drop Cable Port 3 Outdoor Cable Port FDB ODP Fiber Optical Termination Box​


    Descriptions:
    - KCO-FAT-24 series outdoor wall mounted and pole mounted fiber optic termination box for FTTH drop cable entry or exist is the distribution or splitter box with maximum 24 port for ftth drop cable, it is available in 3 colors:

    Black: KCO-FAT-24B

    White: KCO-FAT-24W

    Grey: KCO-FAT-24G

    - KCO-FAT-24 is able to hold up to 24subscribers.

    - It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

    - It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


    Function:

    - P/N: KCO-FAT-24

    - Material:

    ABS

    ABS+PC (ex-work)

    - Color:

    Black

    White (ex-work)

    Grey

    - Long life time: about 20 years

    - Can accommodate 1x4, 1x6, 1x8, 1x12, 1x16, 1x24 PLC splitter.

    - Rainfall resistant, IP66 outdoor using.

    - Can load 24pcs SC, DLC, FC, ST, E2000 … adapters.

    - Installation:

    Wall mounting

    Pole mounting

    - The cover with 2 reinforcing closing pieces, easy to open and close.

    - Cable port: 3 outdoor cable port an 24 ftth drop cable port:

    02pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;

    01pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm);

    24pcs exit ports for FTTH drop cable.


    Quick Information:

    ModelKCO-FAT-24
    Dimension (A*B*C) mm340*250*110
    Max. Capacity24cores
    Max. Adapter24 pcs SC simplex, no need screws
    Max. SplitterPLC 1*16 wtih SC connecctor
    MaterialABS+PC
    Installation size (D*E) mm154*120
    Weight1.5kg
    ColorBlack, white, gray

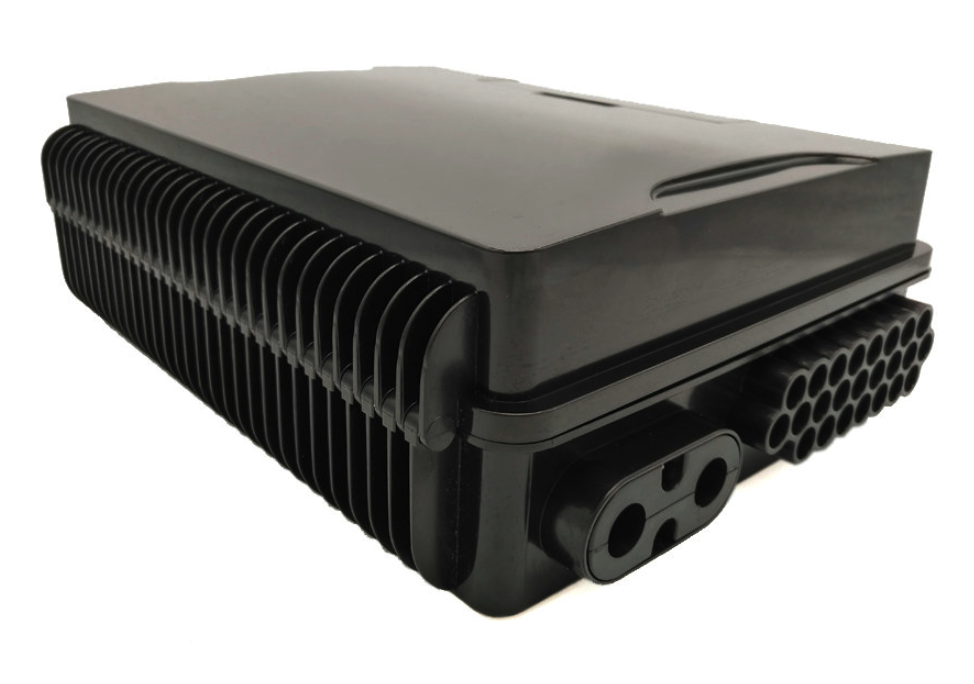

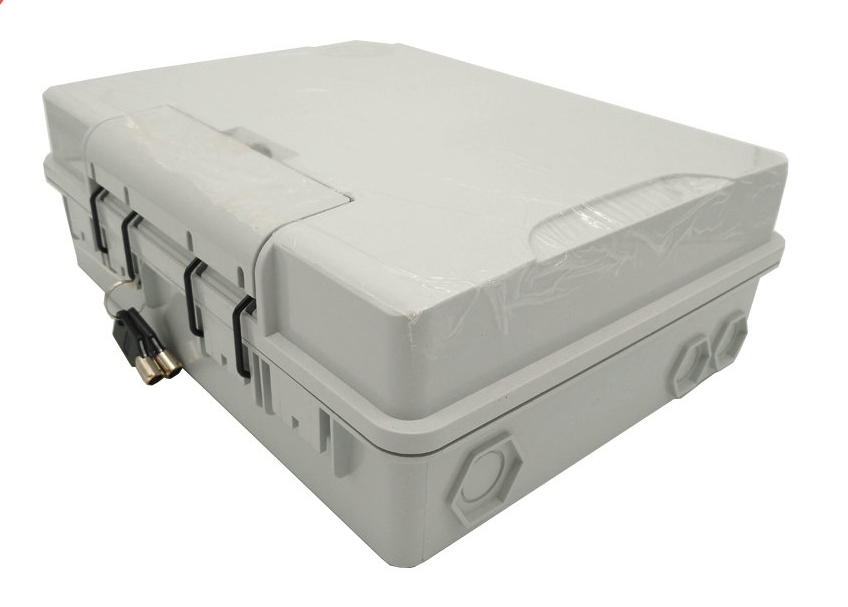

    Products photos:



    Specifications:

    ModelKCO-FAT-24
    MaterialPC+ABS or ABS
    Dimension340*250*110mm
    Cable Entry3 cable entrance: 10-16.5mm
    Drop cable port24 ports
    Applicable cable diameter2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable
    Max. Capacity24 Fibers, 1 tray x 12F
    AdapterMax. 24pcs SC simplex (LC, FC, E2000,... optional)
    Sealing structureMechanical sealing with PE waterproof sealing ring
    PLC SplitterMax. micro plug-in 1x24 Splitter
    ColorGray, White or Black
    IP GradeIP65
    Operating Temperature-40°C~+80°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet


    Dimension:

    Model
    Capacity
    Dimension (LxWxH)
    Weight
    KCO-FAT-24B
    1*24 PLC splitter, 24 SC adaptors
    350*250*110MM
    1.5kg
    Packing1pc/box380*270*120MM

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
