    4 Port Indoor Optical Termination Box 4 Core Fiber Optic Faceplate KCO-FTB-04M

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FTB-04M
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    4 Port Indoor Optical Termination Box 4 Core Fiber Optic Faceplate KCO-FTB-04M


    KCO-FTB-04M 4 Port Indoor Termination Box / 4 Core Fiber Optic Faceplate


    Descriptions:

    - KCO-FTB-04M is 4 Cores fiber optic access termination box,

    - It is able to hold up to 4 subscribers.

    - It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

    - It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

    - The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.


    Function:

    - P/N: KCO-FTB-04M

    - Material:

    ABS

    ABS+PC (ex-work)

    - Color:

    Black

    White (ex-work)

    Grey

    - Long life time: about 20 years

    - Can accommodate 1*2, 1x4 PLC splitter.

    - Rainfall resistant.

    - Protection level: IP55

    - Can load 4pcs SC, DLC, FC, ST, E2000 … adapters.

    - Installation:

    Wall mounting

    Desktop

    - Cable port: 1 input cable port an 4 adapter port:


    Quick Information:

    ItemKCO-FTB-04M
    MaterialPC+ABS
    Size292*218*83mm
    Max Capacity4 ports SC
    Installation SizeD154*E82mm
    Weight0.5kg
    ColorWhite

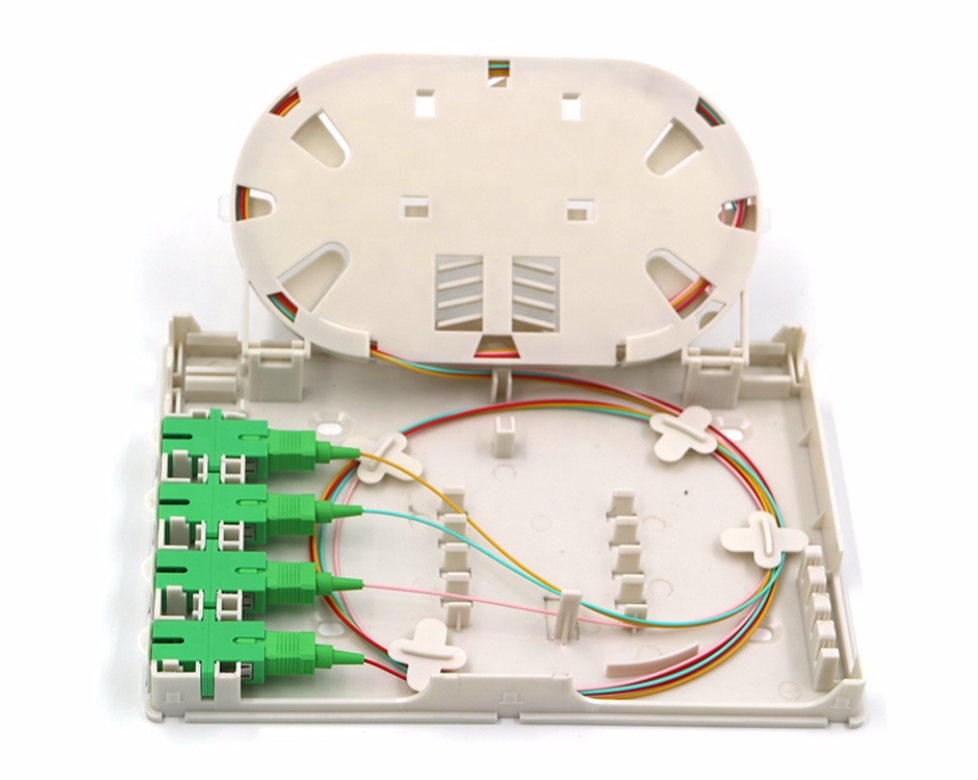

    Products photos:




    Specifications:

    ModelKCO-FTB-04M
    MaterialPC+ABS or ABS
    Dimension292*218*83mm
    Cable Entry1 cable entrance: 3.0mm
    Adapter port4 ports
    Applicable cable diameter2*3mm FTTH drop cable
    Max. Capacity4 Fibers, 1 tray x 4F
    AdapterMax. 24pcs SC simplex (LC, FC, E2000,... optional)
    Sealing structurenone
    PLC SplitterMax. micro plug-in 1x4 Splitter
    ColorGray, White or Black
    IP GradeIP55
    Operating Temperature-40°C~+80°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
