    KCO-0416B Optical Fiber Distribution Box , Fibre Optic Splice Enclosure Box


    KCO-0416B 1*16 1*8 Fiber Optical Splitter Distrinution Terminal Enclosure Box ABS+PC



    Descriptions:

    - KCO-0416B fiber access termination closure is able to hold up to 16 subscribers and 96 splicing points as closure.

    - It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system.

    - It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

    - KCO-0416B Fiber Optic CTO Distribution Box Outdoor Water Proof 16 Cores fiber optic access termination box is designed to seal with screws and buckles.

    - The compact size and flip-over cover bring easy operation as well as complete function.

    - The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier.

    - You can take each tray out, after splice, then fix it in closure. It is designed to prevent from operation damage.

    - Environmental requirement

    Working temperature: -40℃~+85℃

    Relative humidity: ≤85%(+30℃)

    Atmospheric pressure: 70KPa~106Kpa

    - Insertion loss: ≤0.2dB

    - Return loss:

    UPC return loss: ≥50dB

    APC return loss: ≥60dB

    - Life of insertion and extraction: >1000 times

    - The grounding device is isolated with the cabinet, isolation resistance is less

    - The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V


    Applications:

    - Wall mounting and pole mounting installation

    - FTTH pre-installation and filed installation

    - 2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable


    Features:

    - Water-proof design with IP-65 Protection Level.

    - Can be used indoor and outdoor, wall mount and pole mount

    - Integrated with 4pcs flap-up splice cassette and adaptor holder

    - All stainless metal plate and anti-rusting bolts, nuts

    - Fiber bend radius control more than 40mm

    - Suitable for the fusion splicer or mechanical splice

    - 2 Pcs of 1*8 Splitter can be installed as an option

    - Mechanical sealing structure and mid-span cable entry.

    - 16 outports for drop cable

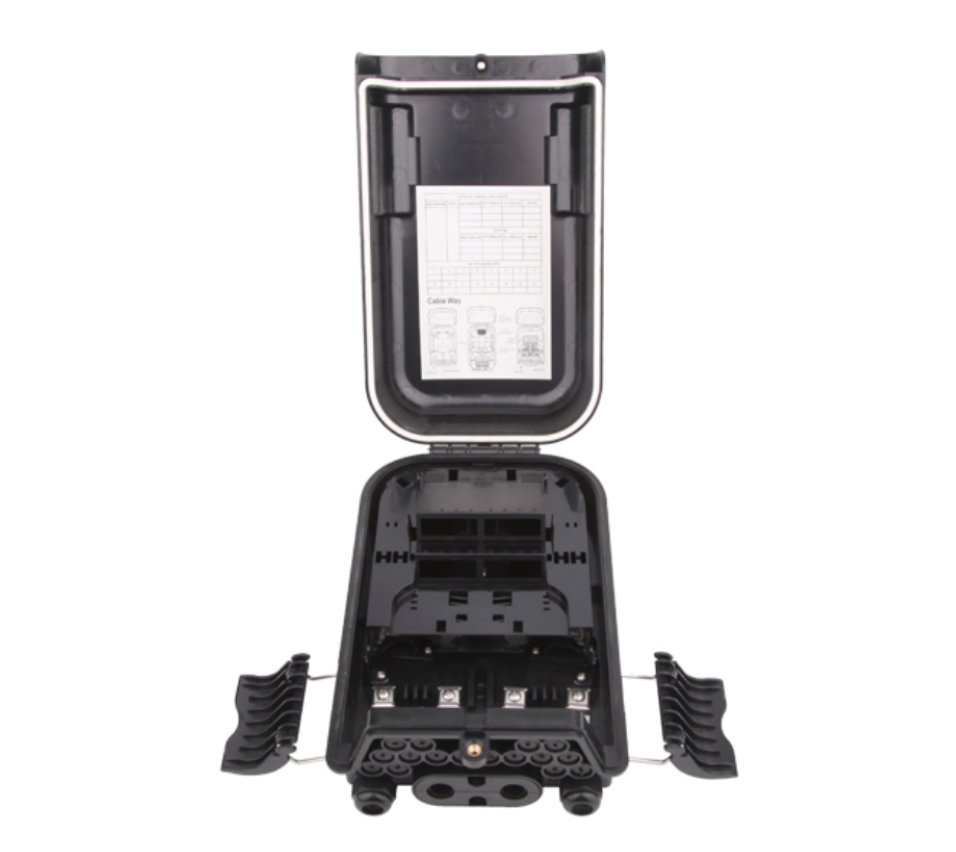

    Product photo:



    Specification:
    ModelKCO-0416B
    MaterialPC+ABS
    Dimension287*172*102mm
    Cable Port

    2 uncut port

    2 reserved cable entrance

    Cable Dimension

    2 uncut port: 10-16.5mm;

    2 reserved port: 8-16.5mm

    Cable Outport16 outputs for drop cable
    Max. Capacity24 Fibers
    Sealing structureMechanical sealing(buckle and screw)
    PLC SplitterMax. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
    ColorGray/Black/White
    IP GradeIP65
    ApplicationWall mount, pole mount
    Weight1.20kg
    Ordering information:
    ItemCapacitySplitterConnectorAdapterLogo
    KCO-0416B16 cores1*2SC/UPCSC/UPCKCO
    1*4SC/APCSC/APCcustomized
    1*6FC/UPCFC/UPC
    1*8FC/APCFC/APC
    1*12ST/UPCST/UPC
    1*16LC/UPCLC/UPC
    .........

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
