    Outdoor IP65 FTTH 16 Ports Optical Fiber Termination Box White Color KCO-0416

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-0416W
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    Outdoor IP65 FTTH 16 Ports Optical Fiber Termination Box White Color KCO-0416


    KCO-0416 Outdoor IP65 FTTH 16 Ports Fiber Optic PLC Splitter Termination Box White Color



    Descriptions:

    - KCO-0416 is new design for outdoor applicatin of optic fiber access termination closure, it is able to hold up to 16 subscribers and 96 splicing points as closure.

    - It is available in grey, black and white color, and also as customer request.

    - The box ex-work status without any logo on box, we can print customer logo as request.

    - The compact size and flip-over cover bring easy operation as well as complete function.

    - The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier.

    - You can take each tray out, after splice, then fix it in closure.

    - It is designed to prevent from operation damage.

    - It is suitable for wall mounting and pole mounting installation.

    - It is suitable for FTTH pre-installation and filed installation.

    - Use 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.


    Data:

    ItemMaterialSize (mm)Max CapacityNos of AdaptorWightColor
    KCO-0416ABS/PC287*172*102Splice 16 Fibers
    (1 tray)

    1*8 PLC Splitter:

    2pcs

    16pc of SC1.20kg

    Grey

    Black

    White


    Features:

    - Water-proof design with IP-65 Protection Level.

    - Can be used indoor and outdoor, wall mount and pole mount

    - Integrated with 4pcs flap-up splice cassette and adaptor holder

    - All stainless metal plate and anti-rusting bolts, nuts

    - Fiber bend radius control more than 40mm

    - Suitable for the fusion splicer or mechanical splice

    - 2 Pcs of 1*8 Splitter can be installed as an option

    - Mechanical sealing structure and mid-span cable entry.

    - 16 outports for drop cable


    Specification:
    ModelKCO-0416B
    MaterialPC+ABS
    Dimension287*172*102mm
    Cable Port

    2 uncut port

    2 reserved cable entrance

    Cable Dimension

    2 uncut port: 10-16.5mm;

    2 reserved port: 8-16.5mm

    Cable Outport16 outputs for drop cable
    Max. Capacity24 Fibers
    Sealing structureMechanical sealing(buckle and screw)
    PLC Splitter

    1 pc micro 1x16 Splitter

    2 pcs 1*8 PLC Splitter

    1 pc GLX type 1*16/ 2*16 Splitter

    2 pc LGX type 1*8/2*8 splitter

    Color

    Gray (KCO-0416G)

    Black (KCO-0416B)

    White (KCO-0416W)

    IP GradeIP65
    Application

    Wall mount

    Pole mount

    Weight1.20kg

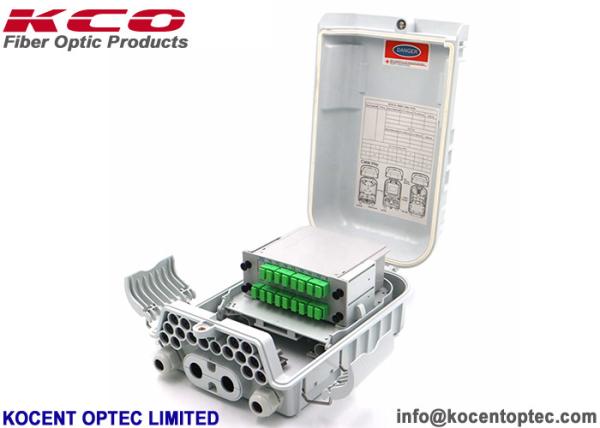

    Product photo:


    Ordering information:
    ItemCapacitySplitterConnectorAdapterLogo
    KCO-0416B16 cores1*2SC/UPCSC/UPCKCO
    1*4SC/APCSC/APCcustomized
    1*6FC/UPCFC/UPC
    1*8FC/APCFC/APC
    1*12ST/UPCST/UPC
    1*16LC/UPCLC/UPC
    1*24LC/APCLC/APC

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.



    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea

    - Standard export port: Ningbo, Shenzhen
