    24 Port Distribution FDB Fibre Termination Box KCO-FAT-24B For Mini Splitter

    Ask Lasest Price
    Brand Name : KCO, Kocent Optec Limited
    Model Number : KCO-FAT-24B
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000 pcs/ month
    Delivery Time : 7~14 days after get payment
    • Product Details
    • Company Profile

    24 Port Distribution FDB Fibre Termination Box KCO-FAT-24B For Mini Splitter


    KCO-FAT-24B Optic Fiber Termination Box / 24 Port Distribution FDB Box For Mini Splitter


    Descriptions:
    - KCO-FAT-24 series outdoor wall mount and pole mounted fiber optic termination box for FTTH drop cable entry or exist, it is available in 3 colors:

    Black: KCO-FAT-24B

    White: KCO-FAT-24W

    Grey: KCO-FAT-24G

    - It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

    - The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.


    Quick Information:

    Item

    KCO-FAT-24B

    Port

    24

    Tensile strength test

    >50 N

    Tight buffer diameter

    250μm & 900μm

    Adapter Type

    SC/FC/LC

    Applicable mode

    Single mode & Multimode

    Working temperature

    -25~+60°C

    Size (H×W×D) mm

    340*250*110


    Features:

    - P/N: KCO-FAT-24

    - Material:

    ABS

    ABS+PC

    - Long life time: about 20 years

    - Can accommodate 1x4, 1x6, 1x8, 1x12, 1x16, 1x24 PLC splitter.

    - Rainfall resistant, IP65 outdoor using.

    - Can load 24pcs LC, FC, ST, SC, E2000 … adapters.

    - Installation:

    Wall mounting

    Pole mounting

    - The cover with 2 reinforcing closing pieces, easy to open and close.

    - 02pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;

    - 01pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm);

    - 24pcs exit ports for FTTH drop cable.

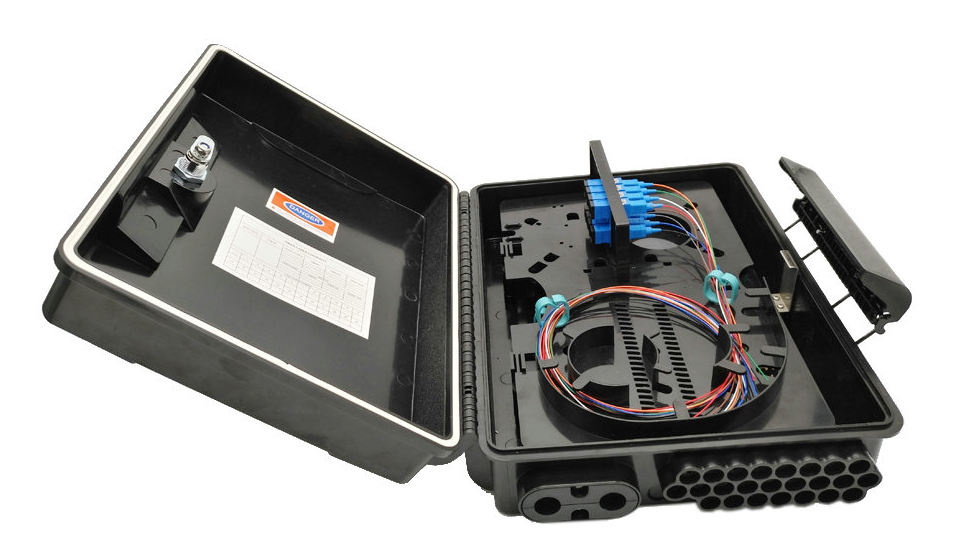

    Products photos:




    Specifications:

    ModelKCO-FAT-24
    MaterialPC+ABS or ABS
    Dimension340*250*110mm
    Cable Entry2 cable entrance: 10-16.5mm
    Drop cable port24 ports
    Applicable cable diameter2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable
    Max. Capacity24 Fibers, 1 tray x 12F
    AdapterMax. 24pcs SC simplex (LC, FC, E2000,... optional)
    Sealing structureMechanical sealing with PE waterproof sealing ring
    PLC SplitterMax. micro plug-in 1x24 Splitter
    ColorGray, White or Black
    IP GradeIP65
    Operating Temperature-40°C~+80°C
    Relative Humidity<95%(+40°C)
    Insulated Resistance>2x10MΩ/500V(DC)
    Installation Method
    (in overstriking)
    Floor Standing / Wall Mounted / Pole Mounted /
    Corridor Mounted / Mounted in Cabinet


    Dimension:

    Model
    Capacity
    Dimension (LxWxH)
    Weight
    KCO-FAT-24B
    1*24 PLC splitter, 24 SC adaptors
    350*250*110MM
    1.5kg
    Packing1pc/box380*270*120MM

    OEM/ODM Service:
    If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea: COSCO, HUYNDAI, etc

    - Standard shipping port: Shenzhen, Hongkong, Ningbo
