    Waterproof IP65 Optical Fiber Distribution Box FAT NAP CTO FDB 24 Core Outdoor


    Outdoor Fiber Optic FDB Distribution Box 24 Port KCO-NAP-0424B Anti UV Black Color


    Description:

    - KCO-NAP-0424B outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

    - It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.


    Features:

    - Total enclosed structure.

    - Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.

    - Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

    - Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

    - Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

    - Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.


    Application:

    - Wall mounting and pole mounting installation

    - FTTH pre-installation and filed installation

    - 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable


    Technical Data:

    - Environmental requirement

    Working temperature:-40℃~+85℃

    Relative humidity:≤85%(+30℃)

    Atmospheric pressure:70KPa~106Kpa

    - Main technical datasheet

    Insertion loss: ≤0.2dB

    Return loss:

    UPC return loss: ≥50dB

    APC return loss: ≥60dB

    Life of insertion and extraction: >1000 times

    - Thunder-proof technical datasheet:

    The grounding device is isolated with the cabinet, isolation resistance is less

    The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V


    Technical Data:

    ModelKCO-NAP-0424B
    MaterialPC+ABS
    Size340*220*95
    PLC1pcs 1x16 steel tube PLC Splitter
    Adapter24pcs SC/UPC or SC/APC Adapters
    ColorGray/Black
    Net. Weight1.85kg
    Work Temperature-40 ~+75degree
    Max CapacitySplice 120 Fibers (5 trays,24fiber/tray)
    Relative Humidity 85% (+30 degree)
    Atmospheric Pressure70Kpa~106Kpa
    Insert Loss 0.2dB
    UPC Return Loss 50dB
    APC Return Loss 60dB
    Insert and Pull out Life 1000 times
    InsulationThe grounding device is insulated with the Termination box, IR 1000m Ω/500V (direct current)
    Withstand Voltage

    Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U 3000V (direct current)


    Usage:

    - Wall mounting installation,

    - Pole mounting installation,

    - FTTH pre-installation,

    - Filed installation,

    - 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.

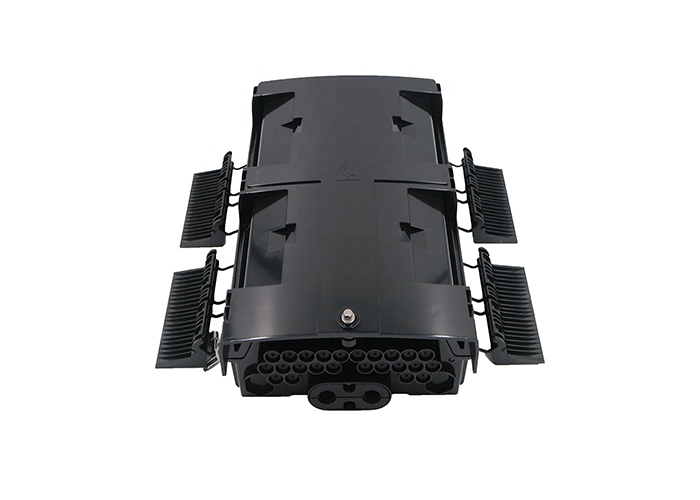

    Product photo:

    Ordering information:
    ItemCapacitySplitterConnectorAdapterLogo
    KCO-NAP-0424B16 cores1*2SC/UPCSC/UPCKCO
    1*4SC/APCSC/APCcustomized
    1*6FC/UPCFC/UPC
    1*8FC/APCFC/APC
    1*12ST/UPCST/UPC
    1*16LC/UPCLC/UPC
    .........

    OEM/ODM Service:
    If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

    Packing:
    According to Stardard Export Packing.
    Carton box, wooden box, wooden pallet.


    Shipping:
    - International express such as UPS, TNT, DHL, etc
    - Internatioal air: CA, AA, EA, etc
    - By sea
